SPROLINK VF1
3.150,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

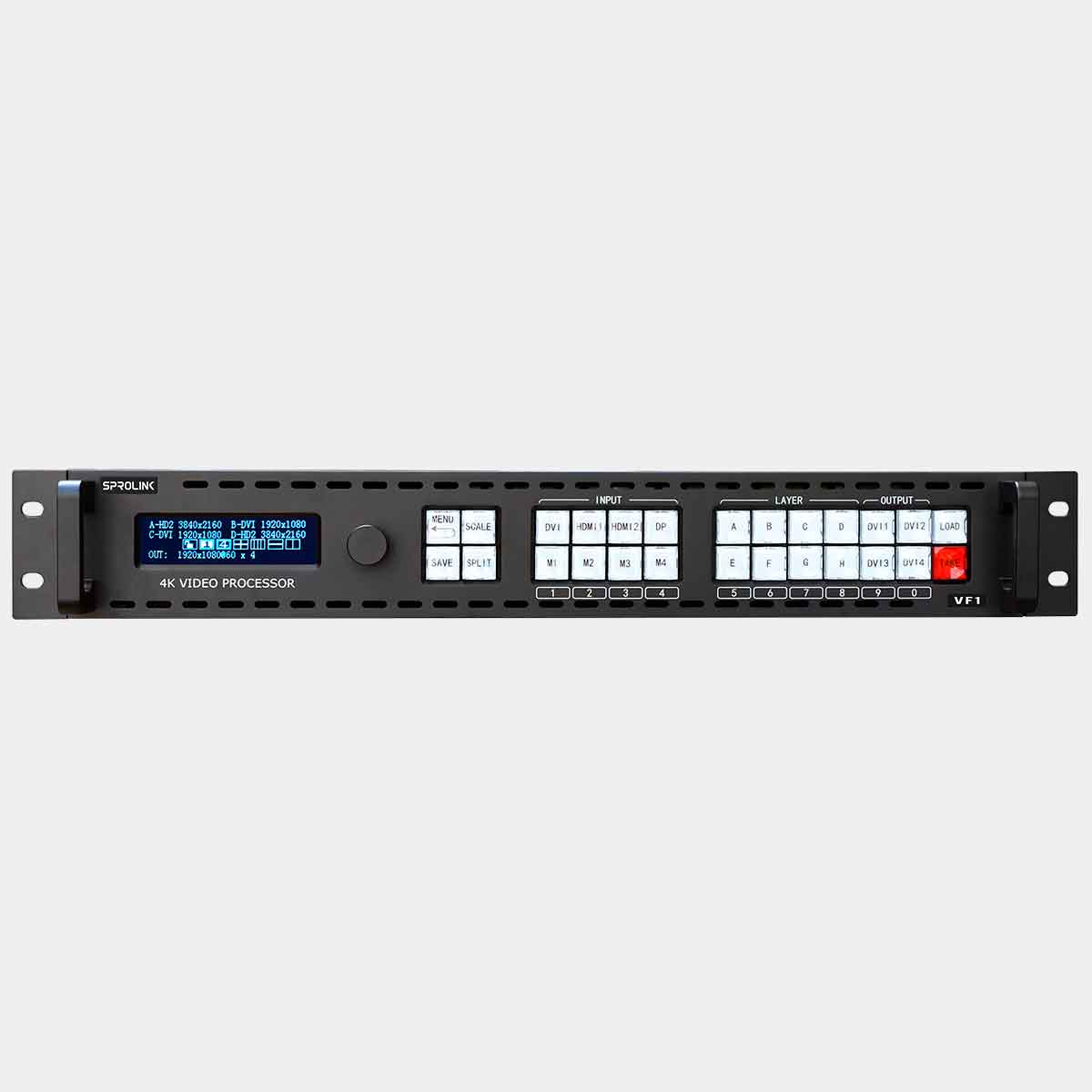

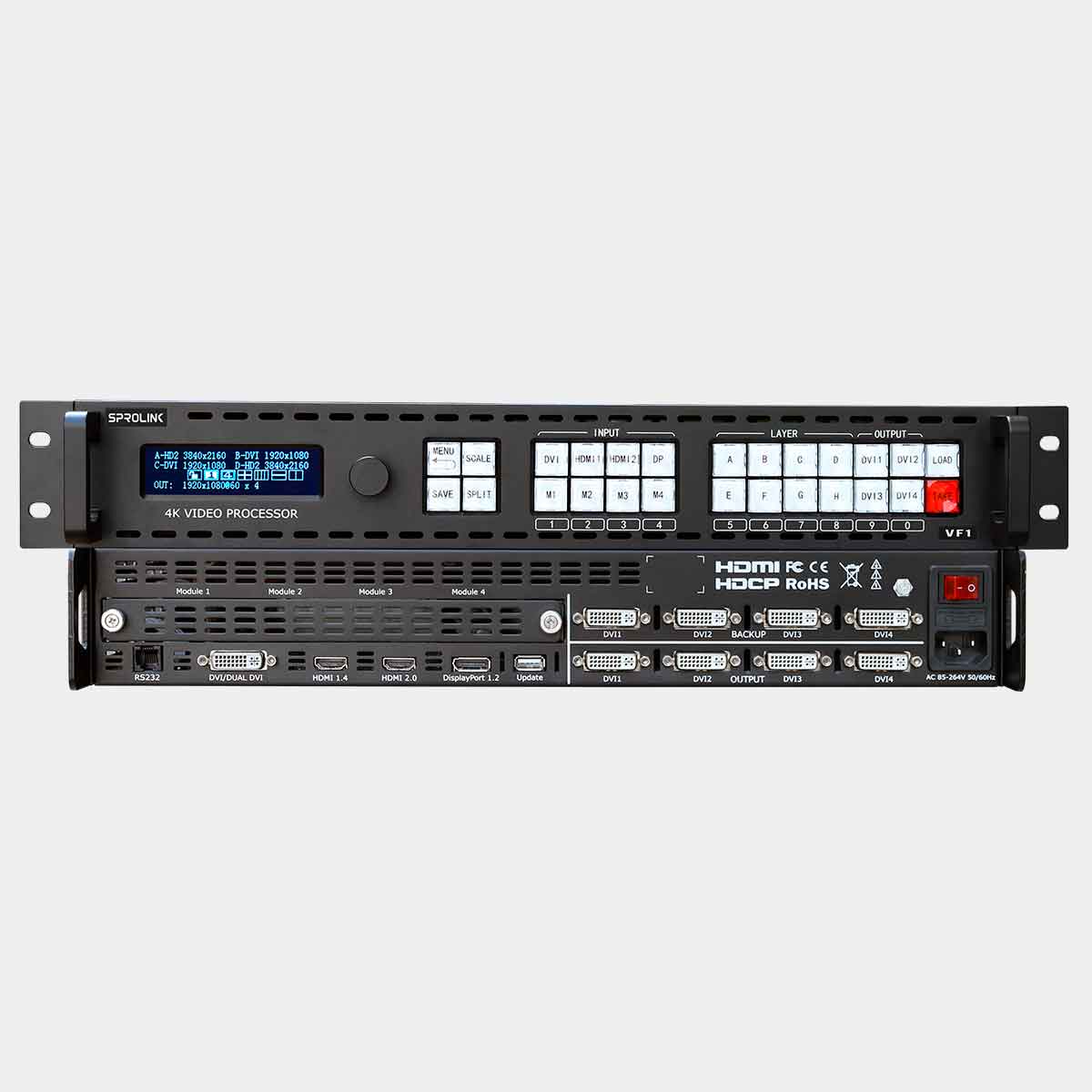

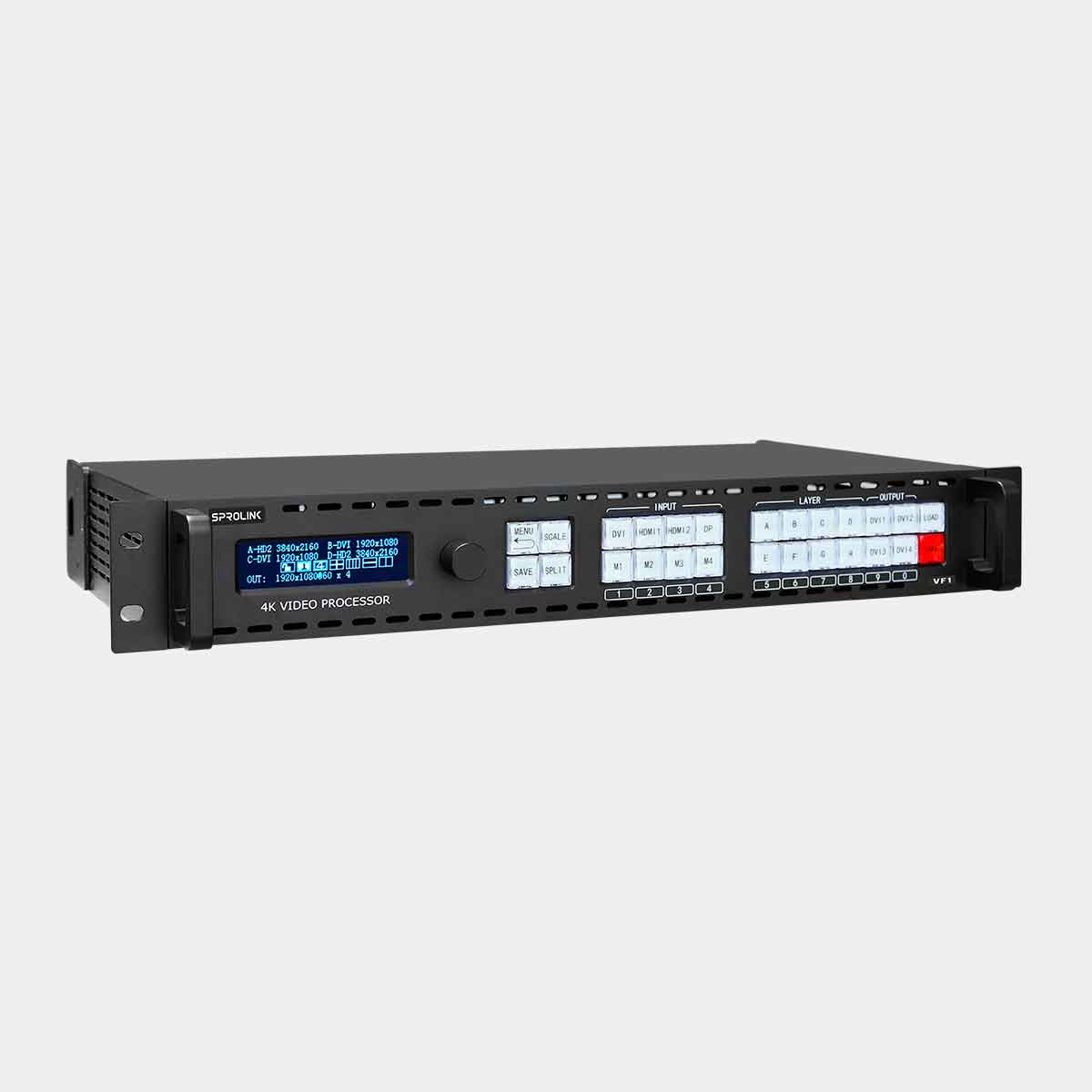

SPROLINK VF1
4K@60 4:4:4 10bit LED video processor with 4 DVI outputs
Flexible Split with Ultra-wide Range
4K@60 4:4:4 10bit LED video processor with 4 DVI outputs
Flexible Split with Ultra-wide Range
4K x 1K Preview Seamless Switch
8K x 1K horizontal split, 2K4K Vertical split
4K x 2K Pixel to Pixel Split Seamless Switch
Display different image on 4 LED screens
Input formats up to 4K@60Hz 4:4:4
Seamless switching between any source
Independent output routing
Support EDID Management
Pixel by Pixel Split
Flexible split with Ultra-wide range
Output Backup
Support Open API
PIP from any source in any position and size
4K@60Hz Input
Support UHD 4K@30Hz,4K@60Hz input.
Dual Link DVI / HDMI 1.4 / HDMI 2.0 / DP 1.2 Inputs compatible.
Output Backup

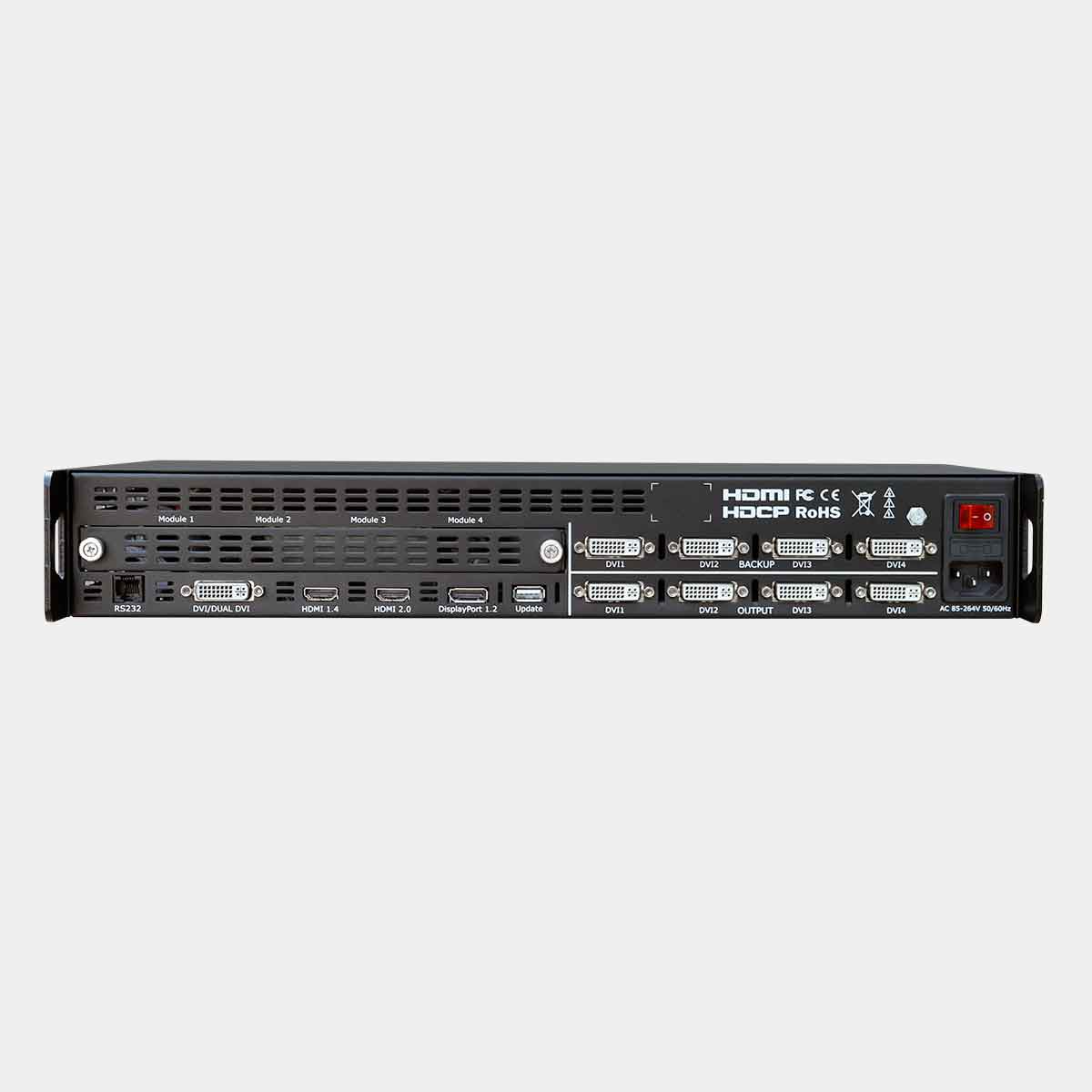

4 x DVI output and 4 x Backup DVI output with independent decoder chip; Sending card cascade for high resolution LED display or system backup.
Independent output mode, more than four ordinary video processors
Support independent control on 4 outputs, ideal for multi-sender or multi pixel pitch LED display solutions.
8K1K( 8192×1152 )
LED screen 4
Ultra-wide range split, any channel PIP
Support 8k1k(8192×1152) or 2K4K(2160X3840) by single unit.
Seamless Switching
Support any source preview for two port split. Use TAKE to enable Seamless switch on PGM display; Support seamless switch and fast switch on 4 port split.
Input interface
Output interface
Control interface
Input resolution
Output resolution
Supoort protocol
Input voltage Max power
TEMP Humidity
Weight
Size
| standard | 1 × DVI/Dual-DVI（DUAL-DVI 4K@30Hz） 1 × HDMI 1.4（4K@30Hz） 1 × HDMI 2.0（4K@60Hz） 1 × DisplayPort 1.2（4K@60Hz） |
| optional | 2 × optional module * module supoort 2 input : DVI/SDI/HDMI/DP/USB/VGA/YPbPr/CVBS * module free combination |
| standard | 4 × DVI 4 × DVI backup |
| RS232USB | Open control protocol U disk upgrade |
| DualDVI | VESA:1024×768 | 1280×1024 | 1600×1200 | 1920x1080 | 1920x1200 | 2048x1152 | 3840x1080 | 3840x2160 |
| HDMI | SMPTE: 480i | 576i | 720p | 1080i | 1080p | 4K 1K | 2160p VESA: 1024×768 | 1280×720 | 1280×800 | 1280×960 | 1280×1024 | 1400×1050 | 1600×1200 |1920×1080 1920×1200 | 2048×1152 | 2560×1600 | 3840×1080 | 3840×2160 |
| DP | SMPTE: 480i | 576i | 720p | 1080i | 1080p | 4K 1K | 2160p VESA: 1024×768 | 1280×720 | 1280×800 | 1280×960 | 1280×1024 | 1400×1050 | 1600×1200 |1920×1080 1920×1200 | 2048×1152 | 2560×1600 | 3840×1080 | 3840×2160 |
| SDI | 480i | 576i |720p | 1080i | 1080p | 1080psf |
| VGA | VESA: 800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920×1080 | 1920×1200 |
| YPbPr | SMPTE: 480i | 576i | 480P | 576P | 720p | 1080i | 1080p |
| CVBS | SMPTE: 480i | 576i |
| Refreshrate | 23.98/24/25/29.97/30/50/59.94/60Hz |
| SMPTE | 720p | 1080p |
| VESA
2 Split 4Split |
1024×768 |1280×1024 | 1400×1050 | 1600×1200 | 1920×1080 |1920×1200 | 2048×1152| 2560×816 1024×1280 | 1152×1152 |1280×1280 |1536×1536 |2560×1024 | 2560×1600 | 3840×540 |3840×1080* 3840x1080 | 1920x2160 | 7680x540 | 1536x3072 | 7680x1080 * 3840x2160 | 7680x1080 | 1920x4320| 15360x540 | 1536x6144 |3072x3072 | 15360x1080*| 7680x2180*| 3840x4320* @Support point-to-point custom resolution@*represent 30Hz |
| SDI | SD-SDI、HD-SDI、3G-SDI |
| VGA | VGA–UXGA |
| HDMI | 1.3、1.4、2.0 |
| DP | 1.1、1.1a、1.2 |
| DVI | DVI 1.0、DVI 1.1 |
50/60Hz
20W
-25℃~55℃（typical valua:25℃）
20%~90%
3.0kg(Equipment Weight)
6.6kg(Transport Weight)
480mm x 320mm x 67mm (Equipment Size) 540mm x 380mm x 140mm (Transport Size)
- VF1 Video Processor
- User manual
- Limited 1-Year Warranty
