SPROLINK LV1
2.150,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

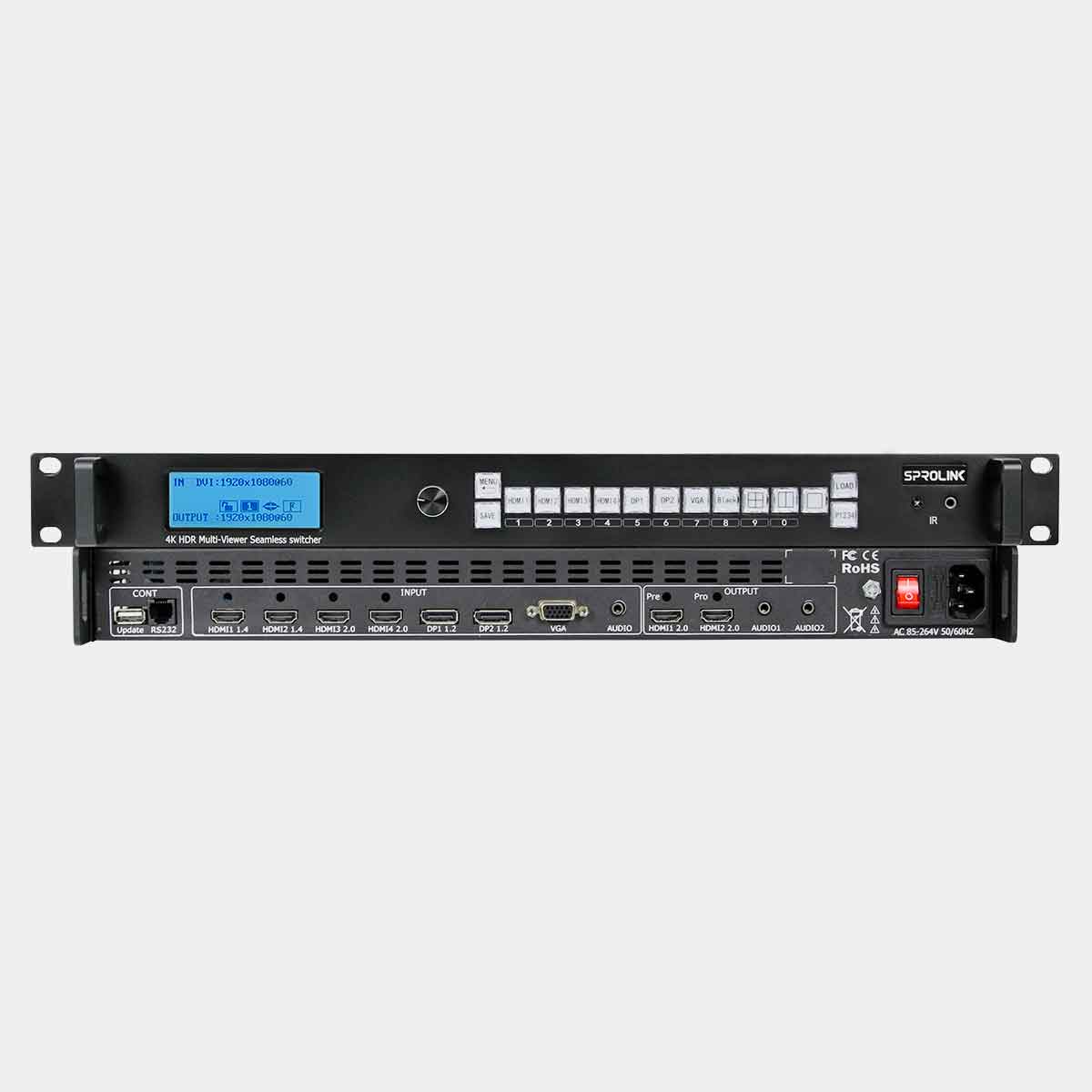

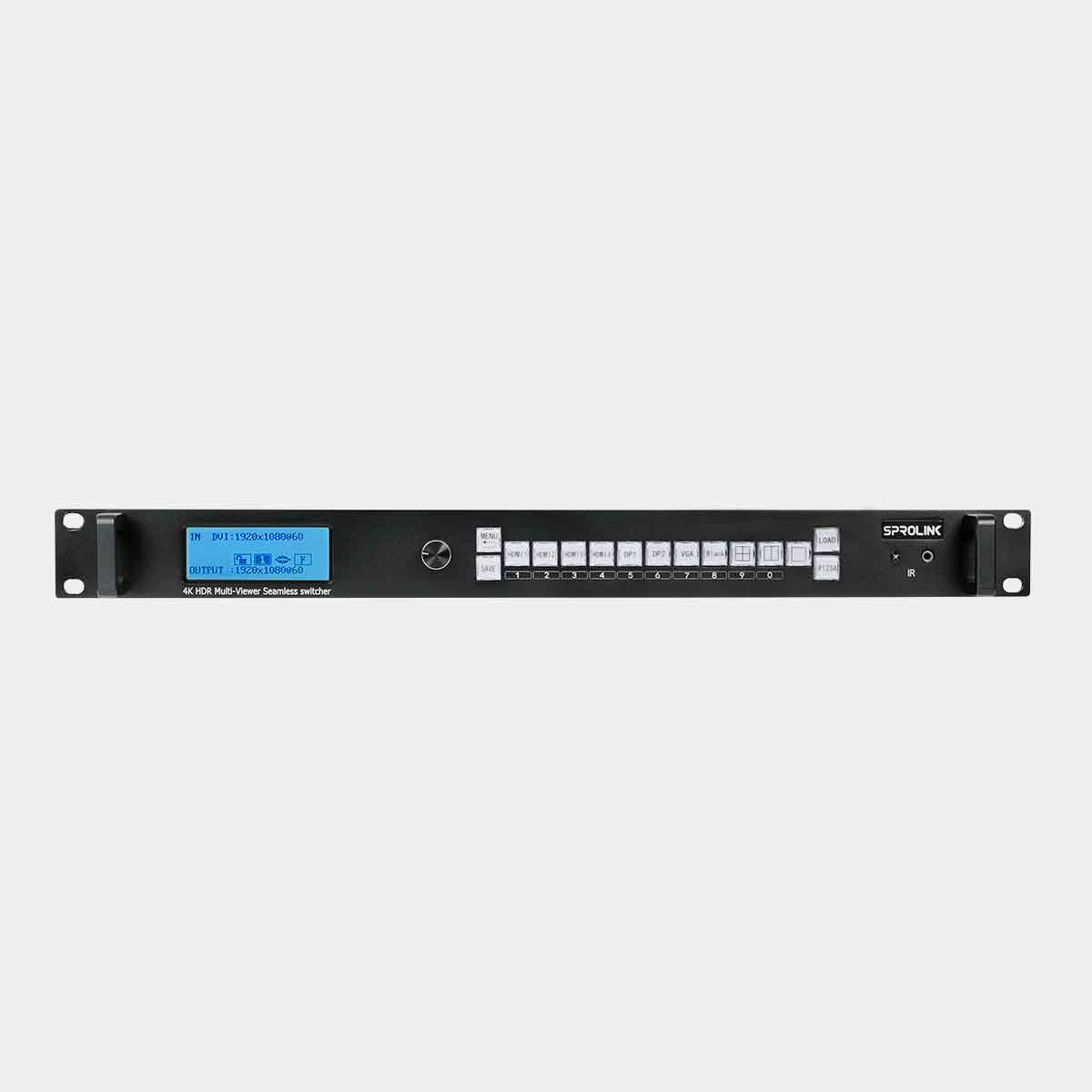

SPROLINK LV1
4K multi-viewer processor with HDMI 2.0 output and HDR
4K@60Hz 4:4:4 10bit Processing
4K Multi – viewer Seamless switcher
4K multi-viewer processor with HDMI 2.0 output and HDR
4K@60Hz 4:4:4 10bit Processing
4K Multi – viewer Seamless switcher
Flexible Remote Controller, Extendable Infrared Receiving
As a compact and handy remote controller and extendable Infrared receiver, it is easy to operate remotely and wire in engineering and installation making the control more flexible and user-friendly for end-users.
Intuitive Software Operation & API Control
Intuitive software operation supports model & channel fast switch and customized save and load.
The API control is better for system integration and open control.
Multi- Image Segmentation
Featured 4 images segmentation as 4K multi-image display and fast layout are supported which realize any 4k input video with 4 images, 2 images and single image display.
- Support DP1.2 / HDMI2.0 4K@60Hz Input
- Support HDMI2.0 4K@60Hz Output
- Support 4 Images Segmentation Function
- Support Remote Control & Software Control
- Support Embedded Audio Decoder, Video and Audio Synchronization
- Support 420/422/444 Video Format
- Support Any 4k Preview Input
- Support API Control
Flexible Remote Controller, Extendable Infrared Receiving
As a compact and handy remote controller and extendable Infrared receiver, it is easy to operate remotely and wire in engineering and installation making the control more flexible and user-friendly for end-users.
Intuitive Software Operation & API Control
Intuitive software operation supports model & channel fast switch and customized save and load. The API control is better for system integration and open control.
Multi- Image Segmentation
Featured 4 images segmentation as 4K multi-image display and fast layout are supported which realize any 4k input video with 4 images, 2 images and single image display
|

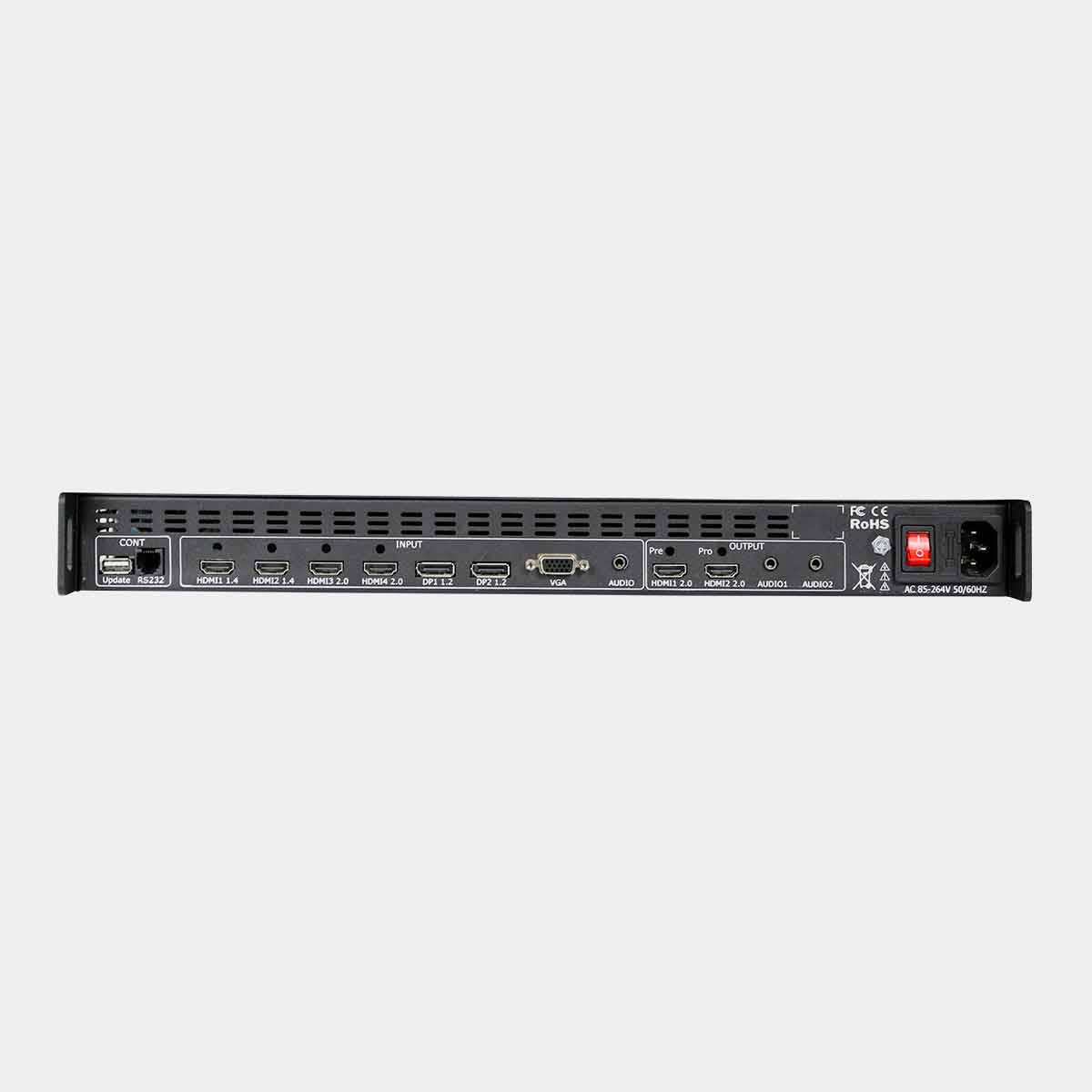

Input Interface |
Standard |
2 × HDMI 1.4(4K@30Hz) |
|
Optional |
1 × 3G/HD/SD SDI |
|
|
Output Interface |
Standard |
1 × HDMI 2.0(Main Ouput) |
|
Operation |
RS232 USB IR |
Open protocol control USB upgrade Remote control(optional), extend IR receiver(optional) |
|
Input Resolution |
HDMI |
SMPTE: 720p | 1080p | 2160p |
|
DP |
SMPTE: 720p | 1080p | 2160p |
|
|
VGA |
800×600 | 1024×768 | 1280×1024 | 1600×1200 | 1920×1080 | 1920×1200 |
|
|
Frame |
23.98/24/25/29.97/30/50/59.94/60Hz |
|
|
Output Resolution |
SMPTE VESA |
720p | 1080p 1920×1080 |1920×1200 | 2048×1152 | 3840×1080 | 3840×2160 | 4096×2160 |
|
Supoort Protocol |
HDMI |
1.3 | 1.4 | 2.0 |
|
DP |
1.1 | 1.1a | 1.2 |
|
|
VGA |
VGA-UXGA |
|
|
Input voltage |
AC 100~264V(Typical value10/220) 50/60Hz |
|
|
Max power |
20W |
|
|
TEMP |
-25°C~55°C(Typical value25°C) |
|
|
Humidity |
20%~90% |
|
|
Weight |
2.5kg(Equipment Weight)) 5.0kg(Transport Weight)) |
|
|
Size |
480mm x 320mm x 45mm (Equipment Size) 540mm x 380mm x 140mm (Transport Size) |
|
- LV1 Video Processor
- User manual
- Limited 1-Year Warranty
