Roland VP-42H Video Processor 4 x 1 HDMI
1.398,37€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
Roland VP-42H Video Processor 4 x 1 HDMI

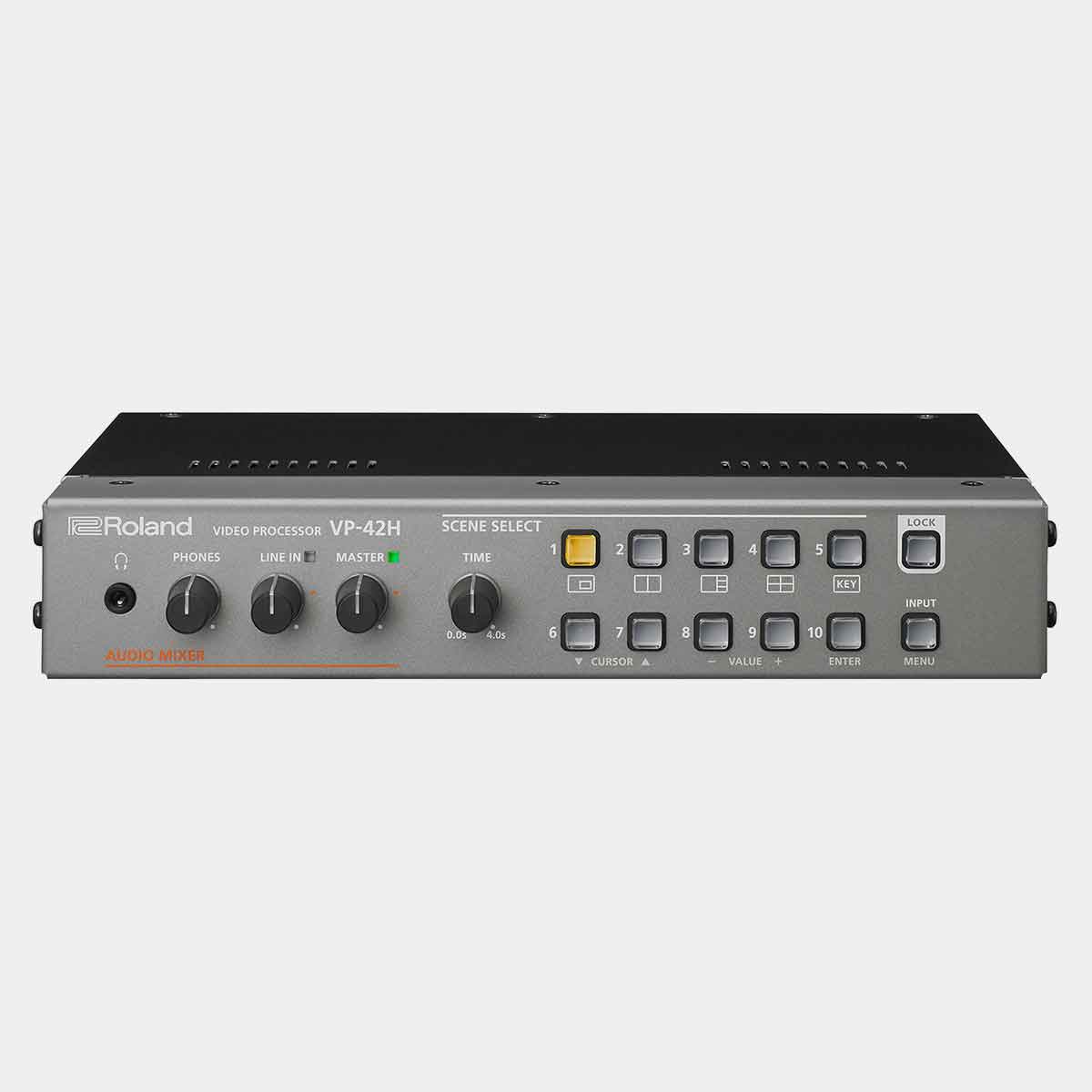

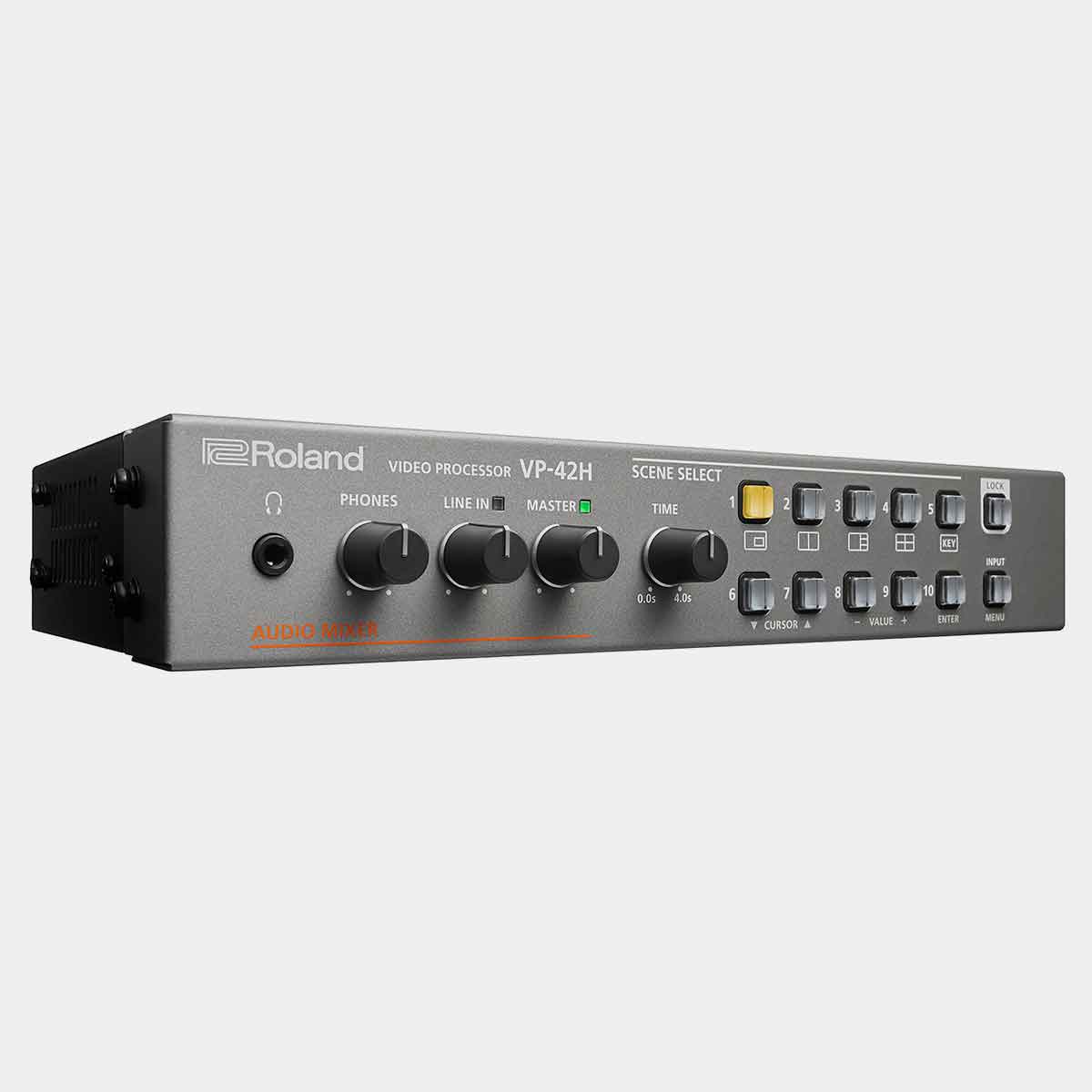

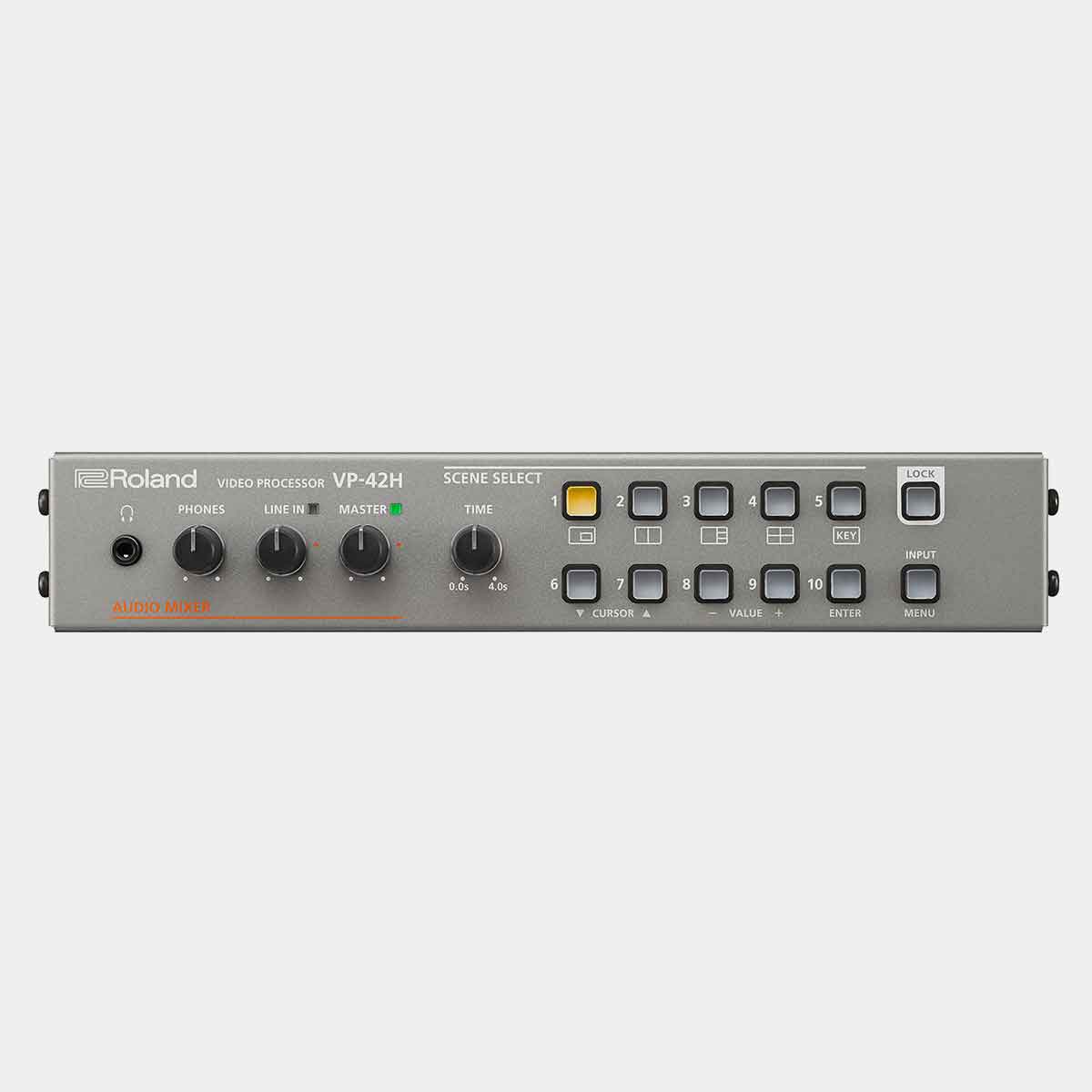

The VP-42H Video Processor 4 x 1 HDMI from Roland layers and arranges up to four HDMI sources to a single output. Suitable for multi-viewing, presentations, digital signage, and conferences, the VP-42H enables you to switch between preset, layered arrangements of your sources with the push of a button.
The VP-42H Video Processor 4 x 1 HDMI from Roland layers and arranges up to four HDMI sources to a single output. Suitable for multi-viewing, presentations, digital signage, and conferences, the VP-42H enables you to switch between preset, layered arrangements of your sources with the push of a button.
Use the VP-42H’s fluid, motion-based switching to create eye-catching visuals with each upcoming scene automatically positioned and resized in a customizable window. This processor supports multiple video resolutions up to 1080p60, includes a keyer, and accepts still image and logo input via a USB port.
Layering features include three PiP functions plus one PiP with a keyer. Use the VP-42H’s web-based browser to scale, crop, zoom, and position input sources by clicking and dragging on your tablet or laptop. Audio features include an internal mixer, RCA outputs for de-embedding audio from your HDMI sources, and RCA inputs for embedding external audio into your HDMI output.
- Combine up to four HDMI video sources to a single output
- Supports multiple video resolutions up to 1080p60
- Connect and switch multiple resolutions simultaneously
- Motion Scene Switching creates fluid transitions between complex screen compositions
- Browser-based network control for remote switching and simple set-up
- Internal audio mixer, RCA inputs/outputs for embedding and de-embedding audio
- Keyer function enables overlays and advanced compositions
- Input still photos and logos via USB
| Processing | 4:4:4 (Y/Pb/Pr, RGB), 10-Bit 4:2:2 (Y/Pb/Pr), 10-Bit |

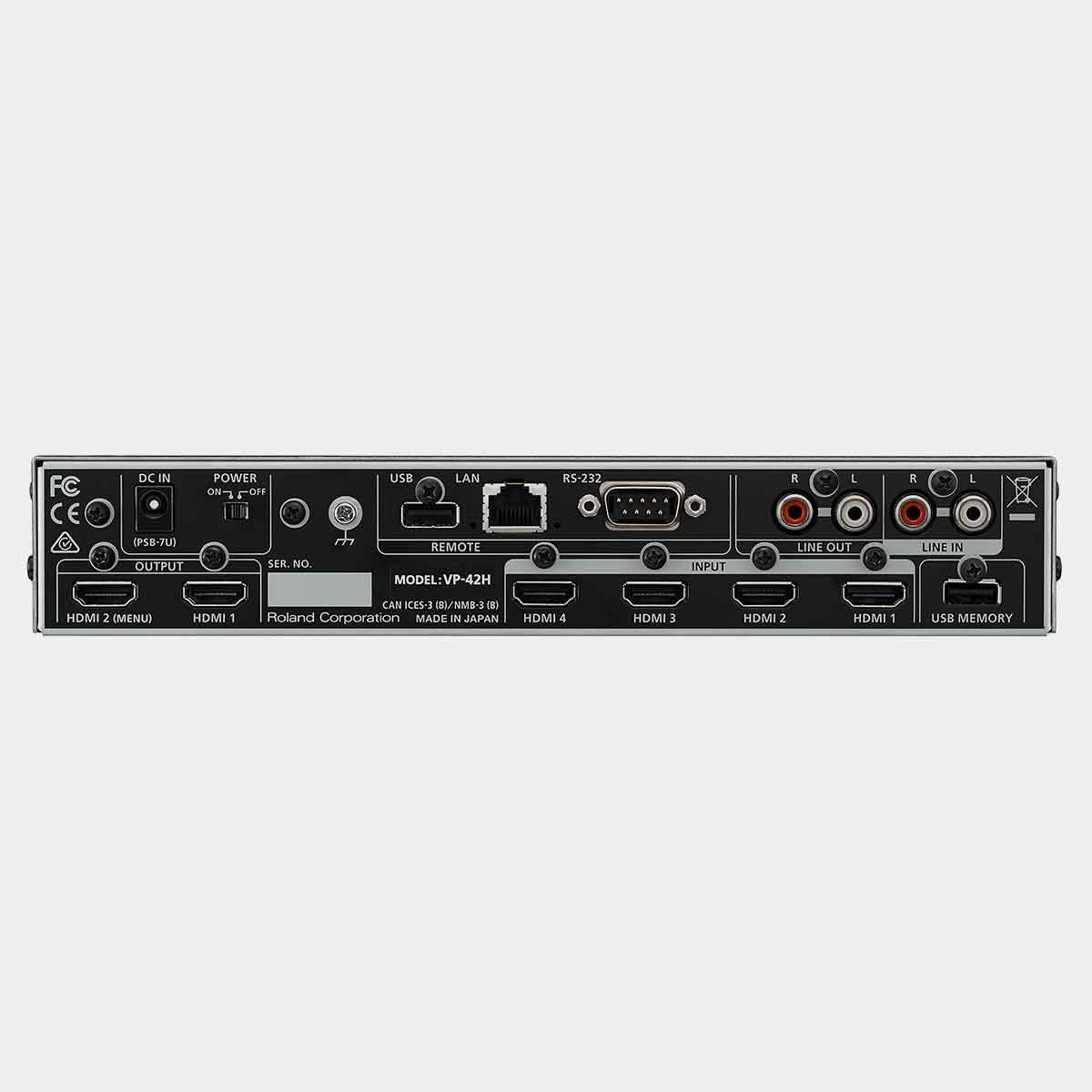

| Input Connectors | 4 x HDMI Type A |
| Output Connectors | 1 x HDMI Type A (Program) 1 x HDMI Type A (Menu) |
| HDCP Compliant | Yes |
| Supported Formats & Resolutions | 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50 576p: 50* 576i: 50* 480p: 59.94* 480i: 59.94*1920 x 1200/60 RB, 1920 x 1080/60 1600 x 1200/60 1400 x 1050/60** 1366 x 768/60** 1280 x 1024/60**, 1280 x 800/60**, 1280 x 720/60** 1024 x 768/60** 800 x 600/60* |
| Effects | Layers: x 4 PiP with Keyer: x 1 PiP: x 3 |
| Still Image Support | Internal Memory: x 1 Maximum Size: 1920 x 1200 Pixels Format: Windows Bitmap File (.bmp), 24 bpp, Uncompressed |
| Sample Rate | 48 kHz, 24-Bit |
| Input Connectors | 4 x HDMI Type A 1 x RCA Stereo |
| Output Connectors | 2 x HDMI Type A* 1 x RCA Stereo 1 x 1/8″ / 3.5 mm Headphone Stereo |
| Input Level | -10 dBu (Maximum: +8 dBu) |
| Input Impedance | 15 kOhms |
| Output Level | Audio Output: -10 dBu (Maximum: +8 dBu) Headphone Output: 72 mW + 72 mW (32 Ohms) |
| Output Impedance | Audio Output: 1 kOhm Headphone Output: 10 Ohms |
| Format | HDMI: Linear PCM, 24-Bit, 48 kHz, 2-Ch |
| Processing | Mixer: 4-Ch (Maximum Delay: 250 ms) |
| External Connectors | Remote: 1 x RS-232, DB-9 (Male) LAN: 1 x RJ45 USB: 1 x USB Type-A (Future Expansion)USB Memory: 1 x USB Type-A |
| Functions | Scene Memory: x 10 Test Pattern Generator Test Tone Generator EDID Emulator |
| Power Supply | AC Adapter |
| Current Draw | 2.1 A |
| Power Consumption | 25 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions (WxDxH) | 9.5 x 4.9 x 1.7″ / 242 x 125 x 44 mm |
| Weight | 2.6 lb / 1.2 kg |
| Package Weight | 5.94 lb |
| Box Dimensions (LxWxH) | 14.3 x 10.45 x 6.5″ |
- Roland VP-42H Video Processor 4 x 1 HDMI

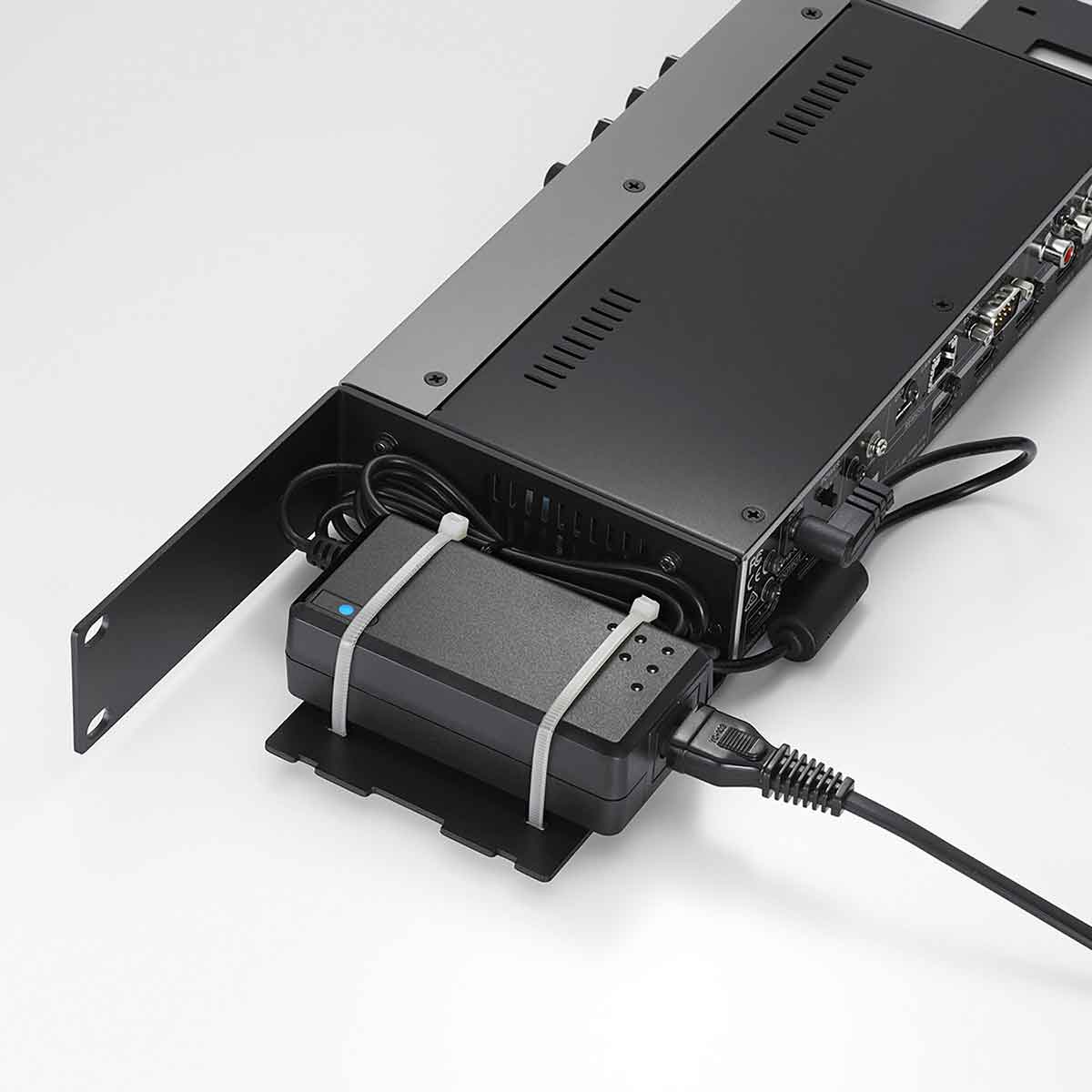

- AC Adapter
- Power Cord
- 4 x Rubber Feet

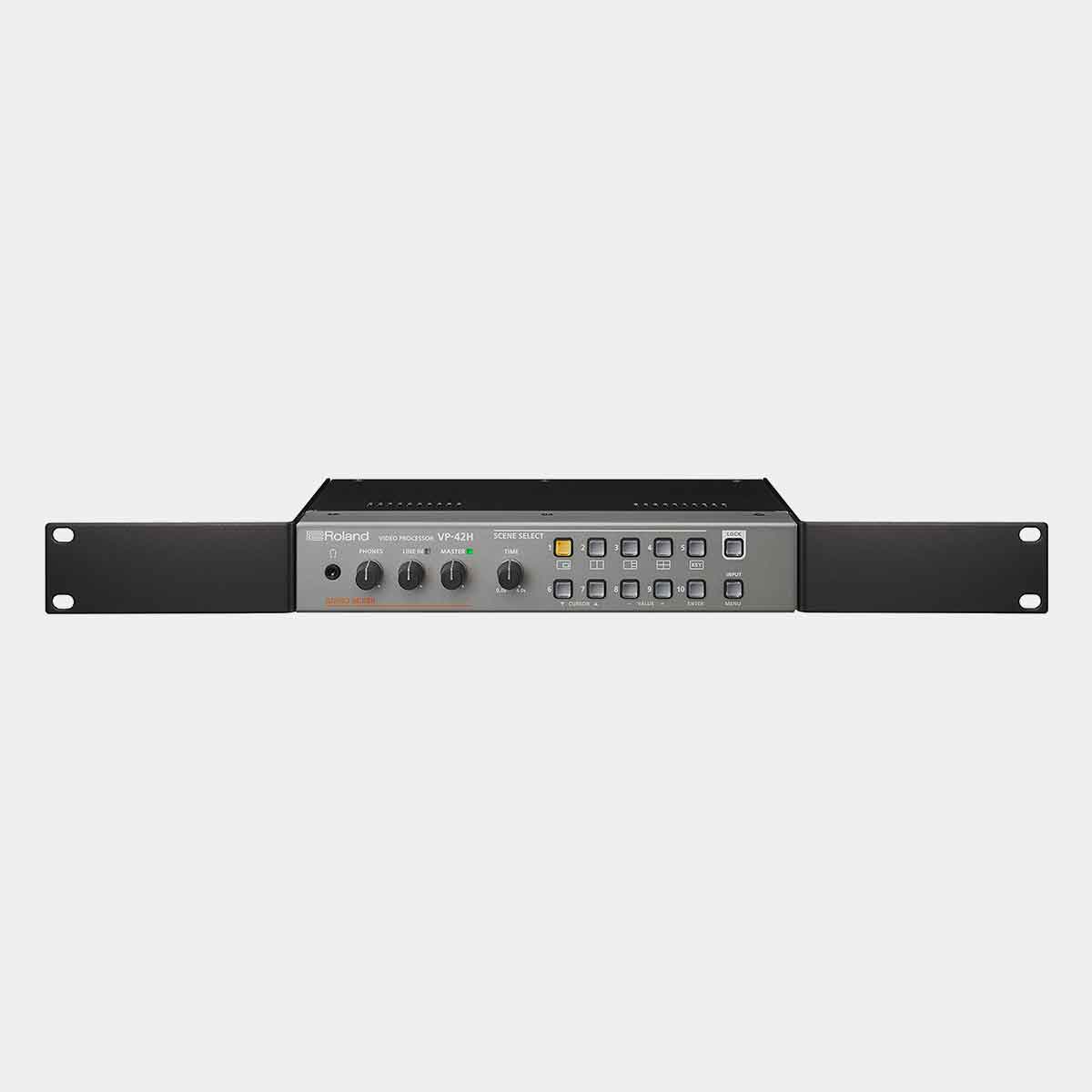

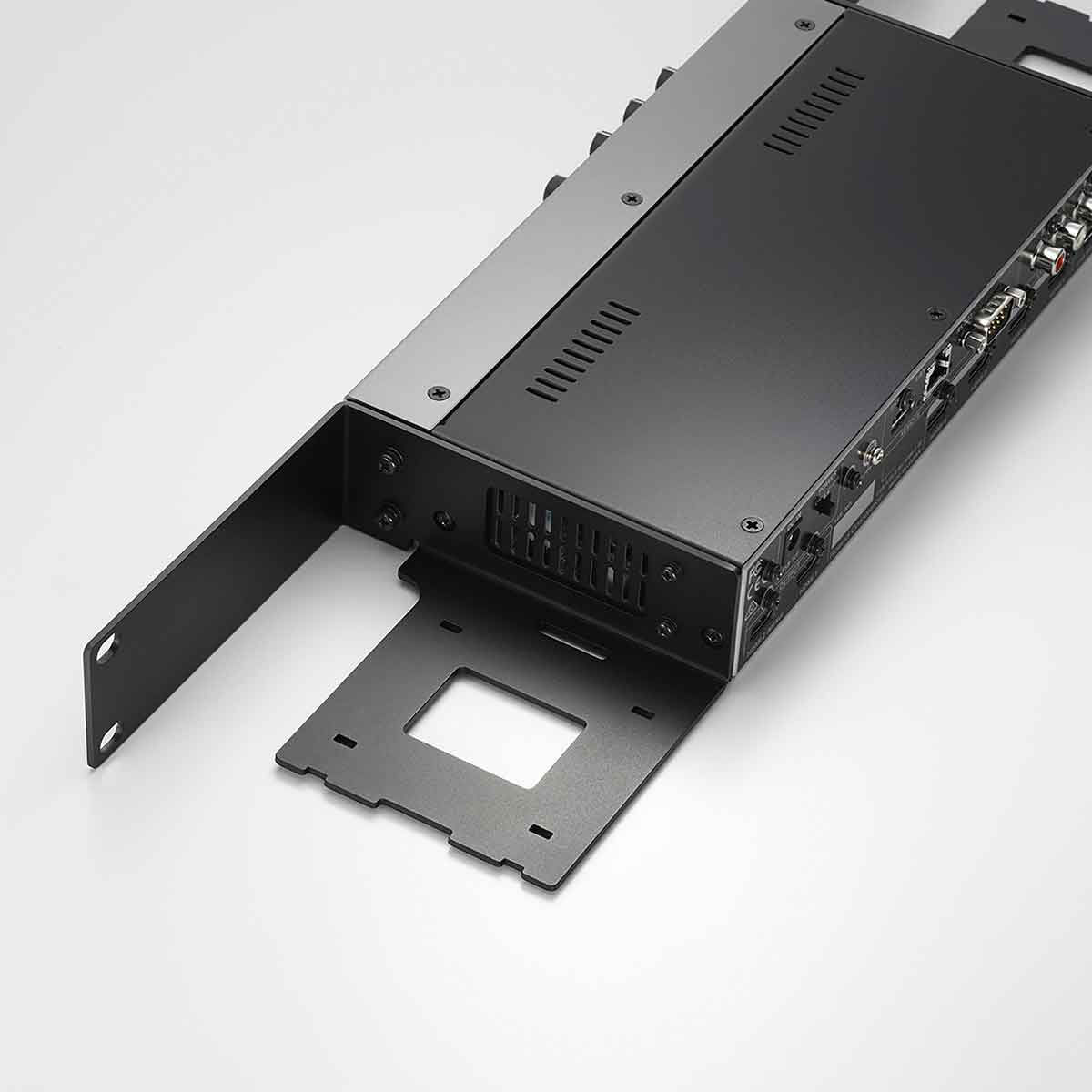

- Rackmount Angle Set
- Limited 1-Year Warranty
Specifications
Additional information
| Weight | 1,2 kg |
|---|---|
| Dimensions | 24,2 × 12,5 × 4,4 cm |
