SPROLINK MP1
1.650,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

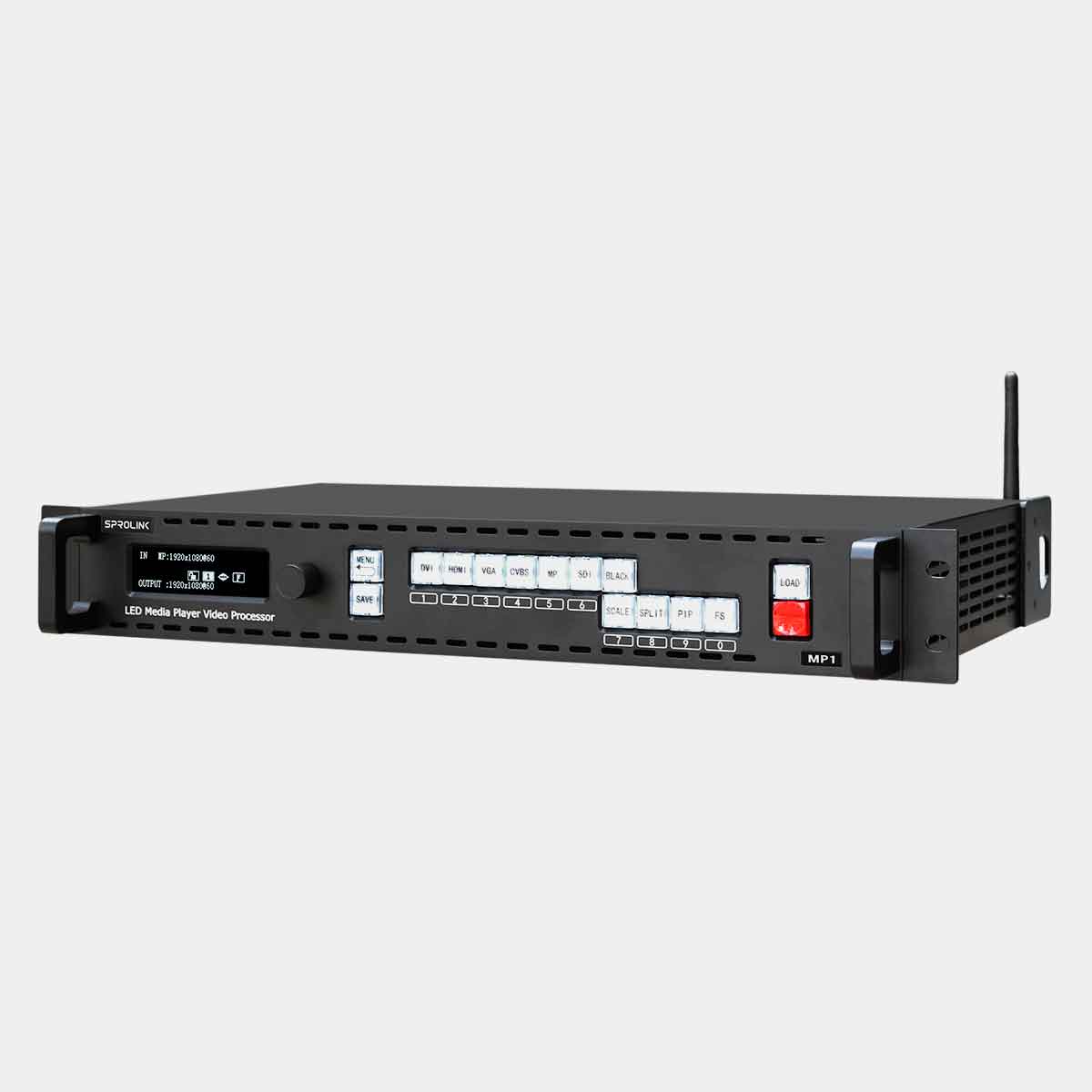

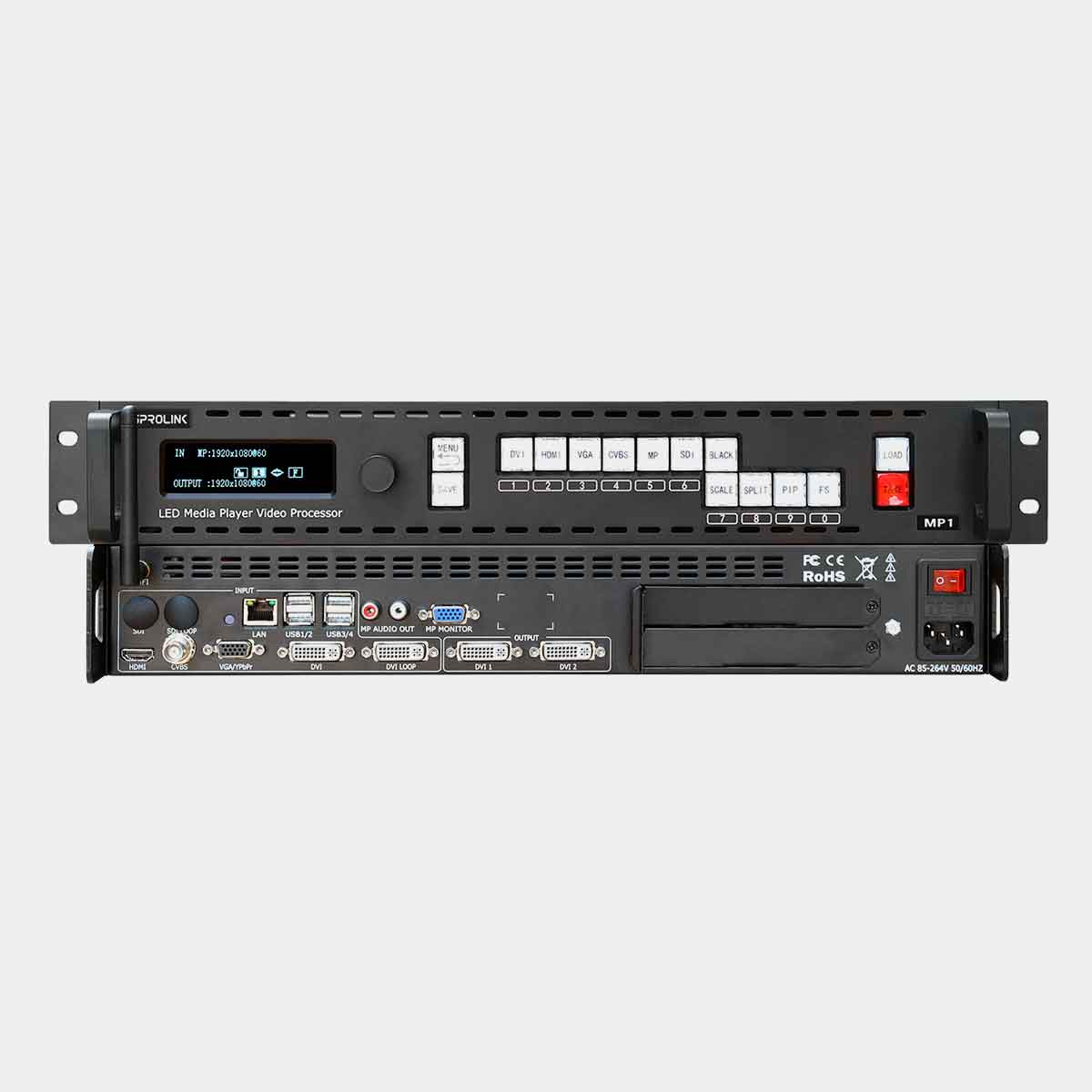

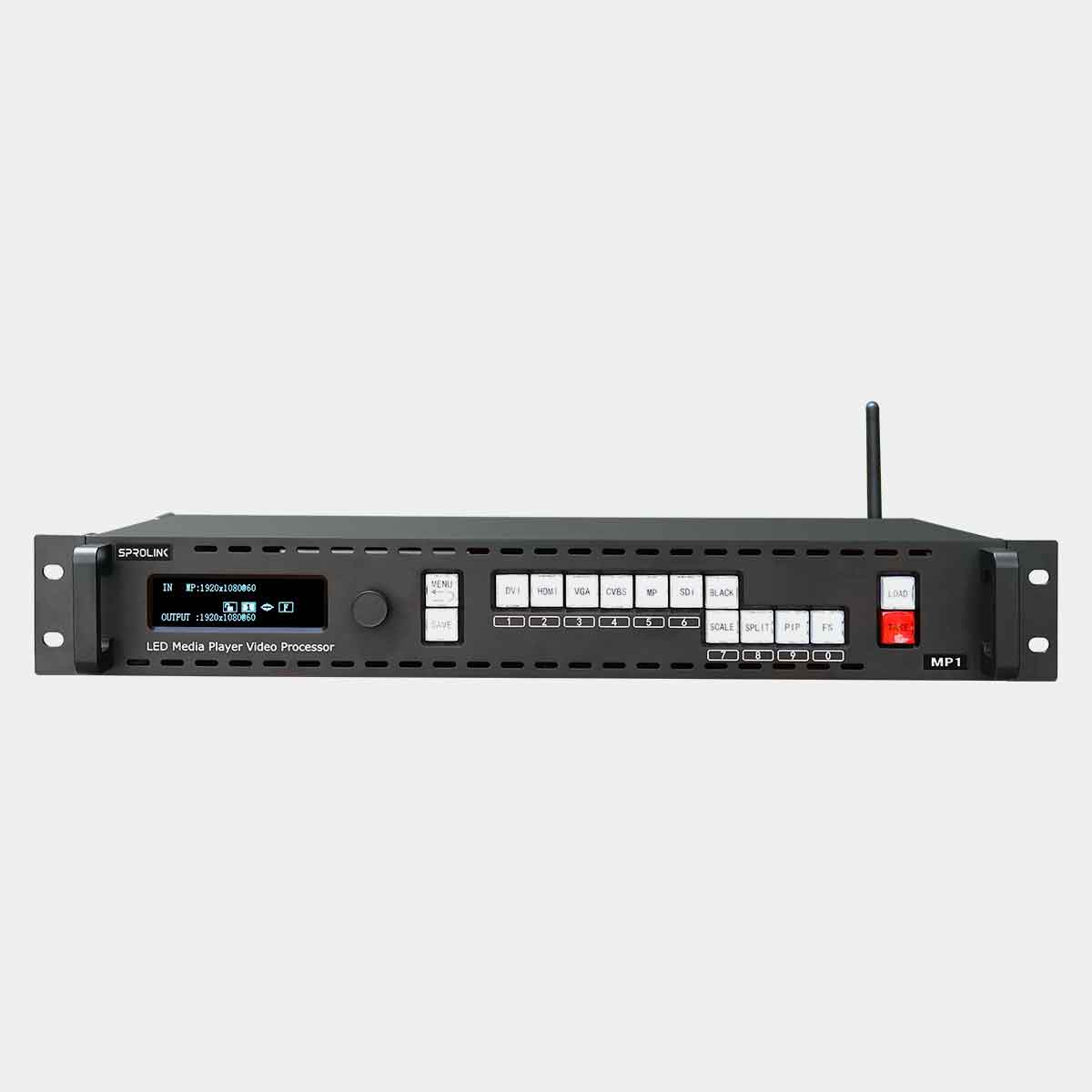

SPROLINK MP1
All-in-One video processor for LED digital signages
Specialised video processor and scaler for LED digital signages, built-in digital signage software, storage on board and even wireless Wi-Fi hot spot for remote control for option.
All-in-One video processor for LED digital signages
Specialised video processor and scaler for LED digital signages, built-in digital signage software, storage on board and even wireless Wi-Fi hot spot for remote control for option.
Built in digital signage software and storage
Able to upload on board videos, graphic images and rolling overlay text via the MP1 digital signage software platform. Unlimited layers of windows, ideal for the digital signage application.
Cascade Splicing
The MP1 supports Multi-device cascade to reach larger resolutions.
Using one MP1 as a switching control, and the other MP1 units can complete any type of splicing.
Billboard Application
Timing scheduled playback of programs for autonomous advertising display.
Broadcast Studio Integration
Upload Videos，images and rolling OSD via MP1 studio platform. Support unlimited playing windows ideal for advertising business.
Built-in 32G storage with editor software embedded, no need extra PC.
MP1 is a video processor with integrated multimedia player, built-in 32G storage: no need extra computer and video input source.
With embedded editor software, you can switch the signal source and do parameter setting for display directly.
APP remote control with display schedule management
|

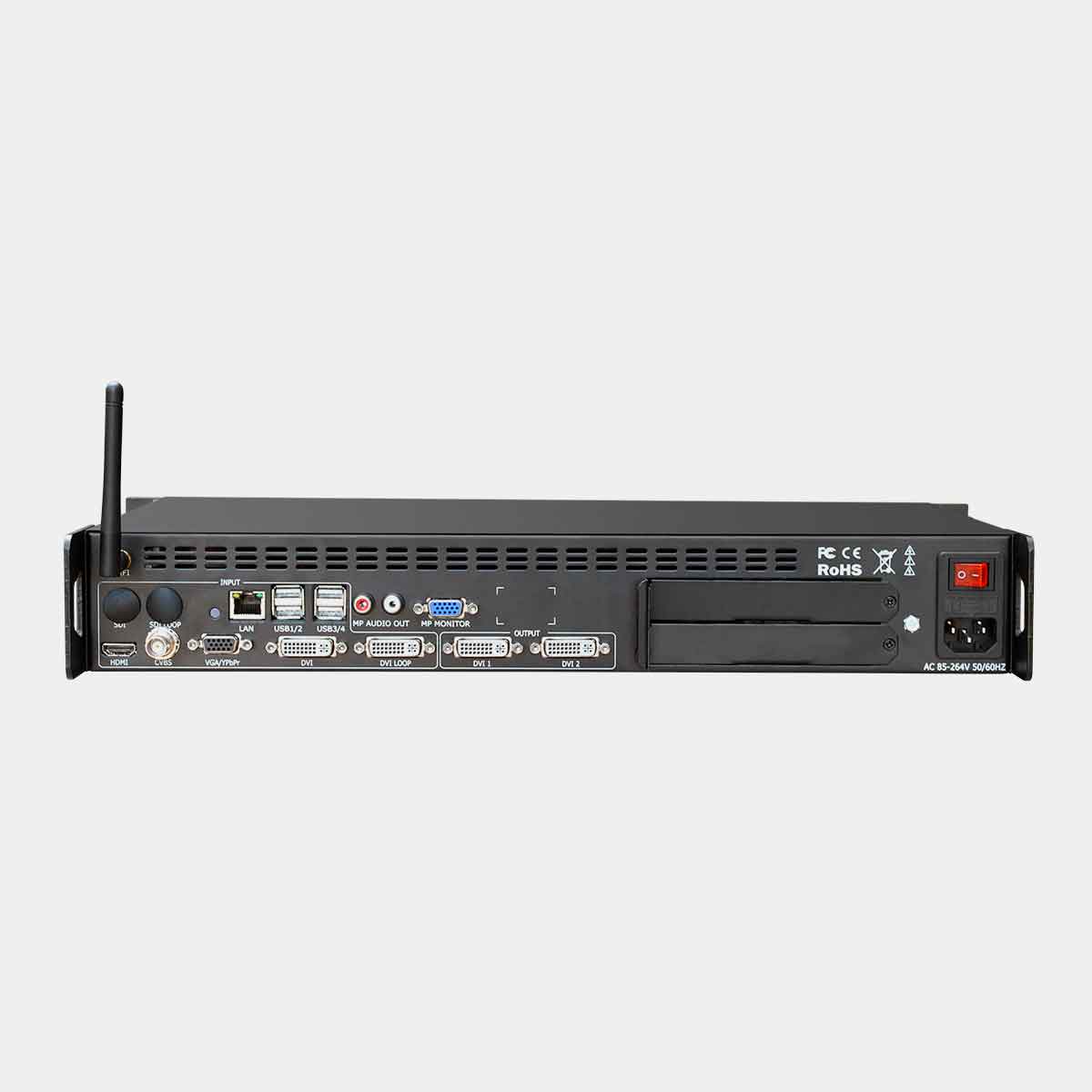

Input Port |
Standard |
1 × HDMI 1.3 1 × DVI 1 × CVBS 4 × USB |
|
Optional |
1 × SDI |
|
|
Output Port |
Standard |
2 × DVI(main output) |
|
Operation |
Standard |
1 × RJ45(port) |
|
1 × WIFI(hotspot) |
||
|
Input Resolution |
DVI HDMI VGA YPbPr CVBS SDI |
VESA: 800×600 | 1024×768 | 1280×1024 | 1600×1200 | 1920×1080 | 1920×1200 | 2048×1152 SMPTE: 480i | 576i | 720p | 1080i | 1080p VESA: 800×600 | 1024×768 | 1280×1024 | 1600×1200 | 1920×1080 | 1920×1200 | 2048×1152 SMPTE: 480i | 576i | 480P | 576P | 720p | 1080i | 1080P |
|
Output Resolution |
SMPTE VESA |
720p | 1080p |
|
Support Standard |
DVI HDMI VGA CVBS SDI Refresh rate |
DVI 1.0 |
|
Input Voltage |
AC 100~264V(Typical Value110/220) 50/60Hz |
|
|
Maximum Power |
35W |
|
|
Temperature |
-25°C~55°C(Typical Value25°C) |
|
|
humidity |
20%~90% |
|
|
Weight |
4.5kg(Equipment Weight) 6.0kg(Transport Weight) |
|
|
Size |
480mm x 320mm x 67mm (Equipment Size) 540mm x 380mm x 140mm (Transport Size) |
|
- MP1 Video processor
- User manual
- Limited 1-Year Warranty
Specifications
Additional information
| Weight | 4,5 kg |
|---|---|
| Dimensions | 48 × 32 × 6,7 cm |
