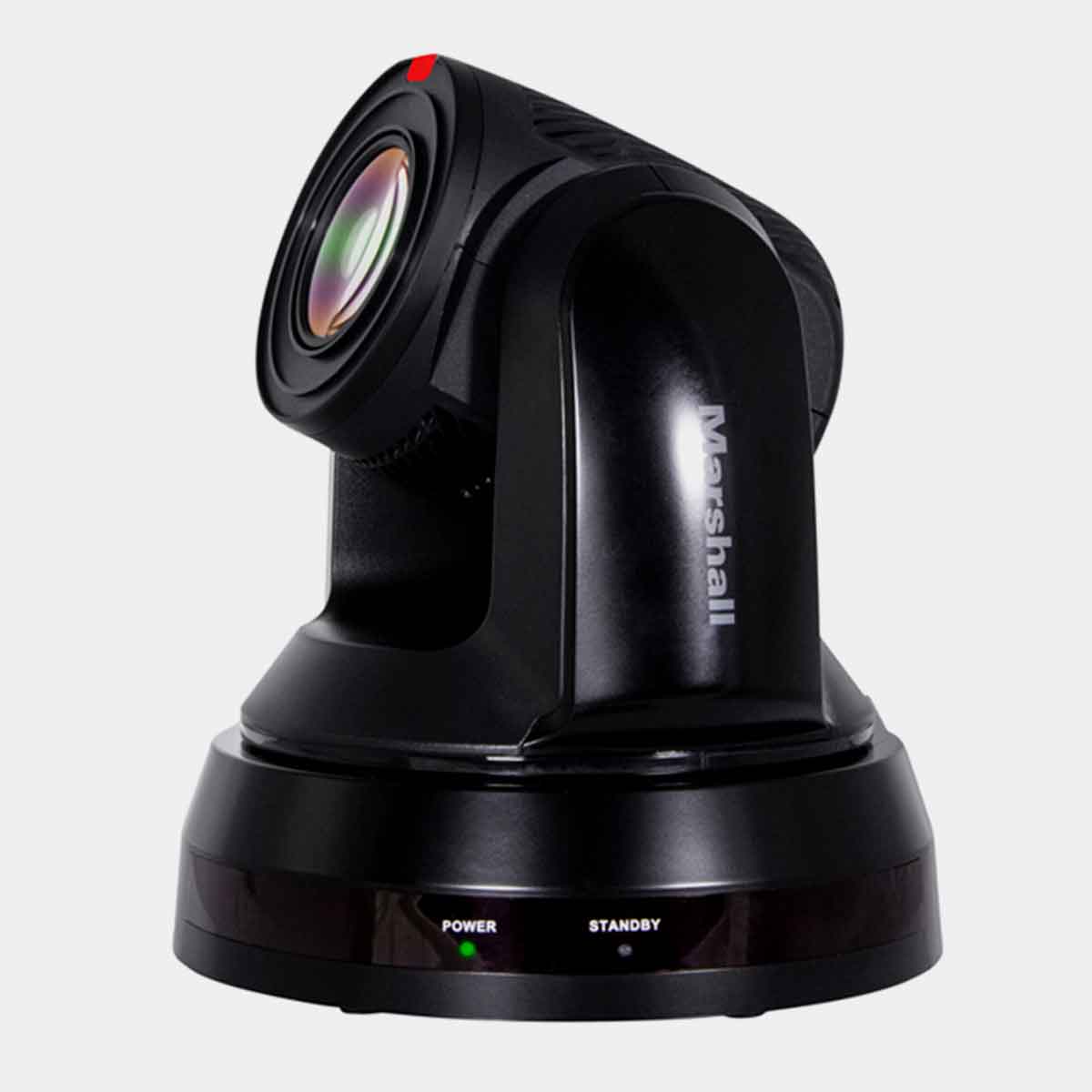

Marshall CV630-IPW – 30x UHD30 IP (HEVC) PTZ Camera
2.390,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
CV630-IPW - 30x UHD30 IP (HEVC) PTZ Camera
The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.
At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5″ sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.
The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.
High Performance Video Output
At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5″ sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.
Versatile Camera Positioning
The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.
Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
Flexible Control Options
The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.
Additionally, the CV630-IP is compatible with Marshall’s VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.
- 8MP 1/2.5″ sensor
- 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
- 3GSDI, HDMI, and IP simultaneous outputs
- Simultaneous pan, tilt, and zoom
- H.265 (HEVC) and H.264 (triple-stream) networked outputs
- RTSP / RTMP / MPEG-TS / Haivision SRT
- 3840x2160p, 1920x1080p, and 1280x720p
- Stereo audio input (mic or line level) embedding
- PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
- 340° pan, 120° tilt, and 30X zoom range
- Front tally light
Applications
The CV630-IP is suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications
| Sensor | |
| Sensor Type | 1/2.5″ 8 Megapixel |
| Resolution & Frame Rates | |
| UHD 3840x2160p | 25 & 29.97 |
| HD 1920x1080p | 25, 29.97, 30, 50 & 59.94/td> |
| HD 1280x720p | 25, 29.97, 50 & 59.94 |
| Input & Output Connectors | |
| Video Output Connectors | 1x 3G-SDI, 1x HDMI & 1x IP Ethernet |
| Remote Control | 1x RS-485 Interface, 1x RS-232 Input, 1x RS-232 Output |
| Power | 1x 12V DC Input |
| Lens | |
| Focal Length | 4.6mm to 135mm |
| Optical Zoom Ratio | 30x |
| Max. Aperture | f/1.6 to f/3.5 |
| Control Protocol | |
| Control Protocol | RS-232/RS-422 & VISCA over IP |
| General | |
| Power Input | 12V DC |
- 1x Marshall CV630-IP PTZ Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
- 1x RS-422 Connector
- 1x Metal Plate A
- 1x Metal Plate B
- 1x M3 Screws Set
Specifications
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 23,2 × 18,9 × 18,8 cm |
| Color | Black, White |
