BirdDog EYES P400 4K 10-Bit Full NDI PTZ Camera with Sony Sensor
3.795,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

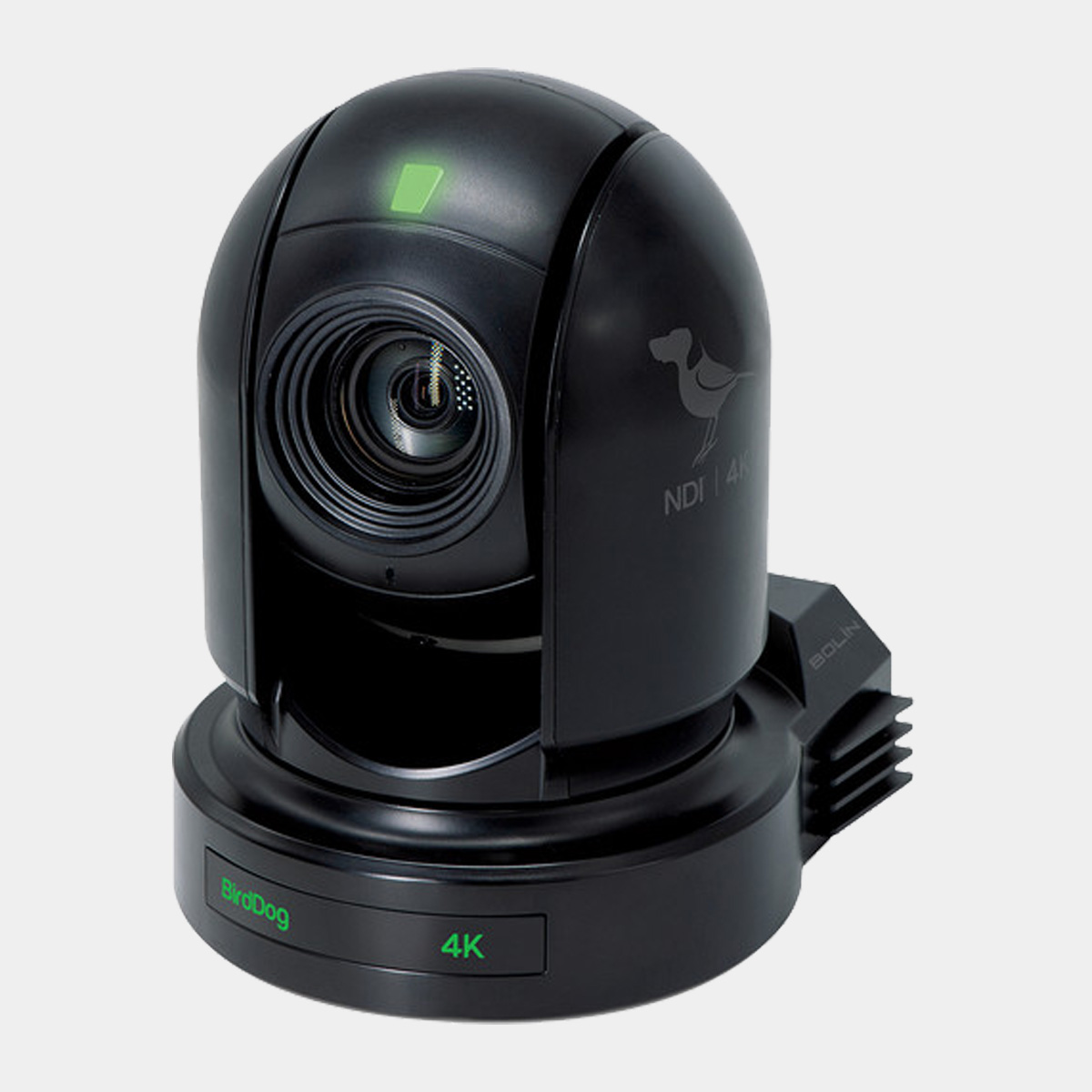

BirdDog EYES P400 4K 10-Bit Full NDI PTZ Camera with Sony Sensor
The black BirdDog EYES P400 is a full NDI 4K PTZ camera featuring up to 4K30 resolution, an 8.5MP Sony CMOS backlit sensor, pro-level color control, and simultaneous 6G-SDI, HDMI, and NDI output. When paired with a Birddog NDI encoder, the P400 provides native 4:2:2 decoding with a 4:2:0 option available for compatible receivers. Detailed 4K resolution and fast pan, tilt, zoom, and autofocus functions make the P400 ideal for fast-paced sports, larger indoor events, and other dynamic productions.
The P400 PTZ camera captures the action with a fast f/2.0 20x optical zoom lens plus 12x digital zoom, and 30x SRZ (Super Resolution Zoom) in 4K and 40x SRZ in HD. Remote control options for the P400 include NDI, VISCA over IP, RS-422/RS-232 options in SDI, and an included IR controller. The separately available BirdDog PTZ Keyboard can be used to control up to 255 cameras on a single network.
The P400 can be used with the downloadable BirdDog Central Lite NDI stream down-converting software, Cam Control camera settings control, and Comms Lite audio intercom software. Camera setting controls like color matrix, black levels, gamma, ND filters, and more give you the ability to create just the look you want and share it across multiple cameras. An IR cut filter automatically switches to night mode to produce clear images in low-light settings. Power the P400 via PoE or by using the included power adapter.
4K NDI Video with Pro Color Tools
Pro Color Tools
Advanced Low-Light Performance
NDI, 6G-SDI, and HDMI Output
Genlock
Precision Pan, Tilt & Zoom
Tally Light
Versatile Power Options
Control Choices
CAMERA
IMAGE SENSOR
1 / 2.5 inch CMOS 8.5MP
LENS
4.4-88.4mm
OPTICAL ZOOM
20x
SRZ (Super Resolution Zoom)
30x in 4K, 40x in Full HD
HORIZONTAL ANGLE OF VIEW
70.2° (W) – 4.1° (T)
APERTURE
F2.0 (W) – F3.8 (T)
MIN. ILLUMINATION
Color: 0.4lux (1/30s, 50%, High Sensitivity mode On), 1.6lux (1/30s, 50%, High Sensitivity mode Off), 0.06lux(1/4s(1/3s),50%, High Sensitivity mode On)
SHUTTER SPEED
1/1 – 1/10000s
FEATURES
Defog (Auto, 3 levels), Visibility enhancer, Black & White, E-Flip, Mirror, Colour enhancement, Black level, gamma, Sat/Hue Adjust, HLC, Colour Bar
WDR
YES (130dB) – ND Filter: YES
IMAGE STABILIZER
YES
COLOR GAIN
Yes (16 step)
COLOR HUE
Yes (16 step)
GAMMA
Standard, Straight, 512 pattern
GAMMA LEVEL
Yes (72 step)
BLACK LEVEL
Yes (97 step) – Flicker Cancel: Yes
NOISE REDUCTION
On/Off (level 5 to 1/Off, 6 steps), 2D/3D
S/N RATIO
≥50db
FOCUS
Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit
WHITE BALANCE
AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto）
EXPOSURE
Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE
BACKLIGHT COMPENSATION
YES
MECHANICAL
PAN MOVEMENT
Horizontal: ±175 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S)
TILT MOVEMENT
Vertical: +90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜50°/S)
PRESET POSITIONS
128 Speed adjustable: Up to 150°/S, 6 presets on remote controller)
ENVIRONMENTAL
Indoor
OPERATING TEMPERATURE
-10 – +40 (°C)
OPERATING HUMIDITY
≤80%
VIDEO INTERFACE
VIDEO OUTPUT
NDI/HDMI/6G-SDI
4K VIDEO FORMATS
4Kp 30, 29.97, 25, 23.98, 24
HD VIDEO FORMATS
1080p 60, 59.94, 50, 29.97, 25 1080i 60, 59.94, 50 • 720p 60, 59.94, 50, 29.97, 25
AUDIO I/O
3.5mm Audio In (Mono)
3.5mm Audio Out (Stereo)
CONTROL INTERFACE
IP PTZ CONTROL
NDI Control (auto configuring), VISCA Over IP
SERIAL PTZ CONTROL
2x RJ45: RS232 / RS422 / RS485 Connectors
SERIAL CONTROL PROTOCOL
VISCA / Pelco D
POWER & DIMENSIONS
POWER INPUT
12v DC, PoE++ (IEEE 802.3bt)
MAX POWER DRAW
31.5W
DIMENSIONS
142x159x217mm
WEIGHT
2.7Kg
NETWORK
VIDEO COMPRESSION
Full NDI – i-frame high quality low latency NDI for production
NETWORK PROTOCOL
NDI – Discovery, configuration and control
WEB CONTROL INTERFACE
Full control via Web/Mobile UI including Scene presets
OPTIONAL MOUNTS
Ceiling mount, Wall mount
- BirdDog EYES P400 4K 10-Bit Full NDI PTZ Camera with Sony Sensor (Black)
- IR Remote Controller
- Power Adapter with Power Cord
- Bag of Screws
- RJ45 to RS-232 Extension Cable
- RJ45 to RS-422 Extension Cable
- Limited 1-Year Warranty
BirdDog PTZ Range
Specifications
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 22 × 16 × 14 cm |
| Color | Black, White |
