LUMANTEK HD Encodulator – Professional HD Encoder and Modulator (ATSC/DVB-T/DVB-C/DTMB)
3.504,07€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
LUMANTEK HD Encodulator – Professional HD Encoder and Modulator (ATSC/DVB-T/DVB-C/DTMB)
The HD Encodulator is a professional HD MPEG-2/H264 Encoder with a built in modulator that can support numerous terrestrial DVB modulation standards.
These include ATSC (8VSB), DVB-T, DVB-C and DTMB. The device can also be used as a standalone encoder through the built in IP and ASI outputs.
HD Modulator
LUMANTEK HD Encodulator is HD encoder packaged with modulators in a single 1RU. Supported modulations include DTV standards such as ATSC, QAM, DVB-T, and DTMB.
HD Encodulator is perfect for in-house broadcasting (MATV) since it allows cost-effective distribution within multi-storied buildings or high-density areas.
MPEG-2 & H.264
Integrated with full HD Professional Broadcasting level encoder chipset, HD Encodulator guarantees professional HD quality encoded videos.
PSIP / SI / PSI
By enabling PSIP, SI, and PSI, you can virtually set the channel number and customize.
DTV Modulator
HD Encodulator is integrated with DTV Modulators (DVB-T, DVB-C, QAM-B, ATSC, DTMB)
- Mpeg-2 / H.264 HD encoding (up to 1920 x 1080 @ 60p)
- PSIP/SI/PSI Editing
- DVB-T, DVB-C, QAM-B, ATSC, DTMB modulation
- Web based management
- Closed Captioning Pass-through
- HD-SDI, HDMI, Y/Pb/Pr inputs
User Interface

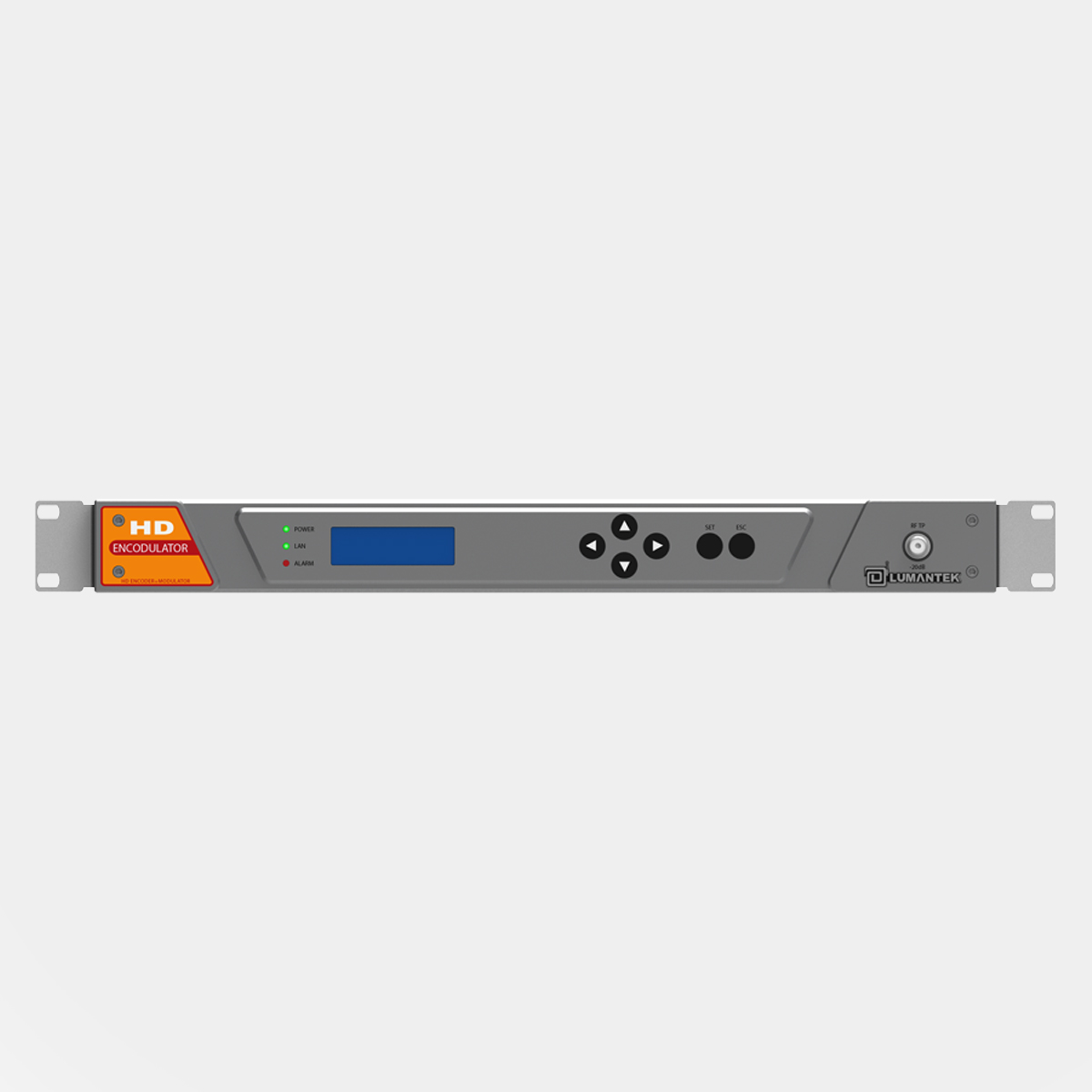

| Front Panel | 4-line text LCD display with 6 hardware buttons |
| RS-232 local console | |
| Web GUI | |
| SNMP (option) | |
Video Encoder

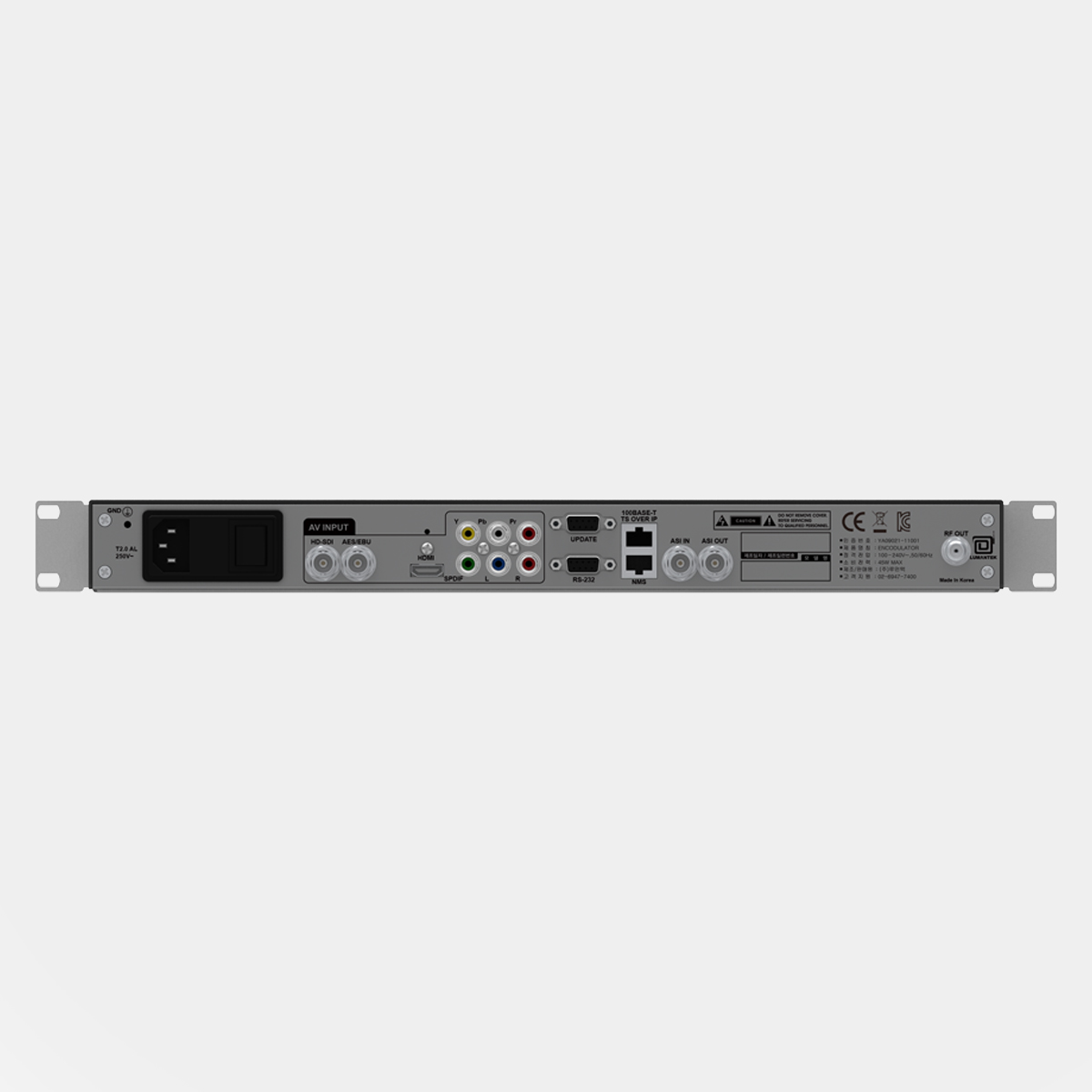

| Input | HD-SDI, HDMI, Y/Pb/Pr |
| HD Resolutions and progressive frame or interlaced field rates |
| – 1920 x 1080 @ 60p, 50p via internal interlacer (converts to 60i, 50i,respectively) – 1920 x 1080 @ 60i, 59.94i, 50i, 29.97p, 25p, 24p, 23.97p – 1280 x 720 @ 60p, 59.94p, 50p |
| SD resolution and frame/field rates |
| – 720 x 480 @ 60i, 59.94i – 720 x 576 @ 50i |
| MPEG-2 HD/SD Encoder |
| – ISO/IEC 13818-2 (MPEG-2 MP@HL, MP@ML) – HD video bit rate: 25 ~ 0.5 Mbps – SD video bit rate: 25 ~ 0.5 Mbps – Sub 1.5 seconds encoder latency (configurable) |
| H.264 HD/SD Encoder |
| – Baseline, main and high profiles support – HD video bit rate: 25 ~ 0.25 Mbps – SD video bit rate: 25 ~ 0.25 Mbps – Sub 0.8 seconds encoder latency (configurable) |
| Maximum TS bit rate | 30 Mbps |
| I, IP and IPB encoding with configurable GOP structure |
| Selectable open/closed GOP |
| Adaptive I-frame insertion |
| CBR, VBR and capped-VBR bit rate control |
| MCTF support |
| Inverse Telecine support |
| Scene change detection and fade detection support |
Audio Encoder
| Input: SDI embedded, HDMI embedded, Analog Stereo Dolby Digital CE Stereo encoder(for ATSC and DTMB) |
| – Output bit rates: 128 / 192 / 256 / 384 Kbps – Sample rate: 48 KHz |
| MPEG-1 Layer II Stereo Encoder (for DVB-T and DTMB) |
| – Output bit rates: 192 / 224 / 256 / 320 / 384 Kbps – Sample rate: 32 / 44.1 / 48 KHz |
| AAC-LC, HE-AAC v1, HE-AAC v2 Stereo Encoder (for ISDB-T) |
| – Sample rate: 32 / 44.1 / 48 KHz – Sample rate: 32 / 44.1 / 48 KHz – Pass through of Dolby Digital Stereo / 5.1 Ch, MPEG-1 Layer II and AAC-LC audio support |
Supported Modulations
| ATSC (8VSB) Modulation |
| – Symbol Rate 10.762 MSps – SNR (MER): >35 dB |
| DTMB Modulation |
| – Modulation Support: Single carrier and TDS-OFDM s – Modulation Mode: QPSK, 16 QAM, 32 QAM, 64 QAM – Standards:GB20600-2006, ISO/IEC 13838-1, EN 50083-9 – OGY/T 229.1-2008 (SIP) – SNR (MER): >40 dB |
| DVB-C (ITU-T J.83 Annex A/C) Modulation | |
| Constellation Types | 16 QAM, 32 QAM, 64 QAM, 128 QAM, 256 QAM |
| Symbol Rates | 0.87 ~ 7.2 MSps |
| Channel Bandwidth | 1 ~ 8.280 MHz |
| SNR (MER) | >40 dB |
| DVB-T Modulation | |
| Modulation Mode | QPSK, 16 QAM, 64 QAM |
| Transmission Mode | 2K, 4K, 8K |
| Channel Bandwidth | 5, 6, 7, 8 MHz |
| Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Frequency Range | 50 ~ 870 MHz |
| SNR (MER) | >40 dB |
| QAM-B (ITU-T J.83 Annex B) Modulation |
| – Constellation Types & Symbol Rates: 64 QAM: 5.057 MSps , 256 QAM: 5.361 MSps- Channel Bandwidth: 6 MHz
– SNR (MER): >40 dB |
| RF Output |
| – Connector: F-Type 75Ω 1ea- Maximum Output Level for 1 ch: +10 dBm
– Maximum Output Level for 2 ch: +4 dBm – Maximum Output Level for 3 ch: 0 dBm – Maximum Output Level for 4 ch: -3 dBm – Level Adjustment: -15 ~ 0 dB in 0.5 dB steps – Frequency Range: 50 ~ 870 MHz – Spurious & Harmonics: < -55 dBc – Return Loss: > 15 dB – Phase Noise: < -98 dBc/Hz at 20 kHz offset |
-
HDEncodulator
- 1 YEAR WARRANTY
Specifications
Additional information
| Weight | 1,4 kg |
|---|---|
| Dimensions | 47,8 × 40,2 × 4,4 cm |
