LUMANTEK ez-Caster EN8 8-Channel H.264 Video-IP Encoder
3.504,07€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

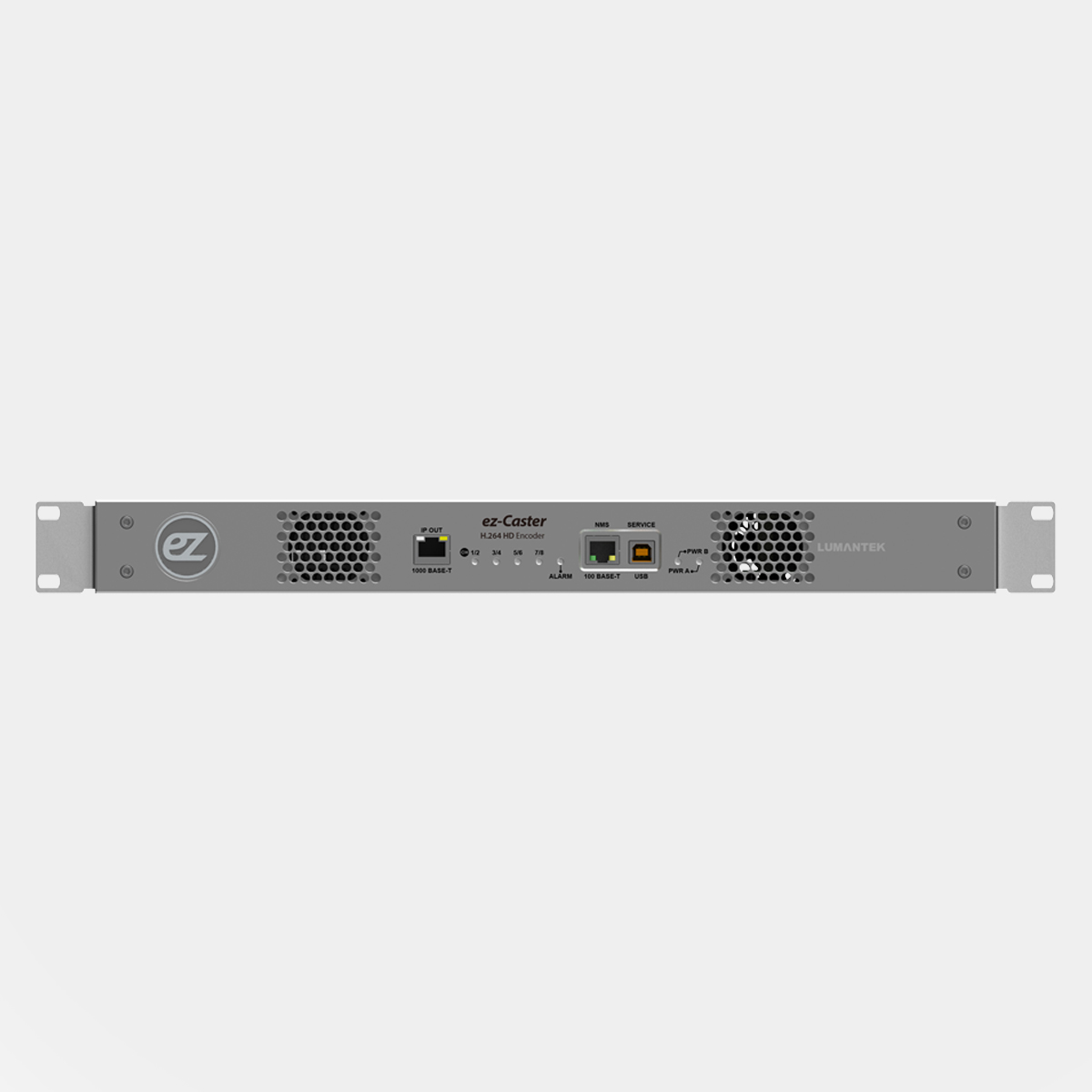

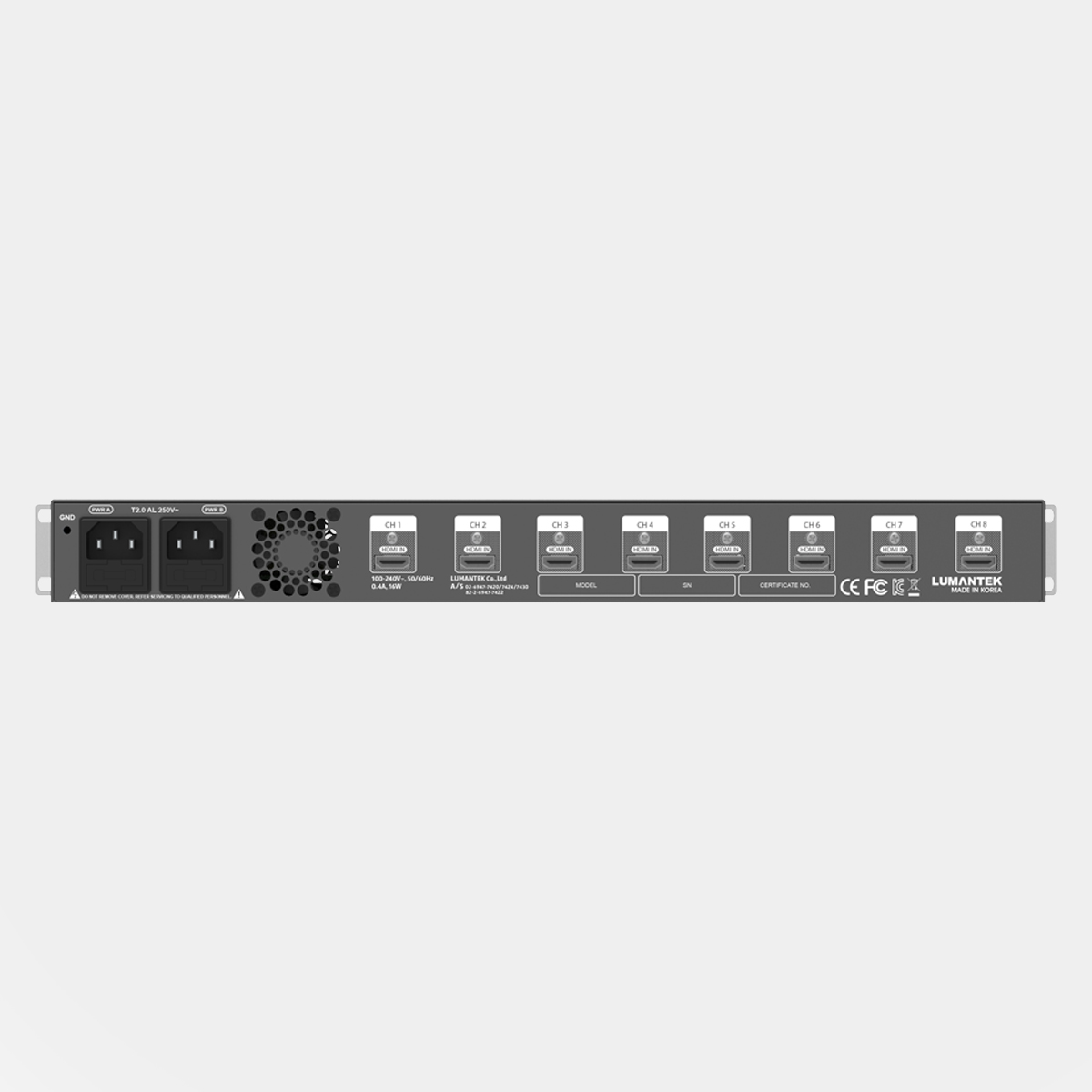

LUMANTEK ez-Caster EN8 8-Channel H.264 Video-IP Encoder
The ez-Caster EN8 8-Channel H.264 Video-IP Encoder from Lumantek consists of 8 HDMI inputs and one IP output. It supports H.264 video compression and MPEG-1 Layer2, MPEG-2-AAC,MPEG-4-AAC for audio compression. It connects to a maximum of 8 satellite or cable STB for HD video signal and then distributes it over an IP based network, such as LAN and Intranet. Furthermore, the encoder turns an HDMI video stream into a network video system and enables users to view live images and HD video using a video management software on any local IP STB or remote computer on a network.
Input Ports
Video:
8 x HDMI
Control:
1 x LAN port
Output Ports
Video:
1 x LAN port (TS over IP)
H.264 Real Time Encoding
Your 8 video sources will be encoded into H.264 (MPEG4), so you can make the videos light to upload on the net.
TS over IP
Send out video signals in IP network! Stream videos to set-top boxes, computers, laptops, mobile, and more!
Control through LAN or USB
LUMANTEK’s ez-Caster EN8 comes with a light software to manage the encoded videos. Connect the encoder to your PC to gain control of the video network.
Specs
| ez-Caster En8 Encoder |
| Input * HDMI 1.4 x 8 Ch * Resolutions 1920 x 1080 @60i, 59.94i, 50i 1920 x 1080 @30p, 29.97p, 25p, 24p, 23.98p 1280 x 720 @60p, 59.94p, 50p 720 x 480 @60i, 59.94i 720 x 576 @50i |
| Video Encoding |
| Compression Standard : H.264 / Mpeg 4 part 10 (AVC) Profiles : High Levels : 4.0 Bit Rates : 3.5Mbps to 18Mbps (CBR), VBR Etc : GOP (Size, Structure) CPB delay down scaling support |
| Encoder Recording Mode |
| Compression Standard : MPEG1-Layer2, MPEG2-AAC, MPEG4-AAC Channels : 2 Channel (stereo) Bit Rates : 48-512Kbps (depends on codec) Etc : GOP (size, structure) CPB Delay down caling support |
| Encoder Recording Mode |
| Compression Standard : MPEG1- Layer2, MPEG2-AAC, MPEG4-AAC Channels : 2 channel (stereo) Bit rates : 48 – 512 Kbps (depends on codec) |
| Networking Interface |
| 100/ 1000 base-T Ethernet * 1000Mbps full duplex (streaming) * 10Base-T/ 100Base-TX half/full duplex (NMS) Streaming protocols : MPEG-2 TS/UDP/IP Unicast, Multicast and Multi Unicast NMS : IPV4 Support Fixed IP Address (DHCP not supported) |
| Management Software |
| Central Command and Control Application * Resides on any PC network node * Encoding control and manipulation * Frame rate and resolution control * IP control * GOP, CPB delay control OS Support : Windows 10 (32-bit, 64-bit) Windows 7 (32-bit, 64-bit) |
| Power |
| 100-240V~, 50/60Hz, 0.4A |
| Regulatory / Environmental |
| Operating Temperature : 0 to 45℃ |
| Mechanical |
| Dimensions Encoder: 45(H) x 420(H) x 290(D) mm Rackmountable with optional rackmount tray and accessories |
- Lumantek ez-Caster EN8 8-Channel H.264 Video-IP Encoder
- Power Cord
- Limited 1-Year Warranty
Specifications
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 52 × 50 × 19 cm |
