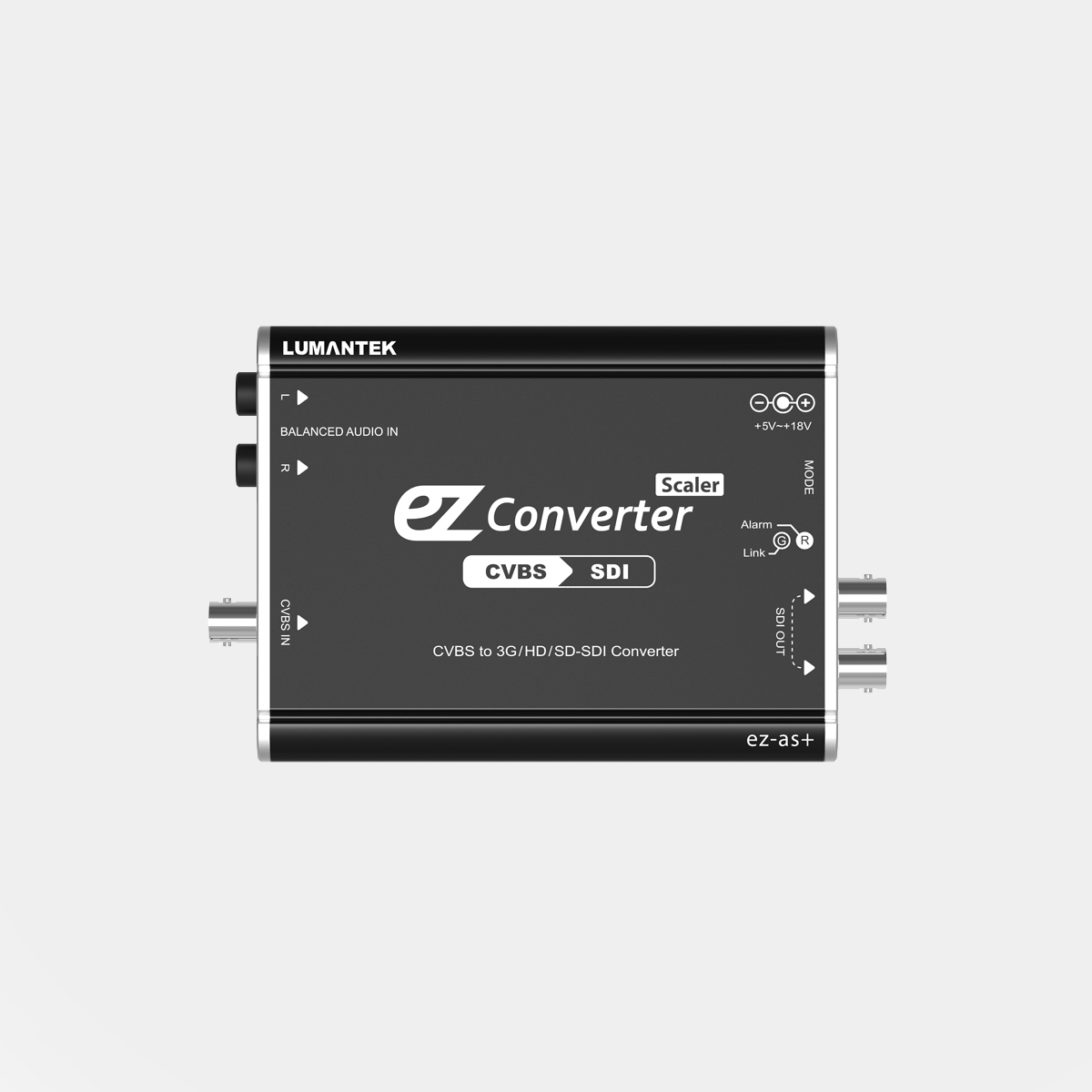

LUMANTEK ez-as+ (CVBS to 3G/HS/SD-SDI with scaler)
277,24€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
LUMANTEK ez-as+ (CVBS to 3G/HS/SD-SDI with scaler)
Scalers in Converters
Scaler ez-Converters of LUMANTEK are converters with far more options to facilitate video transference. By handling the ‘dip switch’, the user will be able to change the video resolution from 480i to 1080p60. There are two models of Scaler ez-Converters.
Input:
1 pair x 6.35mm (1/4″) Balanced Audio
1 x CVBS (BNC type)
Output:
2 x SDI
Scalable Resolutions
Scaler ez-Converters can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. Use the ‘dip switch’ on the side of the converter and match to the right resolution.
Screen Ratio Control
You can change the output ratio as well. Choose from either 16:9 or 4:3 screen ratio to fit your requirement.
Low Power Consumption
The maximum power consumption of Scaler ez-Converters is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity.
| Video Input Format | NTSC (720x480i@59.94/60) PAL (720x576i@50) |
| Video Output format | 720x480i @59.94/60, 720x576i@50 1280x720p @50, 1280x720p @59.94/60 1920x1080i@50, 1920x1080i @59.94/60 1920x1080p@23.94/24, 1920x1080p@25, 1920x 1080p@29.97/30 1920x1080p@50, 1920x1080p@59.94/60 |
| Audio Input Connector | 6.35mm (1/4″) Phone Jack (Balanced) x 2 |
| Video Input Connector | BNC x 1 |
| Video Output Connector | BNC x 1 |
| DC Input Power | 5V ~ 18V |
| Power Consumption | < 3W |
| Dimensions | 131 x 98.8 x 28.4mm |
- ez-as+ CONVERTER
- 1 YEAR WARRANTY
Specifications
Additional information
| Weight | 0,680 kg |
|---|---|
| Dimensions | 20 × 15,24 × 9,1 cm |
