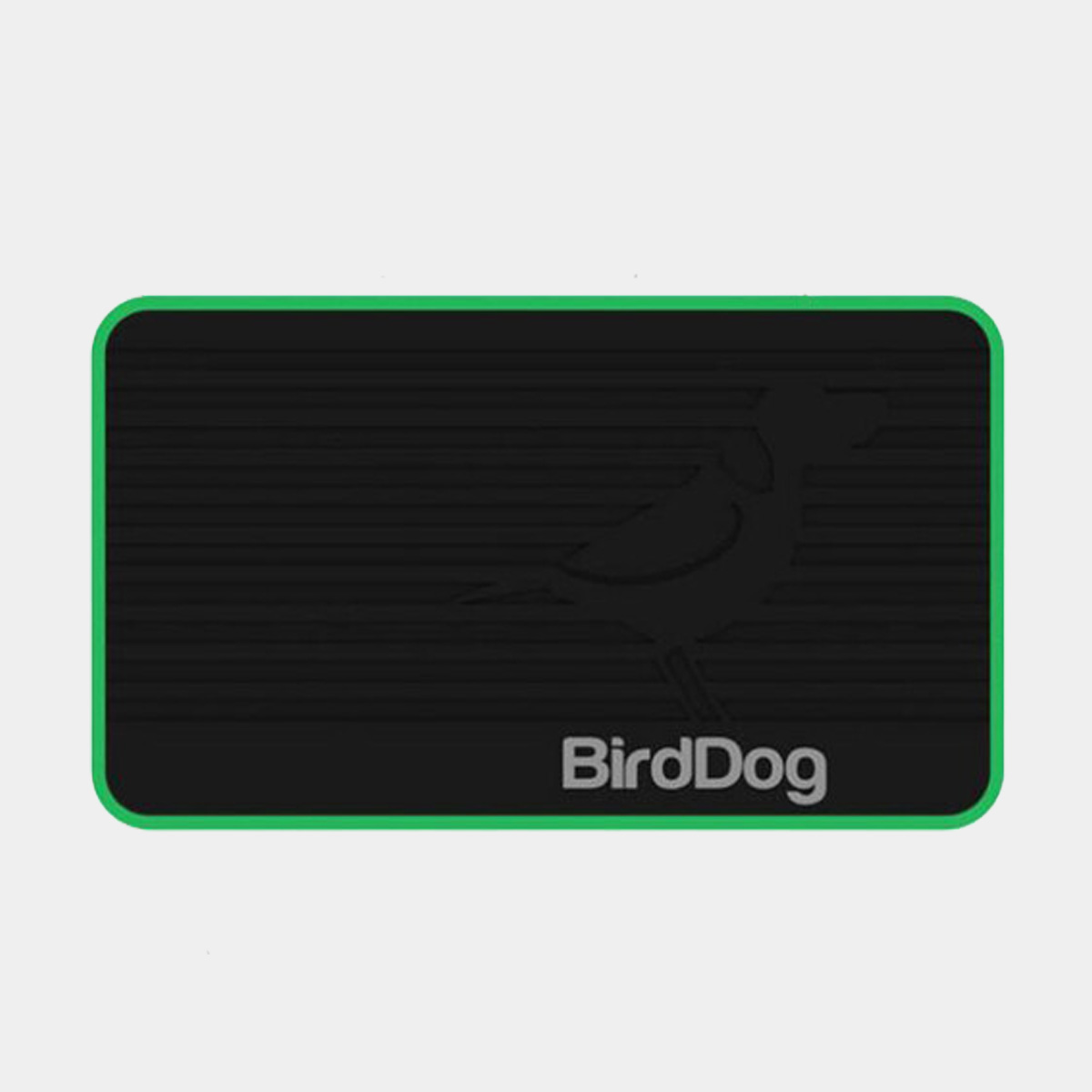

BirdDog Flex 4K Out Full NDI Decoder
360,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
BirdDog Flex 4K Out Full NDI Decoder
The Flex 4K Out Full NDI Decoder from BirdDog is an ultracompact HDMI interface for NDI video sources. Connect your NDI-enabled camera or other video source and have an HDMI output instantly available. The BirdDog Flex Out supports up to UHD 4K30 and 1080p60 resolution video.
Versatile power options include PoE or a separately available 12V power supply. Tally information is displayed for both the talent and the operator and passed through to compatible equipment. Connect a separately available cable to the 2.5mm RS232 port for pass-through control of PTZ cameras. Additional features include an adaptive bit rate, a cooling thermal design, and a 3.5mm headphone output.
Ultracompact Form
The Flex 4K Out is slightly larger than a credit card and weighs just under five ounces
Single Cable
A single Ethernet port funnels NDI, PoE, video, audio, tally, and audio intercom
Flexible Power Input Options
Power the Flex 4K Out using PoE or via the DC input
Stay-Cool Design
A thermal design and quiet fans keep the decoder cool even on the hottest days
Tally Support
A built-in tally display is visible by both your talent and camera operator
Adaptive Bit Rate
Select the bit rate that best fits your 4K or HD production
| Feature | FLEX 4K IN | FLEX 4K OUT | FLEX 4K BACKPACK |
|---|---|---|---|
| SUPPORTED VIDEO FORMAT | |||
| UHD 2160p | 25.00, 29.97, 30.00 | ||
| HD 1080p | 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 | ||
| HD 1080i | 50.00, 59.94 | ||
| HD 720p | 50.00, 59.94, 60.00 | ||
| VIDEO I/O CONNECTIVITY | |||
| HDMI 2.0 Input |  |
– | |
| HDMI 2.0 Output | – | |
– |
| AUDIO INPUT | |||
| HDMI | 2Ch, 48kHz | – | 2Ch, 48kHz |
| 3.5mm AUDIO | Microphone/line input | ||
| AUDIO OUTPUT | |||
| HDMI | – | 2Ch, 48kHz | – |
| 3.5mm AUDIO | Stereo Headphone/line output | ||
| VIDEO CODEC SUPPORT | |||
| NDI (Full bandwidth i-frame compression) | |
|
|
| TALLY | |||
| Integrated Tricolour Halo Tally | |
|
|
| PTZ CONTROL | |||
| 2.5mm 4-pole RS232 (VISCA) | |
|
|
| NETWORK CONNECTIVITY | |||
| Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet) |
|
|
|
| Embedded Web configuration Panel | |
|
|
| WEIGHTS & DIMENSIONS | |||
| Size | 107×63×31mm | 107×63×42.5mm | |
| Weight | 140g | 150g | |
| POWER | |||
| PoE (Power over Ethernet) | PoE+ 802.3at | ||
| DC Input | DC 12v (30w max) | ||
| DC Output | DC 12v (15w max) | – | DC 12v (15w max) |
| NP style Battery Output | – | – | |
- Limited 1-Year Warranty
BirdDog PTZ Range
Specifications
Additional information
| Weight | 0,140 kg |
|---|---|
| Dimensions | 10,7 × 6,3 × 3,1 cm |
