BirdDog Mini HDMI to NDI Encoder/Decoder
475,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

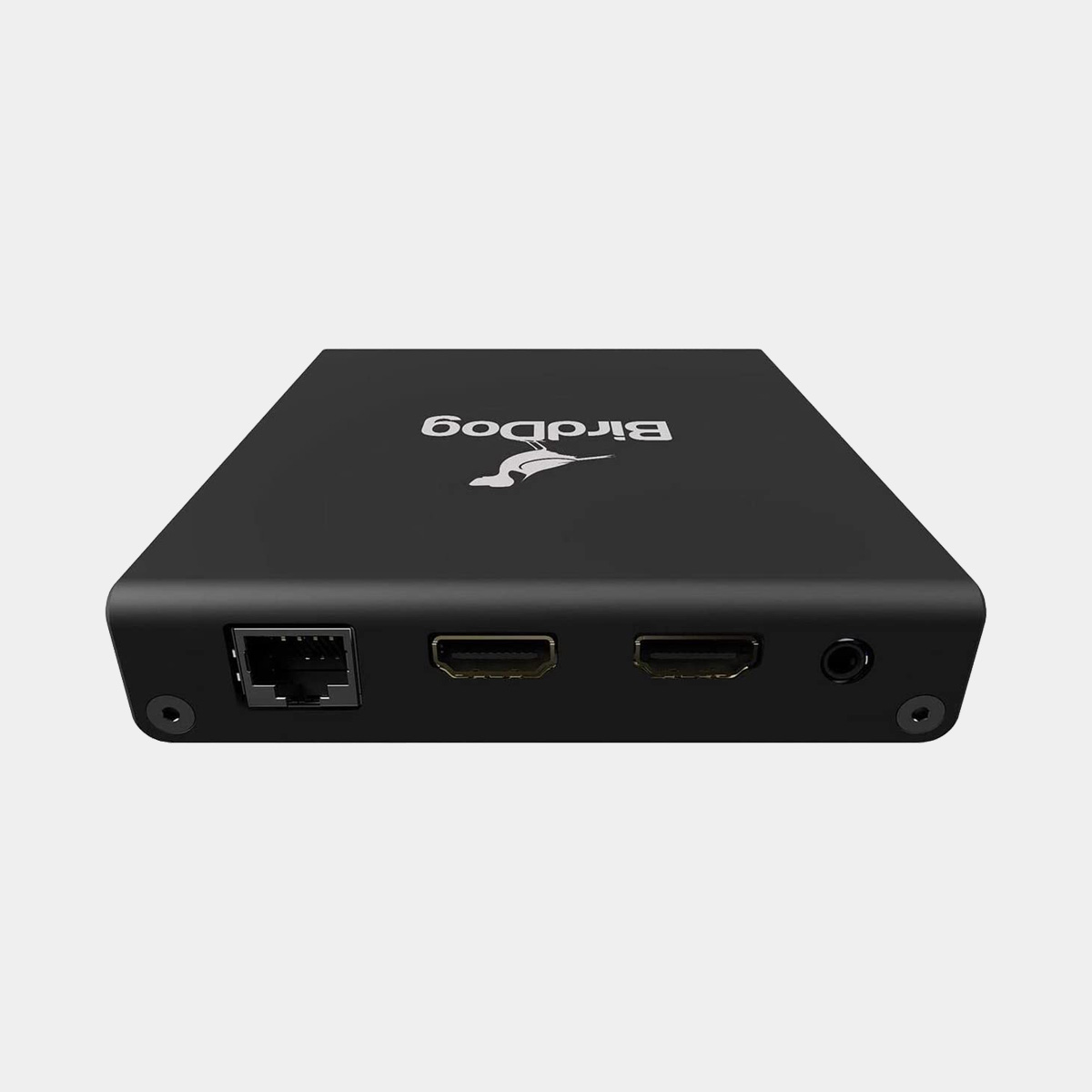

BirdDog Mini HDMI to NDI Encoder
The BirdDog Mini HDMI to NDI Encoder is a tiny NDI interface for HDMI video sources. Connect your camera or other video source, and have it instantly be available on your NDI-enabled network. Despite its size, the BirdDog Mini supports 1080p resolutions up to 59.94 fps. PoE is accepted, so the Mini can be powered via network connection; no power supply needed. Tally information is displayed and passed through to compatible equipment. The small size of the Mini will make it at home in studios and video production facilities utilizing NDI technology.
Tally Support
Flexible Power Options
Comms
BirdDog Link
VIDEO FORMATS
(HD) 1080p 25, 29.97, 50, 59.94
(HD) 1080i 50, 59.94
(HD) 720p 50, 59.94
VIDEO INPUT
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
VIDEO OUTPUT
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
AUDIO DIGITAL
2-Channel, 24-bit HDMI embedded audio,
48 kHz sample rate, synchronous
AUDIO ANALOG
3.5mm Microphone headset input / output
VIDEO CODEC SUPPORT
Realtime, ultra-low latency, full-bitrate NDI
(i-frame)
DISPLAY
Bicolor Tally (Red/Green)
Multicolour status information
Full status information on HDMI output (Selectable)
NETWORK INTERFACE
10/100/1000 Ethernet (RJ-45) with PoE
(Power over Ethernet)
Embedded web configuration panel for
control and firmware updates
USER INTERFACE CONTROLS
Network settings
Video settings
Tally settings
Audio and Comms settings
SIZE (W x D x H)
98x110x22mm
WEIGHT
200g
POWER
100-240V, 50/60 Hz Universal Input, +5-18V DC7W Max
Power over Ethernet (PoE) 802.3af/at
- BirdDog Mini HDMI to NDI Encoder
- Limited 1-Year Warranty
BirdDog PTZ Range
Specifications
Additional information
| Weight | 0,200 kg |
|---|---|
| Dimensions | 10 × 11 × 2,2 cm |
