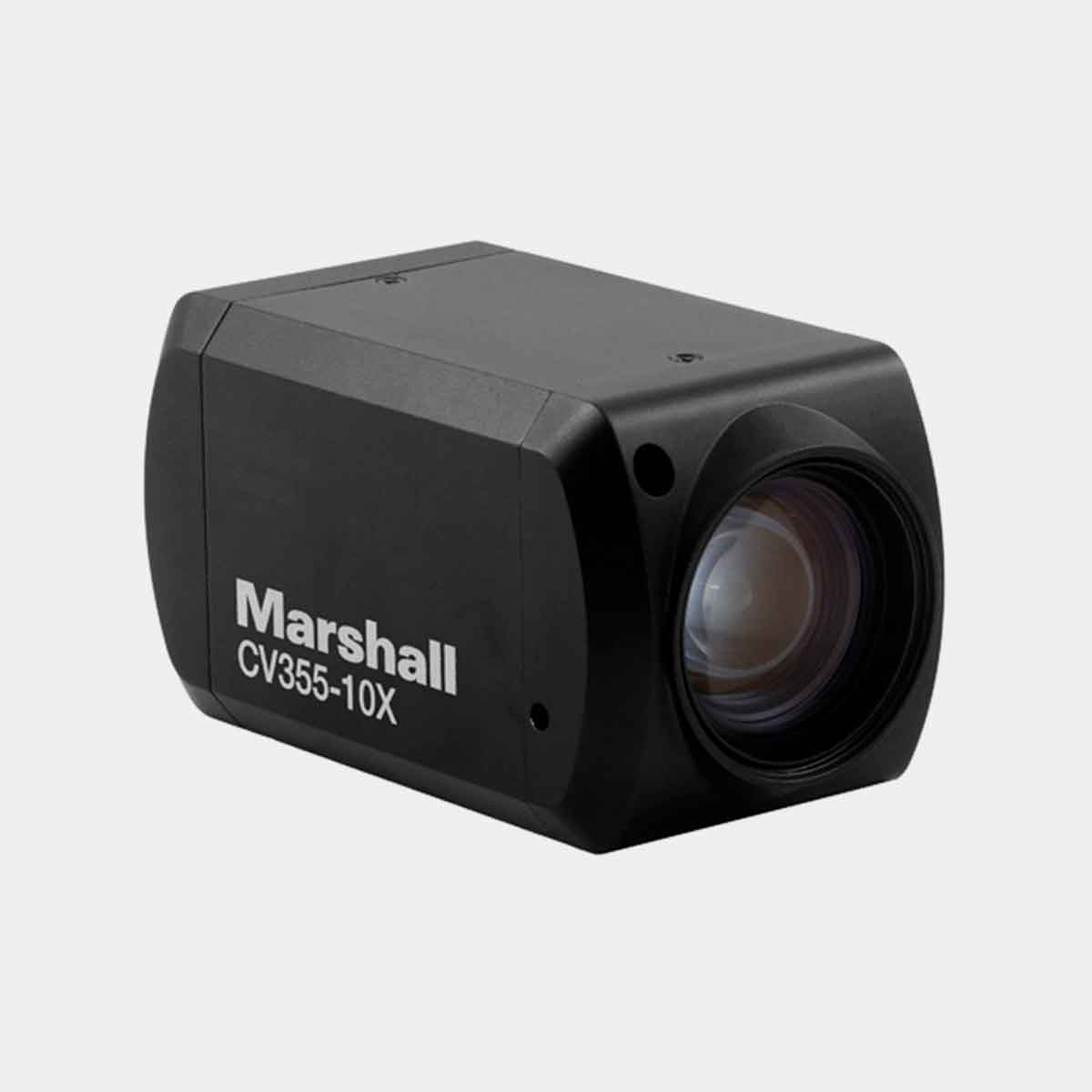

Marshall CV355-10X
955,00€ c/IVA
- Marshall CV355-10X features 10x optical (12x digital) zoom block and flexible 3GSDI/HDMI simultaneous outputs with clear HD images up to 1920×1080 at 60fps. Remote adjust and match settings include Iris, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.
Details & Description
Marshall CV355-10X
Unmatched Versatility
Presenting 3GSDI and HDMI simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.
Durable Build Construction
Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.
Universal Use Cases
Featuring a wide range of HD selections in 1920x1080i (interlaced), 1920x1080p and 1280x720p (progressive). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frames per second to capture any workflow or application in every region of the world.
Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
Applications
The CV355-10X is suitable for use in Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation applications.
| Imaging Sensor | Image Sensor | 1/2.8” Progressive 2.1 Megapixel CMOS |
| Effective Pixel | 1920(H) x 1080(V) | |
| Pixel Size | 2.9(μm) x 2.9(μm) | |
| Min. Illumination | 0.1Lux (Day-color), 0.01Lux (Night-b/w), 0.001Lux (DSS on) | |
| Optics | Lens | 10x Optical Zoom, f=4.7~47mm, F1.6 ~ F3.0 |
| Zoom | 10x optical zoom / 12x digital zoom | |
| Angle of View (H) | 60 degrees (wide end) to 6 degrees (tele end) | |
| Minimum Working Distance | 100 mm (wide open), 900 mm (tele end) | |
| Functions | Focus | Auto/ Manual |
| Exposure | Auto / Shutter Priority/ Iris Priority/ AGC Priority/ Manual/ Bright | |
| White Balance | Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual | |
| Light Modes | DAY (color), NIGHT (b/w), AUTO switch | |
| Electronic Shutter | NTSC: 1/30~1/10000, PAL: 1/25~1/10000 | |
| Adjustable Features | Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct | |
| Video Outputs | HDMI | 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1920 x 1080i: 60, 59.94, 50 1280 x 720p: 60, 59.94, 50 |
| HDSDI Output | 1920 x 1080i: 60, 59.94, 50 1280 x 720p: 60, 59.94, 50 |
|
| 3GSDI Output | 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 | |
| Audio | Input | 3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line) |
| Sample Rate | 16/24/32 Bits | |
| Control Interface | RS485 | SONY-VISCA protocols, PELCO-P/D |
| General | Operation Temperature | -10°C ~ 50°C |
| Power Input | 12VDC (7V to 15VDC) | |
| Power consumption | Max 4.5W | |
| Mass | 0.80 lbs (camera only), 1.02 lbs (with breakout cable) | |
| Dimensions | 104.55 (D) x 56 (W) x 56 (H) mm |
Specifications
Additional information
| Weight | 0,453 kg |
|---|---|
| Dimensions | 10,4 × 5,6 × 5,6 cm |
