Lilliput SG 12G-SDI Signal Generator

Pattern Measurement

To test color temperature and gray scale of monitor with various types of

patterns, such as color bar, monochrome display and customized pictures.

Signal Compatibility

Supports SD, HD, 3G, 6G and 12G-SDI signals; SDI and Fiber signals up to

4K 60Hz. SDI conversion among of different link structures, SQ and 2SI.

Audio Monitoring

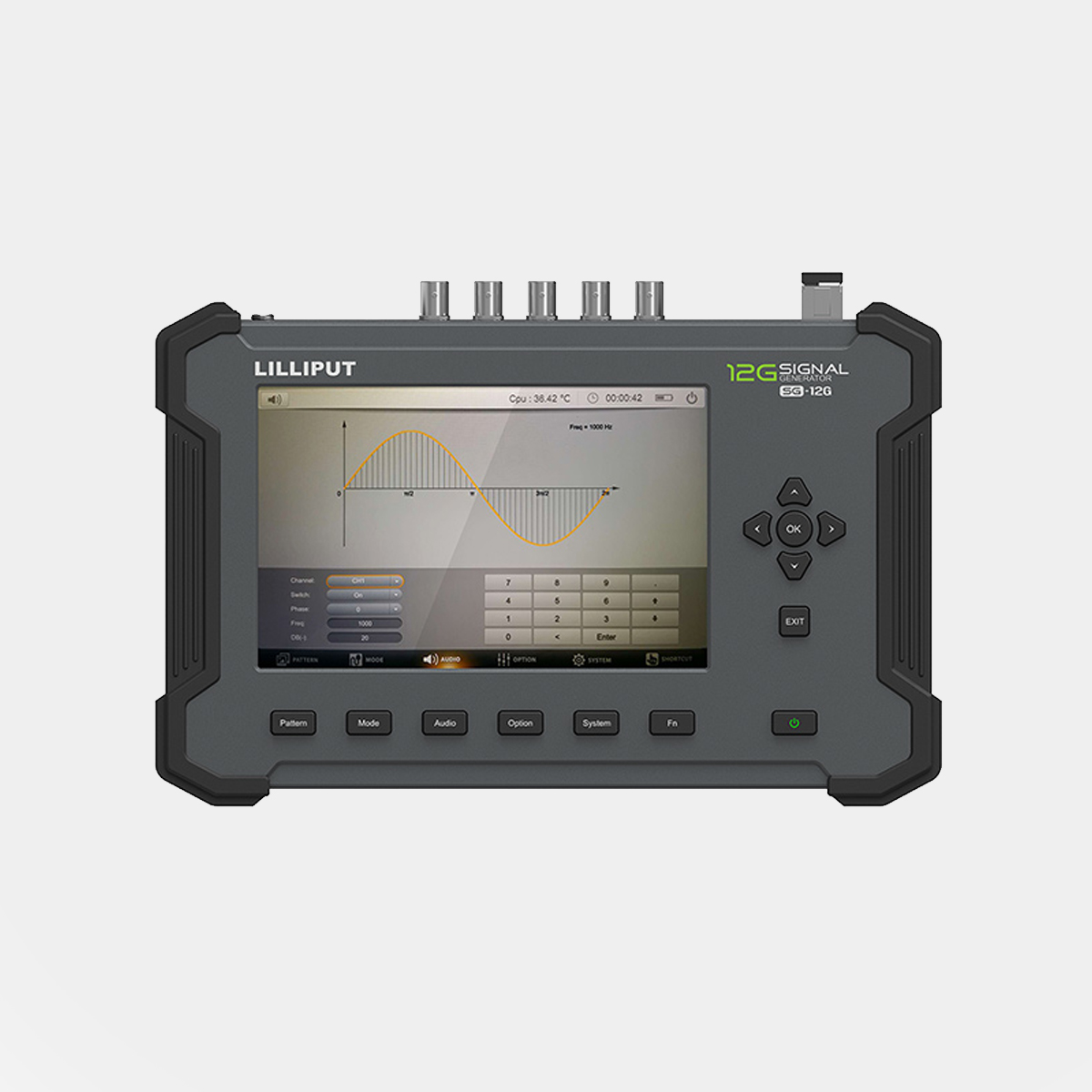

A comprehensive audio monitoring tool supprots up to 16 channels embedded

AES / EBU audio, with -60dB to 0dB range. And a 20 to 20000 frequency.

Overlay

Ring type for optional under Overlay function. Frame counter type for optional

under Overlay function. Character type for optional under Overlay function.

Text input will be displayed based on the specific X and Y axis that can be

preset.Ref In used for frame synchronization to ensure input & output frames

simultaneously.

Time Code

Supports Linear time code(LTC) and Vertical interval time code(VITC).

Ring Type

Ring type for optional under Overlay function.

FN (Shortcut)

User-definable functions as shortcuts with great convenience.

Function Shortcut supports more than one hundred shortcut functions.

For time-saving andhigh efficient when testing, users can manage

shortcut functions through Add, Del, Replace and Output operations.

Interfaces

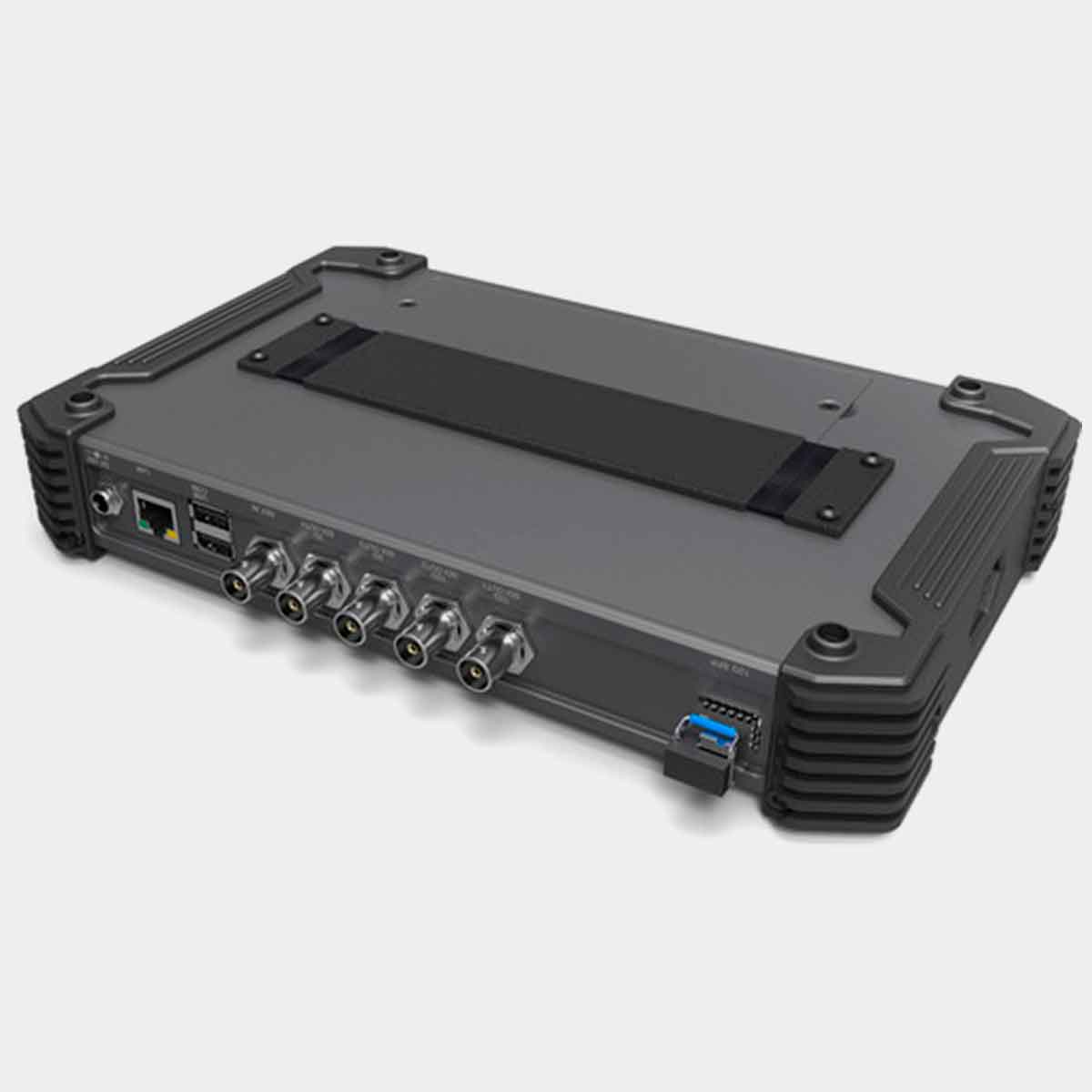

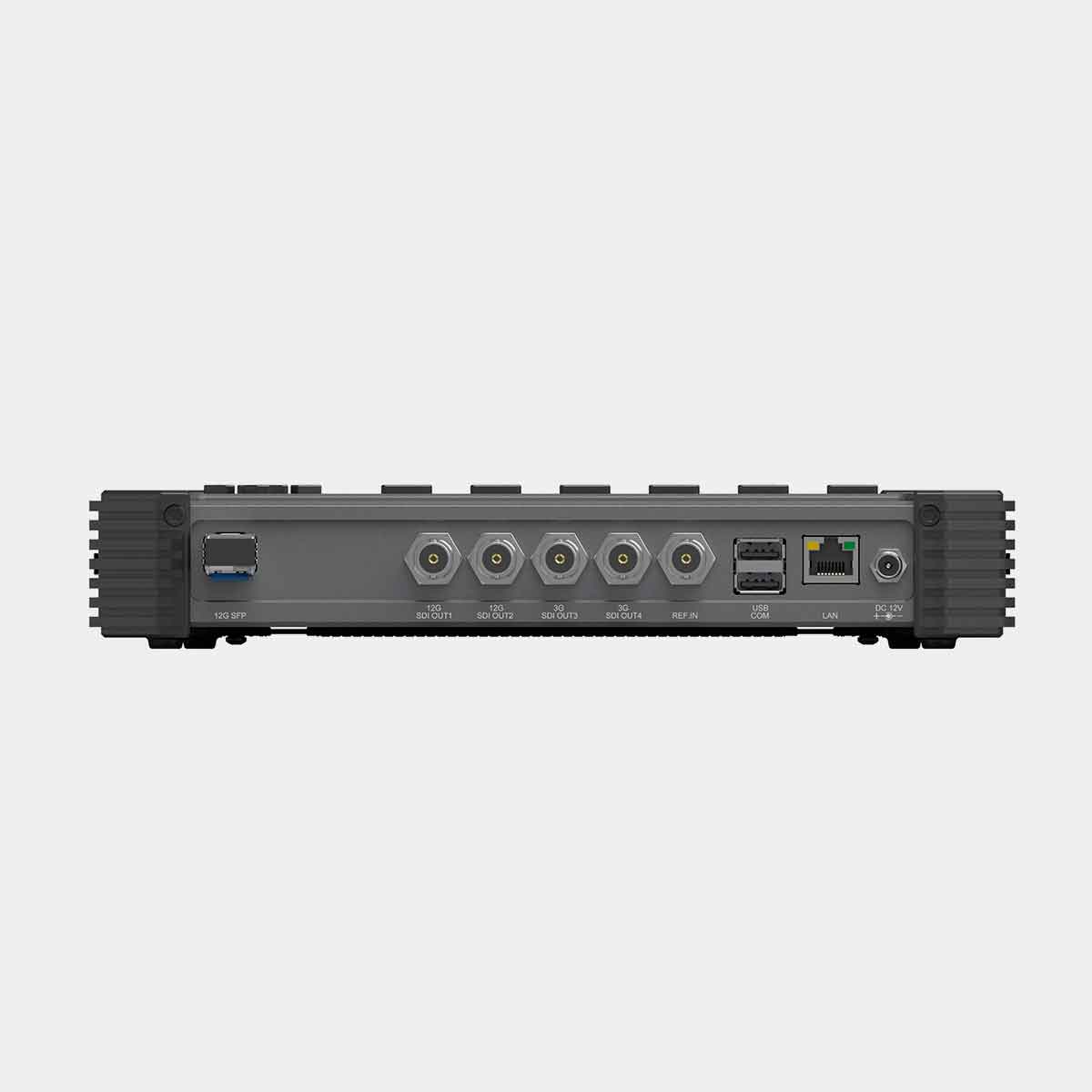

12G-SFP support 12G-SDI fiber signals (Optional Module).12G-SDI supports single/dual/quad-link signal outputs, and

backward compatible with 6G / 3G / HD / SD-SDI signals. USB used for external devices, such as USB flash disk,

mouse and keyboard, etc.
