Lilliput FA1016/C/T
300,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
Lilliput FA1016/C/T
FA1016/C/T with a wide operating temperature, it come with ultra slim industrial monitor which supports 10.1″ 1920×1200 320nits multi-point (10- points) projective capacitive touch screen IPS screen. And suitable for a wide range of outdoor industrial and commercial applications in the market, such as POI/POS, Kiosk, HMI and all kinds of heavy-duty industrial field equipment systems. There are different install way for the touch screen monitor, Whether as a desktop device for control centers, as a built-in unit for control consoles or as PC-based visualization and control solutions requiring a spatially divided setup of the operator panel and the industrial PC or server, and the optimal solution – as a stand-alone solution or also with several control stations in extensive visualization and control solutions.
Excellent Display and operation experience
It features 10.1” 16:10 LCD panel with 1920×1200 full HD resolution, 1000:1 high contrast, 175° wide viewing angles, which
fulls lamination technology so as to convey every detail in massive visual quality.Adopt the unique Glass+Glass technology
to smooth the appearance of its body and hold the widest view in order to achieve the best effect.
Wide Voltage Power & Low Power Consumption
Built-in high level components to support 7 to 24V power supply voltage, allows to be used in more places.
Working safely with ultra-low current in any situation, as well as the power consumption is greatly cut down.
Easy-to-use
F1&F2 user-definable buttons to custom auxiliary functions as shortcut, for example, scan, aspect, check field,
zoom, freeze, etc. Use the dial to select and adjust the value among of sharpness, saturation, tint and volume.

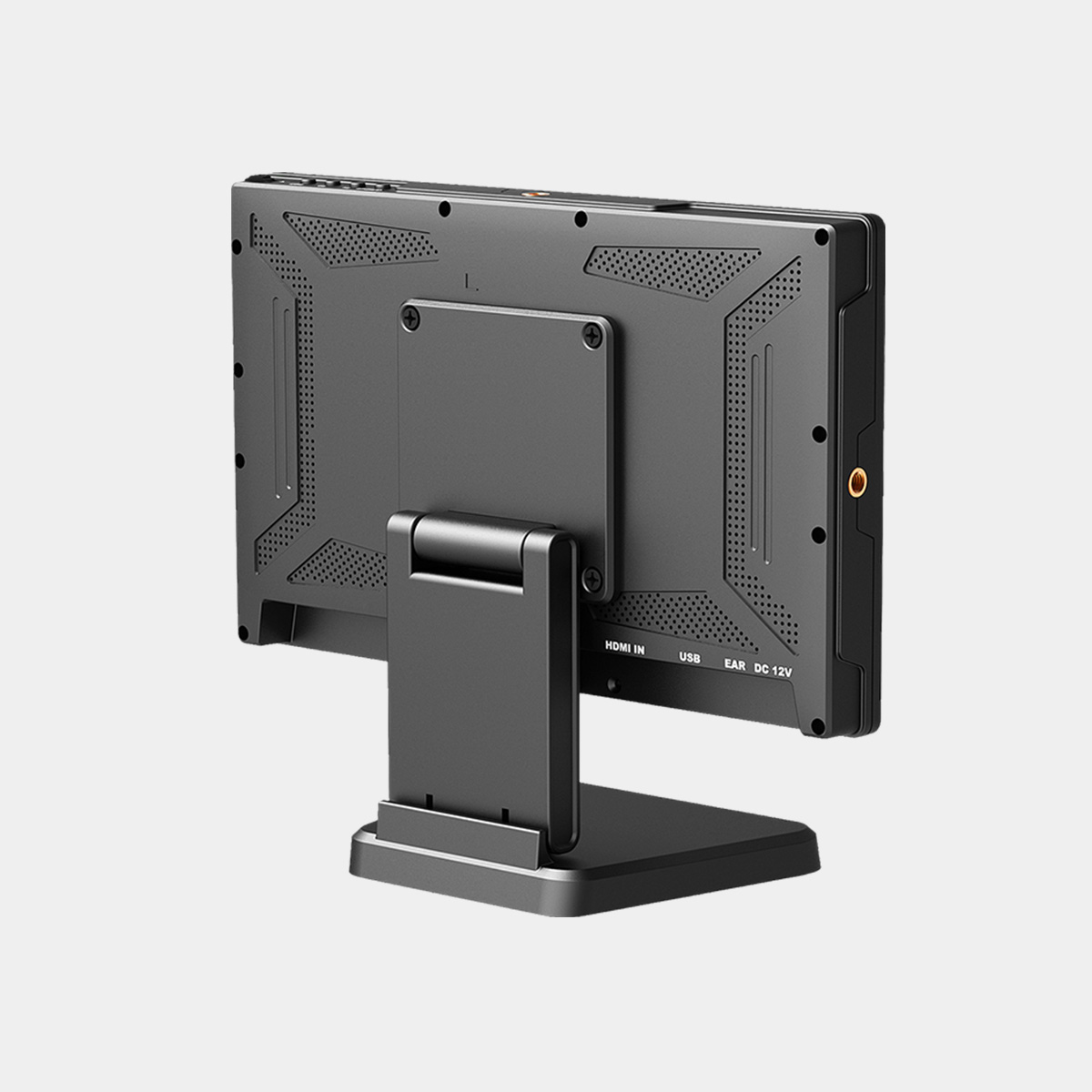

Folding Bracket (Optional)
Equiped with 75mm VESA folding bracket, it can not only be retracted
freely, but save space on the desktop, wall and roof mounts, etc.
Patent No. 201230078863.2 201230078873.6 201230078817.2
INPUT button. Single press to power on, or switch signals; Long press to power off.
| Display | |
| Touch panel | 10 points capacitive |
| Size | 10.1” |
| Resolution | 1920 x 1200 |
| Brightness | 320cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 1000:1 |
| Viewing Angle | 175°/175°(H/V) |
| Video Input | |
| HDMI | 1×HDMI 1.4 |
| VGA | 1 |
| Supported In Formats | |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
| Audio In/Out | |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤10W |
| DC In | DC 7-24V |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 252×157×25mm |
| Weight | 535g |
-
FA1016-C/T Monitor
-
Power Supply
- Quick Start Guide
Specifications
Additional information
| Weight | 0,535 kg |
|---|---|
| Dimensions | 25,2 × 15,7 × 2,5 cm |
Reviews
There are no reviews yet.
