Lilliput BM230 4K 12G-SDI Broadcast Monitor
1.999,19€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

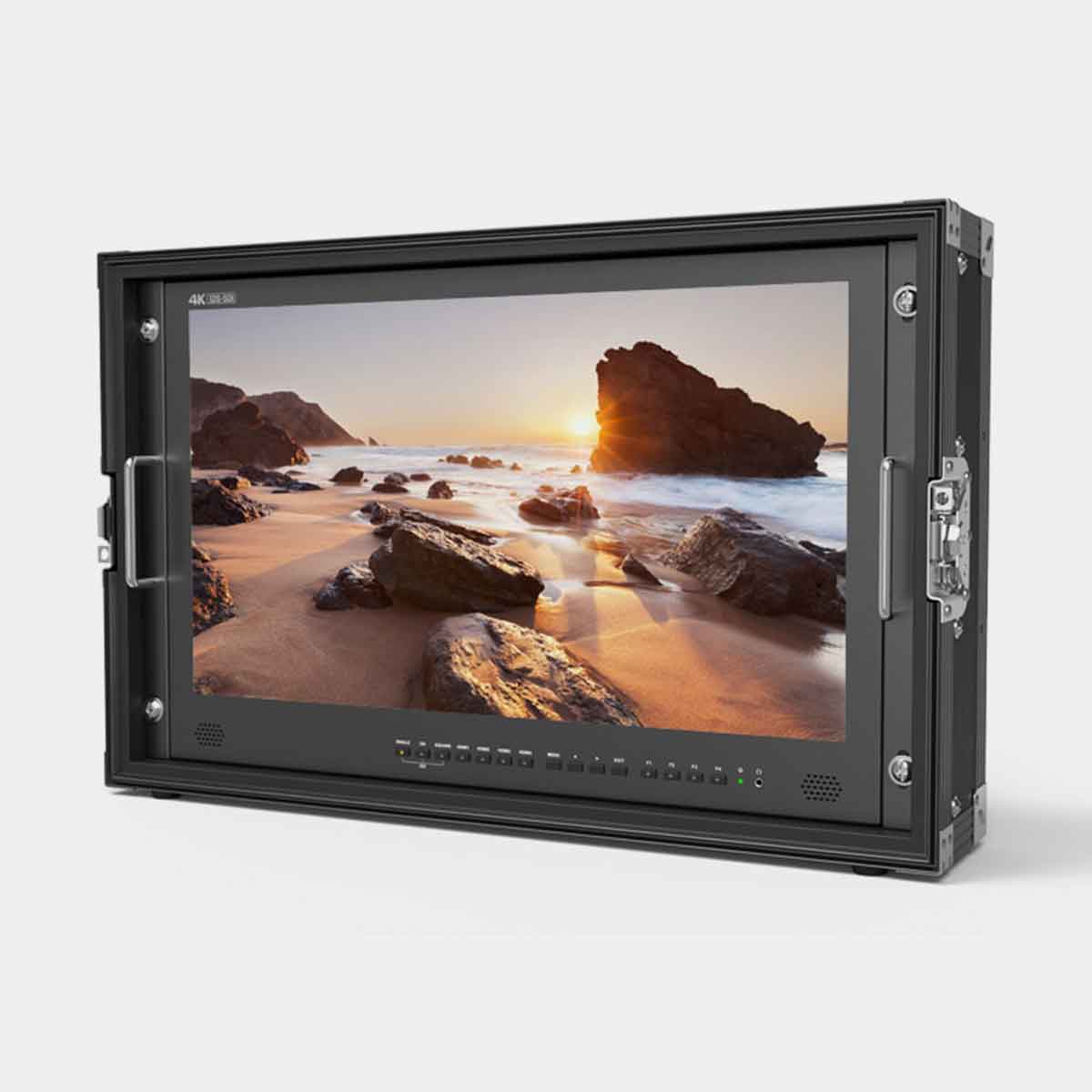

Lilliput BM230 4K 12G-SDI Broadcast Monitor
BM230-12G is a broadcast director / production monitor, it is the best selection for FHD/4K/8K cameras, switchers and other signal transmission devices. The broadcast monitor features 3840×2160 Ultra-HD native resolution screen. And it comes with 12G-SDI Single-Link and 4×4K HDMI signals input and display. And also supports Quad views splitting from differenet input signals simultaneously, which providing a efficient solution for applications in muliti-camera monitoring. About the install way for 12G SDI production monitor ,there are ,stand-alone and carry-on for your selection , and it widely applied in studio, filming, live events and other various applications.
4K Ultra-HD resolution
Ultra HD 4K screens contain 8.3 million pexel(3840×2160), so the resolution is four times that of Full HD.
And making the innovative 4K screen the ultimate in cinematic displays.
SDI equalization & re-clocking
The purpose of the eye waveform is to measure the quality of the SDI input signal. So the SDI
equalization & re-clocking function ensures the transmission quality and effect of eye pattern.
Multiple Views Display
It supports quad views splitted from different input signals simultaneously, such
as 12G-SDI, 3G-SDI and HDMI. Also supports Picture-in-Picture function.
Camera Auxiliary Functions
Plenty of auxiliary functions for taking photos and making movies, such as
peaking, false color and audio level meter.
| Display | |
| Size | 23.8” |
| Resolution | 3840×2160 |
| Brightness | 300cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 178°/178°(H/V) |
| Video Input | |

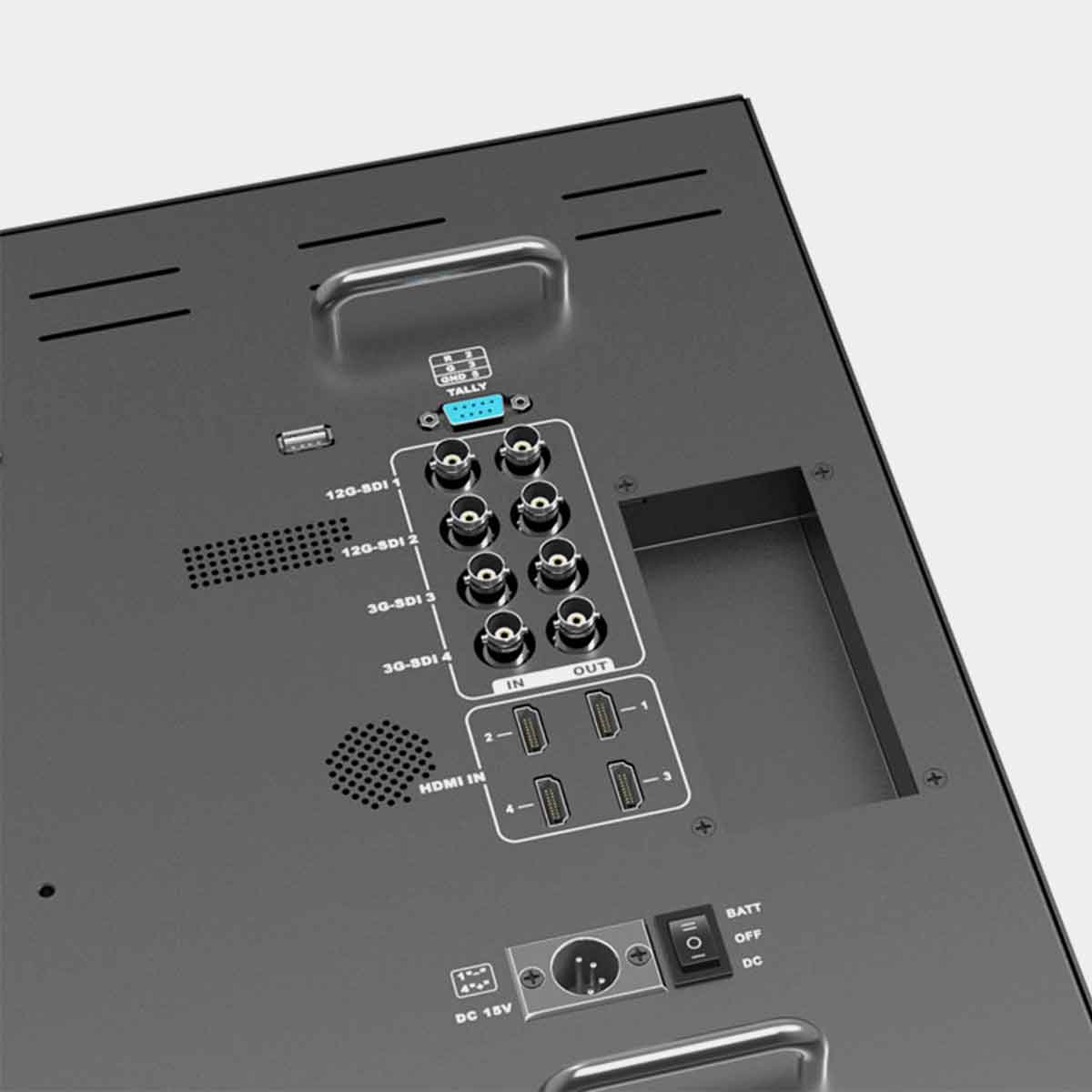

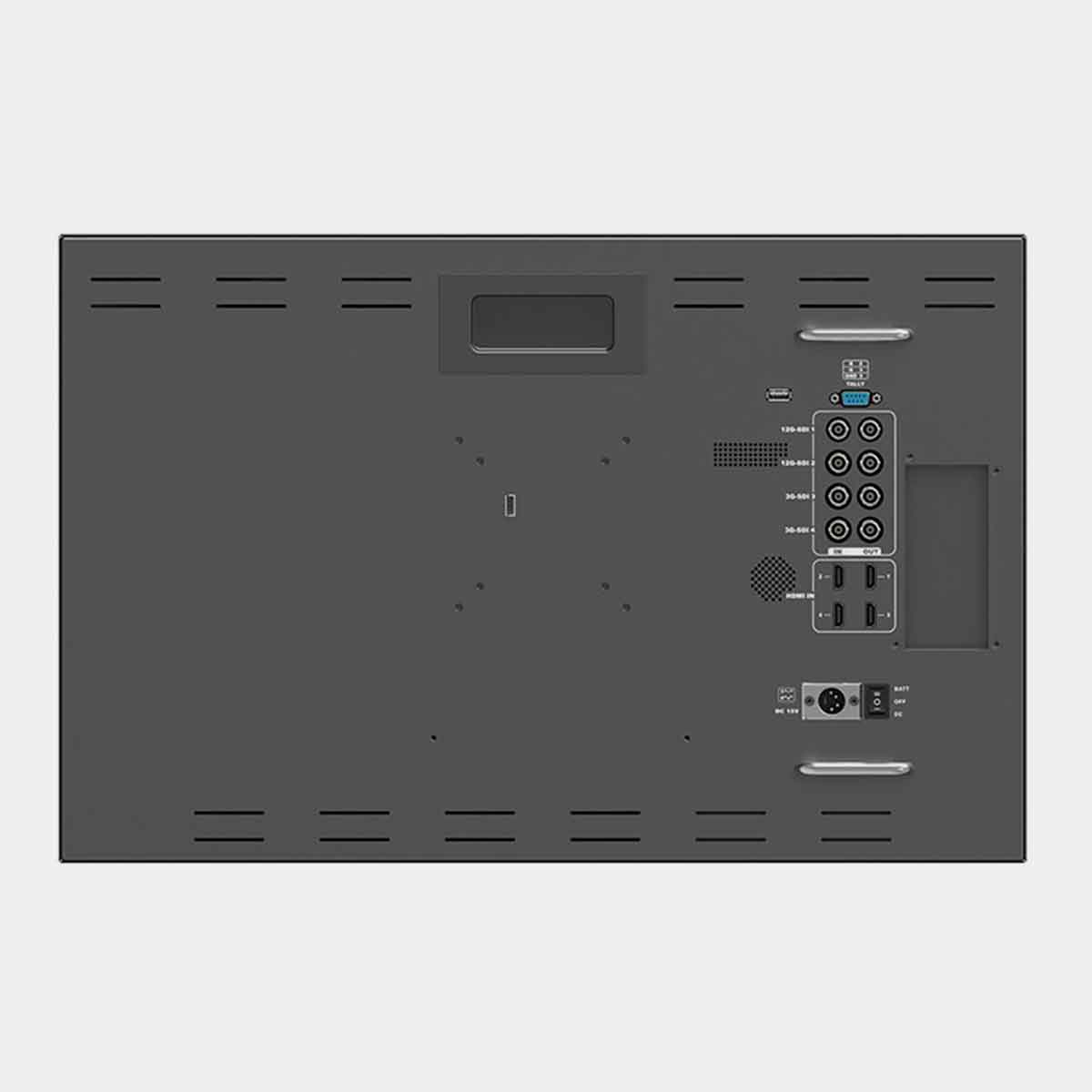

| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
| Video Loop Output (Uncompressed true 10-bit or 8-bit 422) | |
| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
| Power | |
| Operating power | ≤61.5W |
| DC In | DC 12-24V |
| Compatible batteries | V-Lock or Anton Bauer Mount |
| Input voltage (battery) | 14.4V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 579×376.5×45mm / 666×417×173mm (with case) |
| Weight | 8.6kg / 17kg (with case) |
- BM230 Monitor
- Case
- Power Supply
- Quick Start Guide
Specifications
Additional information
| Weight | 17 kg |
|---|---|
| Dimensions | 66,6 × 41,7 × 17,3 cm |
