Lilliput A12 4K Broadcast Monitor
598,37€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
Lilliput A12 4K Broadcast Monitor

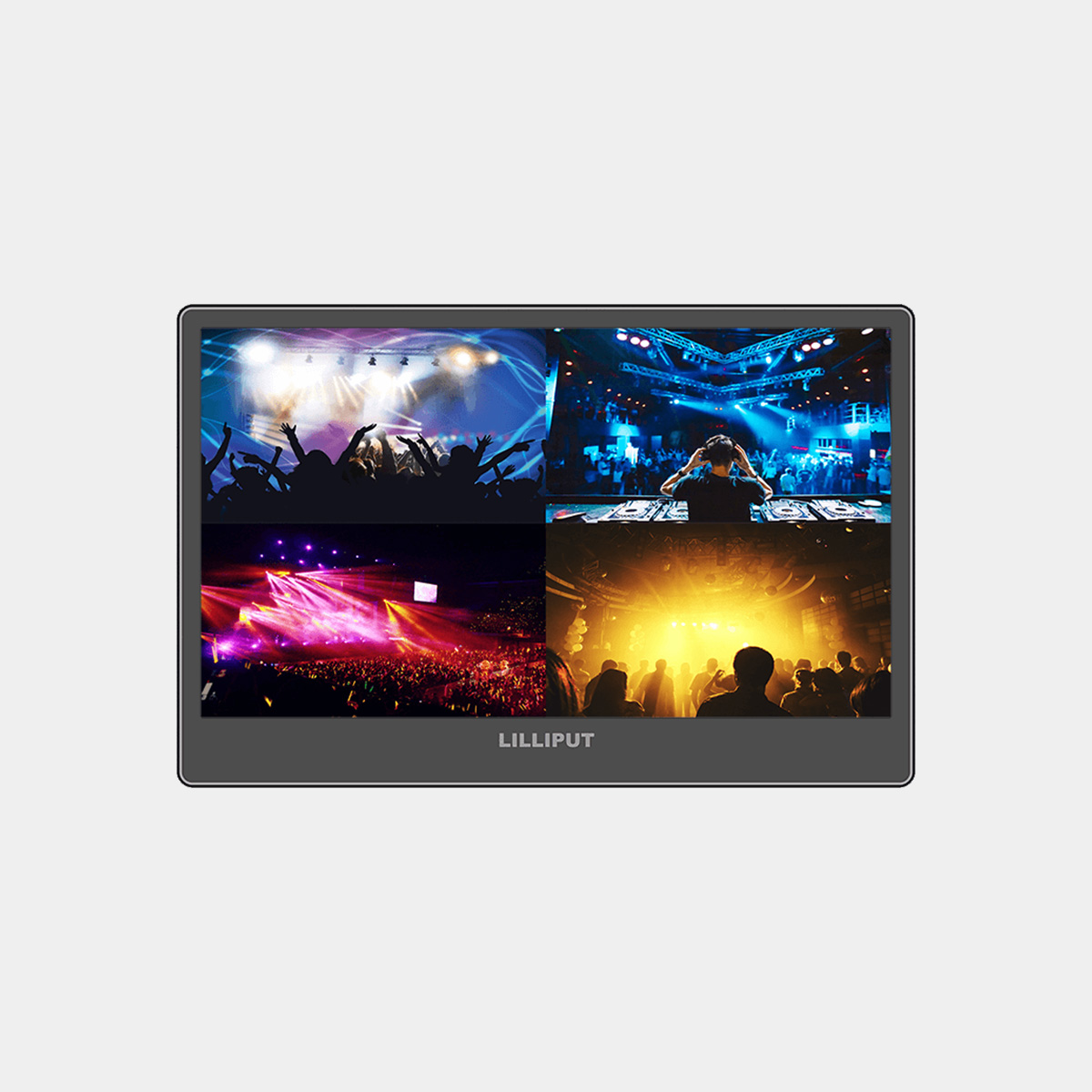

A12 is a broadcast director monitor, which developed specifically for FHD/4K/8K cameras, switchers and other signal transmission devices. Features 3840×2160 Ultra-HD native resolution screen with fine picture quality and good color reduction. It’s interfaces support 3G-SDI and 4×4K HDMI signals input and display; And also supports Quad views splitting from differnet input signals simultaneously, which providing a efficient solution for applications in muliti-camera monitoring. A12 is available for Multiple installation and usage methods, for instance, stand-alone and VESA mounts; and widely applied in studio, filming, live events, micro-film production and other various applications.

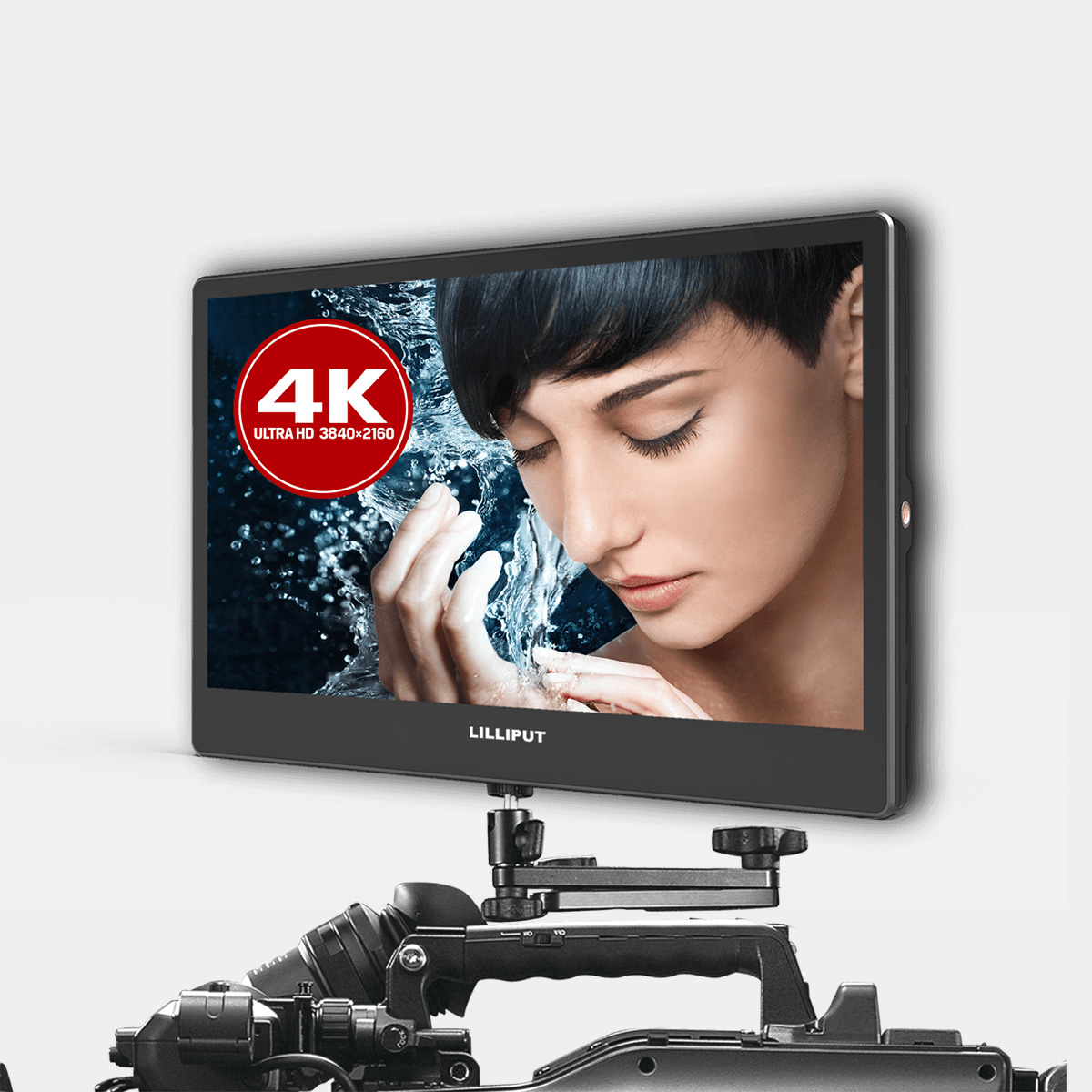

A Better Camera & camcorder Mate
Broadcast director monitor for 4K/Full HD camcorder & DSLR. Application for taking
photos & making movies. To assist cameraman in better photography experience.
Excellent Display
12.5″ 4K 3840×2160 Native Resolution.Featured with 170° viewing angle, 400cd/m² brightness and 1500:1 contrast;
8bit 16:9 IPS display with full lamination technology, see every detail in massive Ultra HD visual quality.
4K HDMI & 3G-SDI & inputs
HDMI 2.0×1: support 4K 60Hz signal input, HDMI 1.4×3: support 4K 30Hz signal input.
3G-SDI×1: support 3G-SDI, HD-SDI and SD-SDI signal inputs
4K Displayport Input
Displayport 1.2 supports 4K 60Hz signal input.. Connecting A12 monitor with personal
computer or other device with displayport interface for video editing or post production.

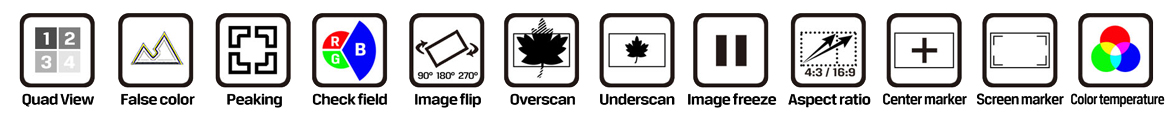

Camera Auxiliary Functions
Plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.

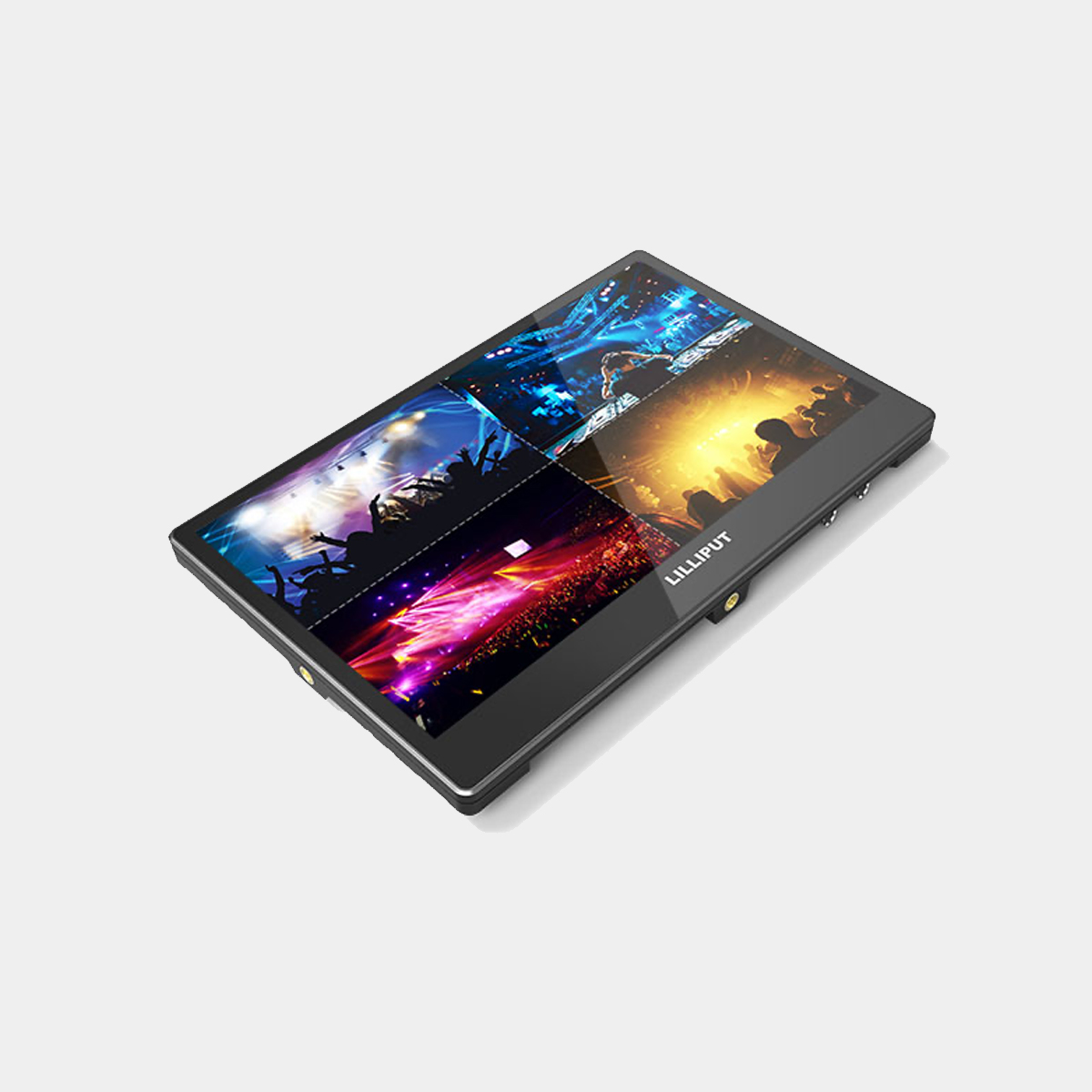

Slim & Portable Design
Slim and light weight design with 75mm VESA and hot shoe mounts, which are
available for a 12.5 inch monitor fixed on the top of DSLR camera and camcorder.
| Display | |
| Size | 12.5” |
| Resolution | 3840×2160 |
| Brightness | 400cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1500:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
| Display-port | 1×DP 1.2 |
| Video Loop Output | |
| SDI | 1×3G |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Display-port | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤16.8W |
| DC In | DC 7-20V |
| Compatible batteries | NP-F Series |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~60℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 297.6×195×21.8mm |
| Weight | 960g |
- A12 Monitor
- Power Supply
- Quick Start Guide
Specifications
Additional information
| Weight | 0,960 kg |
|---|---|
| Dimensions | 30 × 19,5 × 2,2 cm |
