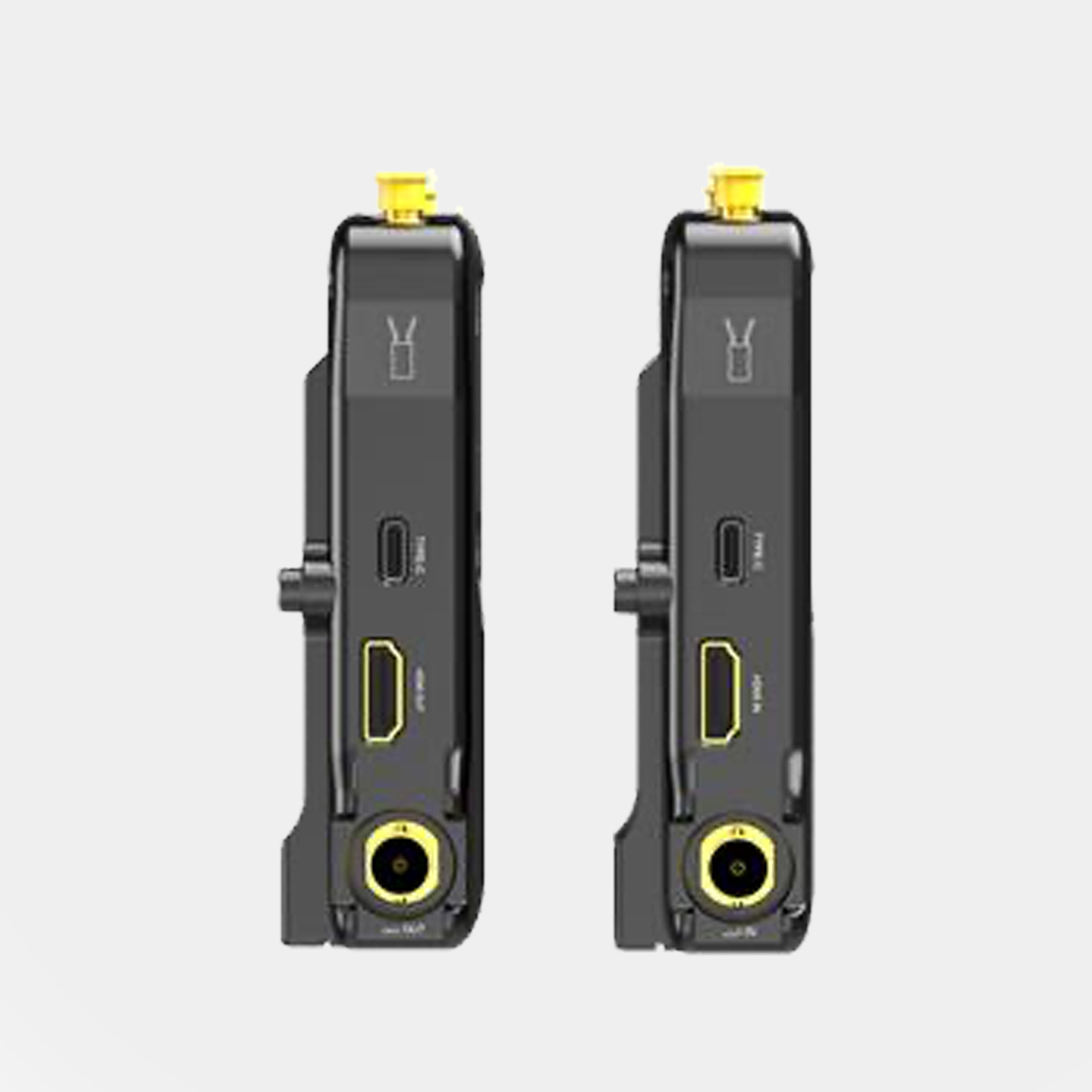

HOLLYLAND MARS 400S TX RX
499,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
HOLLYLAND MARS 400S TX RX
Hollyland MARS-400S (MARS400S) SDI/HDMI Wireless Video Transmission System for DSLR Cameras – up to 400ft range. Please note: New MARS-400S APP available – for instructions please see attached APP User Manual in the Support tab.
Please note: New MARS-400S APP available
APP Features:
- Auxiliary Focus: recognising image colour and making special colour focus
- Zebra: assisting photographic exposure
- Security Frame: providing security boxes with different scale for monitoring specific areas
- False Colour: making the video image-level more distinct
- Loading 3D LUT: easy LOG monitoring
- Also supports Waveform, Brightness Histogram, Zoom, Mono Colour and other features.
The Mars 400S from Hollyland is an entry-level 1080p60 transmission video system featuring a 400′ line-of-sight transmission range. With a compact design, both transmitter and receiver support SDI and HDMI connections. The choice between the two expands your compatibility options.
OLED Display Screen
Allows you to check the status of all devices and control the system with displayed information on the screen.
iQS & Android APP Monitoring
Supports up to 4 app connections while the transmitter is connected to 1 or no receiver.
Channel Scan
Scan current environment on the receiver to find out available channels and avoid the channels with interference.
Three Application Scene Modes
Prioritise your video shooting over video quality, or low latency, or the balance between the both when there is interference.
HDMI + SDI Interfaces
Provides HDMI and SDI connection options.
Industrial Metal Case
Equipped with a stable, reliable and durable metal case to avoid light external damage, and easily cools the system down.
Power Options
Supports 12V DC power supply and NPF series of batteries. One power adapter is included to get you started on the receiver end.
- Multiple Platforms Monitoring: support 1 transmitter with 2 receivers, or 1 transmitter + 1 receiver+ 4 iOS or Androids martphones and tablets. The transmission range is up to400ft.
- Low Latency: less than 0.1s.
- SDI & HDMI: support both SDI & HDMI on the transmitter and the receiver.
- Dual Power Supply Options: support 12V DC power supply and NPF series of batteries. The system also comes with a low battery warning indicator.
- Easy to Operate: both the transmitter and the receiver are equipped with OLED screen for easy setup and device information display.
- Bilingual System: support language switch between English and Chinese.
- Strong Anti-Interference Capability.
- It has 8 channels and supports up to 5 systems working at the same time on one site.
- Channel Scan: automatically scan the current environment to identify channels with or without inteference.
- Scene Mode: support image mode, balance mode and speed mode.
- Easy to Upgrade: support USB firmware upgrade remotely on both the transmitter and the receiver.
| TRANSMITTER | |
| Interface | HDMI Input |
| SDI Input | |
| 2 Antenna Interfaces (RP-SMA Male) | |
| DC Input, Type-C USB | |
| Power Supply Range | 6~16V DC |
| Power Consumption | <10W |
| Net Weight | 192g |
| Size (LxWxH) | 112 x 65 x 23.5 mm |
| External antennas and battery plate excluded | |
| Input Video Format | HDMI: |
| 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.9, 1080p25, 1080p24, 1080p23.98 | |
| 1080i60, 1080i59.94, 1080i50 | |
| 720p60, 720p59.94, 720p50 | |
| 576p50 | |
| 480p60 | |
| SDI: | |
| 1080p60, 1080p50, 1080p59.94 (Level A/B) | |
| 1080i60, 1080i59.94, 1080i60 | |
| 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 | |
| 1080psf25, 1080psf24, 1080psf23.98 | |
| 720p60, 720p59.94, 720p50 | |
| Frequency | 5.1 – 5.9 GHz |
| Modulation Mode | OFDM |
| Transmission Power | Maximum 21 dBm |
| Receiver Strength | 80dBm |
| Transmission Latency | Less than 0.1s |
| Bandwidth | 20MHz |
| RECEIVER | |
| Interface | HDMI Output |
| SDI Output | |
| 2 Antenna Interfaces (RP-SMA Male) | |
| DC Input, Type-C USB | |
| Power Supply Range | 6~16V |
| Power Consumption | < 6W |
| Net Weight | 189g |
| Size (LxWxH) | 112 x 65 x 23.5 mm |
| External antennas and battery plate excluded | |
| Output Video Format | HDMI: |
| 1080p24, 1080p25, 1080p30, 1080p50, 1080p60 | |
| 1080i50, 1080i60 | |
| 720p50, 720p60 | |
| 576p50 | |
| 480p60 | |
| SDI: | |
| 1080p60, 1080p50 (Level A) | |
| 1080i60, 1080i50 | |
| 1080p30, 1080p25, 1080p24 | |
| 1080psf25, 1080psf24 | |
| 720p60, 720p50 | |
| Frequency | 5.1 – 5.9 GHz |
| Modulation Mode | OFDM |
| Transmission Power | Maximum 21 dBm |
| Receiver Strength | 80dBm |
| Transmission Latency | Less than 0.1s |
| Bandwidth | 20MHz |
- 1x Transmitter
- 1x Receiver
- 5x Antenna
- 1x Quick Guide
- 1x Cold Shoe
- 1x Expansion Accessory
- 1x DC Adapter
- 1x Type-C Converter


Specifications
Additional information
| Weight | 2,089 kg |
|---|---|
| Dimensions | 22,6 × 15,6 × 31 cm |
