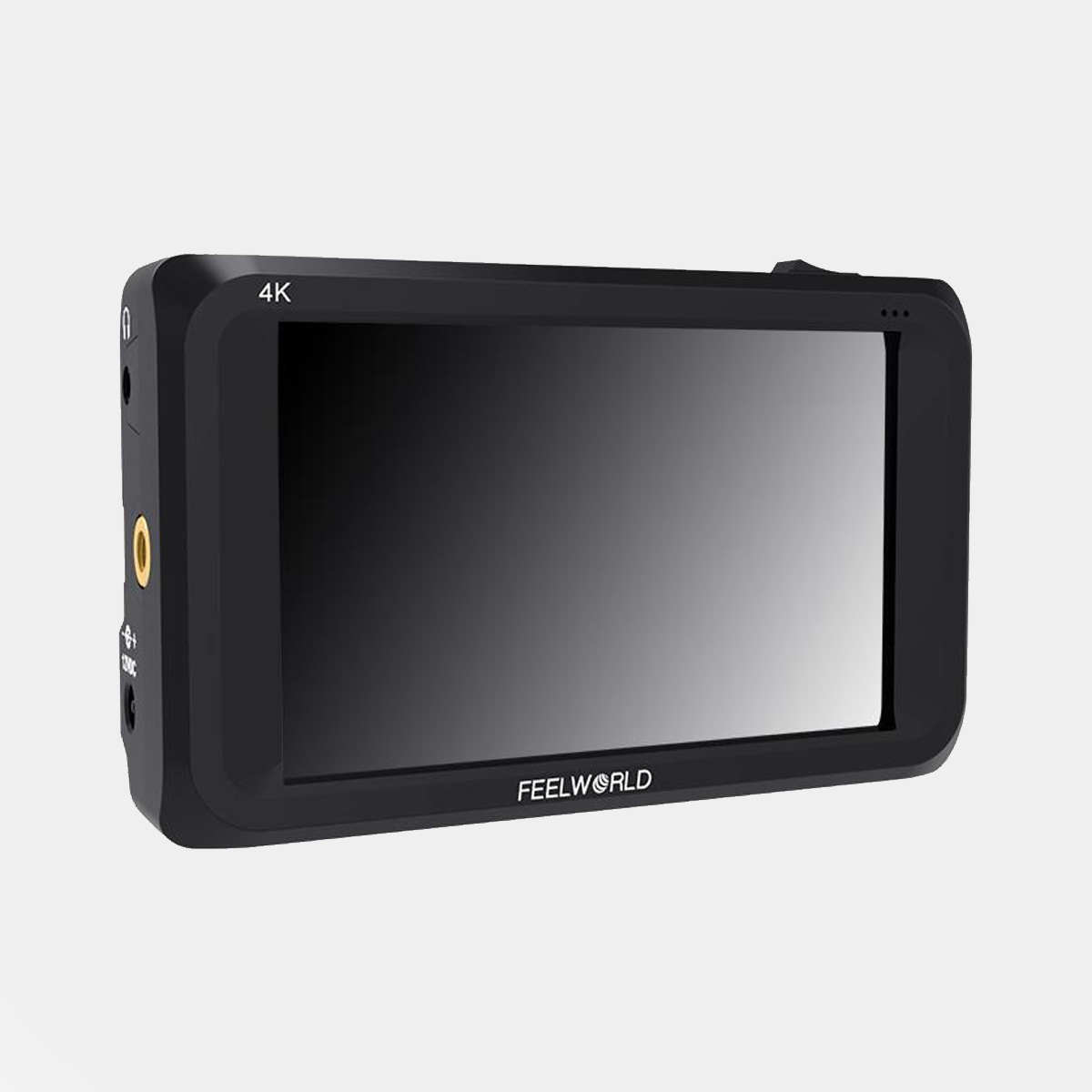

Feelworld S450-M 4.5″ Monitor
226,83€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
FEELWORLD 4.5" 3G-SDI On-camera Monitor with 4K HDMI Input IPS 1280X800 S450-M
FEELWORLD S450-M monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/ videos.
Monitor high-resolution signals in the field with the portable FeelWorld S450-M 4.5″ On-Camera Monitor. Using the HDMI 2.0 input, 4K signals (either UHD or DCI) from your mirrorless, DSLR, or digital cinema camera can be displayed, as well as HD and SD signals. Broadcast cameras and professional equipment can be connected to the SDI input. An SDI loop output ensures that the signal chain can continue beyond the monitor. The 1280 x 800 LCD panel itself sports a 470 cd/m² brightness rating, and a 900:1 contrast ratio. IPS technology is implemented in the panel for vivid colors and wide 160° viewing angles. Essential monitoring tools such as focus peaking, pixel-to-pixel mapping, markers, and more are built right in. A Mini HDMI to HDMI cable, shoe mount, and NP-F battery plate are included.
1. Wide view angle, 4K resolution (3840 x 2160), bright, colorful display
2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) inputs and 3G-SDI loop-through output
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* False Color
* Image Flip (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue, Mono)
* Image Freeze
* Zoom
* pixel to Pixel
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Line Color (Red, Green, Blue, White)
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
| Model | 4K280-9HSD-CO |
| Screen Size | 28″ |
| Color Depth | 1.073G (10 bits) |
| Resolution | 3840×2160 pixels |
| Pixel Pitch | 0.16 (H) × 0.16 (V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 170°(H) / 160°(V) |
| 4 X HDMI | HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4×3 support 4K 30HZ) |
| 1 X BNC | SDI |
| 1 X DVI | DVI |
| 1 X VGA | VGA |
| 2 X RCA | Audio(L/R) |
| 1 X Tally | Tally |
| 1 X BNC | SDI |
| Audio Out | Stereo Headphone, Speaker |
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60) |
| HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30) |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| Input Voltage | DC12～24V (XLR) |
| Power Consumption | ≤45W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 731L×410H×39D (mm) (W/O Suitcase) / 780L×470H×250D (mm) (W/ Suitcase) |
| Unit Weight | 21.7kg (with Suitcase) |
| * Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) |
| * Peaking Focus Assist |
| * False Color |
| * Overscan |
| * Display Rotate (0°, 90°, 180°, 270°) |
| * Check Field (Red, Green, Blue, Mono) |
| * Image Freeze |
| * Zoom |
| * Pixel to Pixel |
| * Center Marker |
| * Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) |
| * Line Color (Red, Green, Blue, White） |
| * Color Temperature Adjustment |
| * Built-in LED tally indicators (Red, Green, Yellow) |
- FeelWorld S450-M 4.5″ On-Camera Monitor
- Mini HDMI to HDMI Cable
- Shoe Mount
- NP-F Battery Plate
- Limited 1-Year Warranty
Specifications
Additional information
| Weight | 0,240 kg |
|---|---|
| Dimensions | 12,8 × 7,8 × 3,2 cm |
