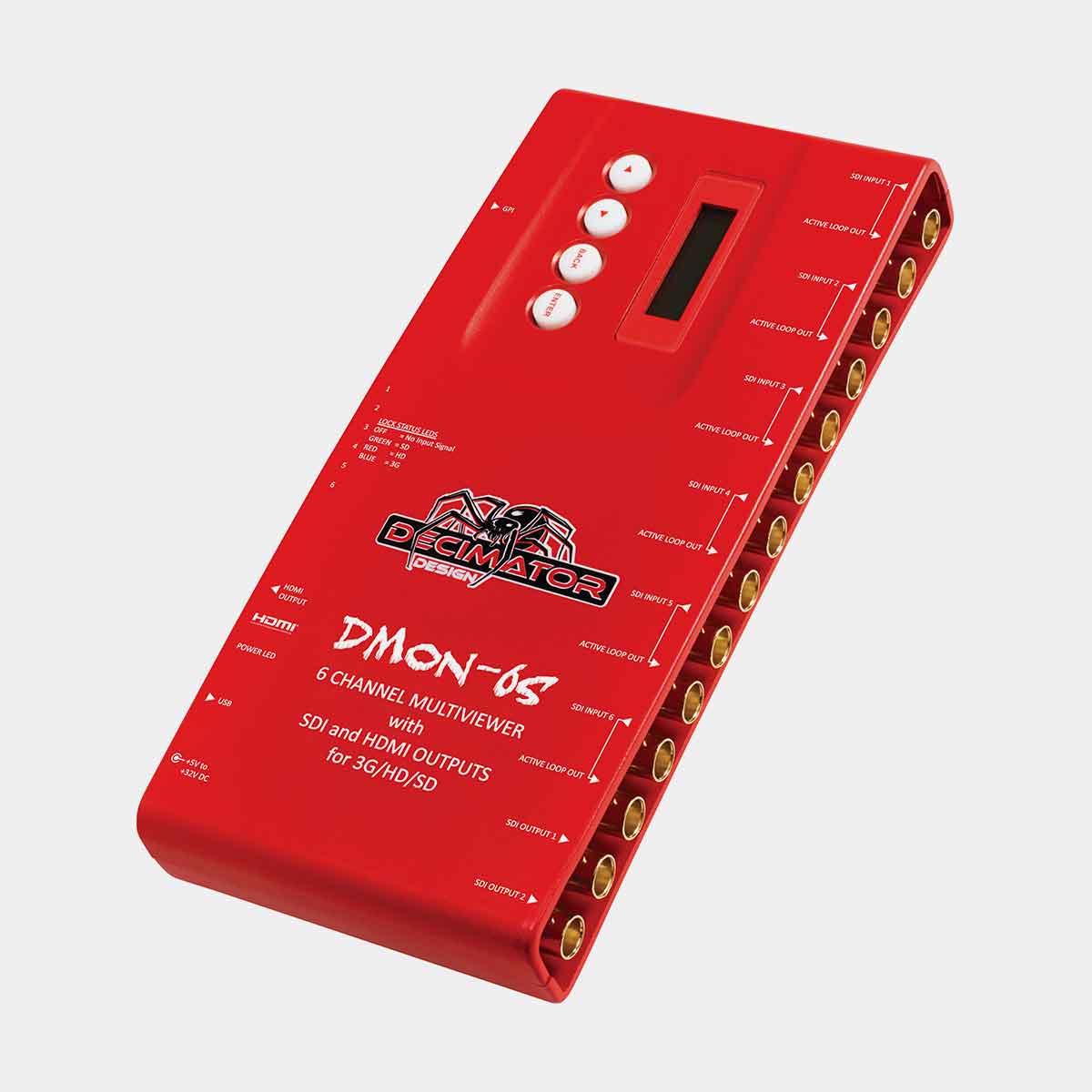

DECIMATOR Video Multiviewers DMON-6S

6 channel multi-viewer with SDI and HDMI outputs for 3G/HD/SD

The DMON-6S from Decimator Design is a low cost, miniature 6 to 1 Multiviewer. The 6 SDI inputs are independent of each other, meaning you can monitor a mix of 3G/HD/SD feeds. Select preset layouts or customise your own depending on the number of feeds you wish to monitor. The Decimator DMON-6S features:
•Robust Aluminium Case w/ easy to use LCD & button control
•Custom Layouts and pre-set layouts with ability to save & load
•16 character customisable UMD overlay per window
•16 channel customisable Audio Metering overlay per window
•Safe Action, Safe Title and Centre Cross overlays
•Fast switching between inputs using Full-Screen scaling
•Dynamic UMDs via TSL protocol on RS422/485
•Selectable output format in both Full-Screen and Multi-Viewer mode
•Low latency buffering for each input allowing non-synchronous inputs
•Linked (3G/HD/SD)-SDI and HDMI outputs
•6x (3G/HD/SD)-SDI inputs with auto-detection
•6x (3G/HD/SD)-SDI active loop copies of each input
•Any 3G/HD/SD format of any frame rate displayed simultaneously
•Variable aspect ratios per quadrand
•32 GPI and RS422/485 on 37-pin DSUB for Dynamic Tallies
•USB port for control (Mac/PC) and firmware updates

DMON-6S comes with a Locking DC Power Supply, USB Cable, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.

The DMON-6S from Decimator Design is a low cost, miniature 6 to 1 Multiviewer. The 6 SDI inputs are independent of each other, meaning you can monitor a mix of 3G/HD/SD feeds.  Select preset layouts or customise your own depending on the number of feeds you wish to monitor.  The Decimator DMON-6S features:

• Robust Aluminium Case w/ easy to use LCD & button control
• Custom Layouts and pre-set layouts with ability to save & load
• 16 character customisable UMD overlay per window
• 16 channel customisable Audio Metering overlay per window
• Safe Action, Safe Title and Centre Cross overlays
• Fast switching between inputs using Full-Screen scaling
• Dynamic UMDs via TSL protocol on RS422/485
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 6x (3G/HD/SD)-SDI inputs with auto-detection
• 6x (3G/HD/SD)-SDI active loop copies of each input
• Any 3G/HD/SD format of any frame rate displayed simultaneously
• Variable aspect ratios per quadrand
• 32 GPI and RS422/485 on 37-pin DSUB for Dynamic Tallies
• USB port for control (Mac/PC) and firmware updates

DMON-6S comes with a Locking DC Power Supply, USB Cable, HDMI Cable & Mounting Bracket.  Warranty for all Decimator Design products is 3 years.
