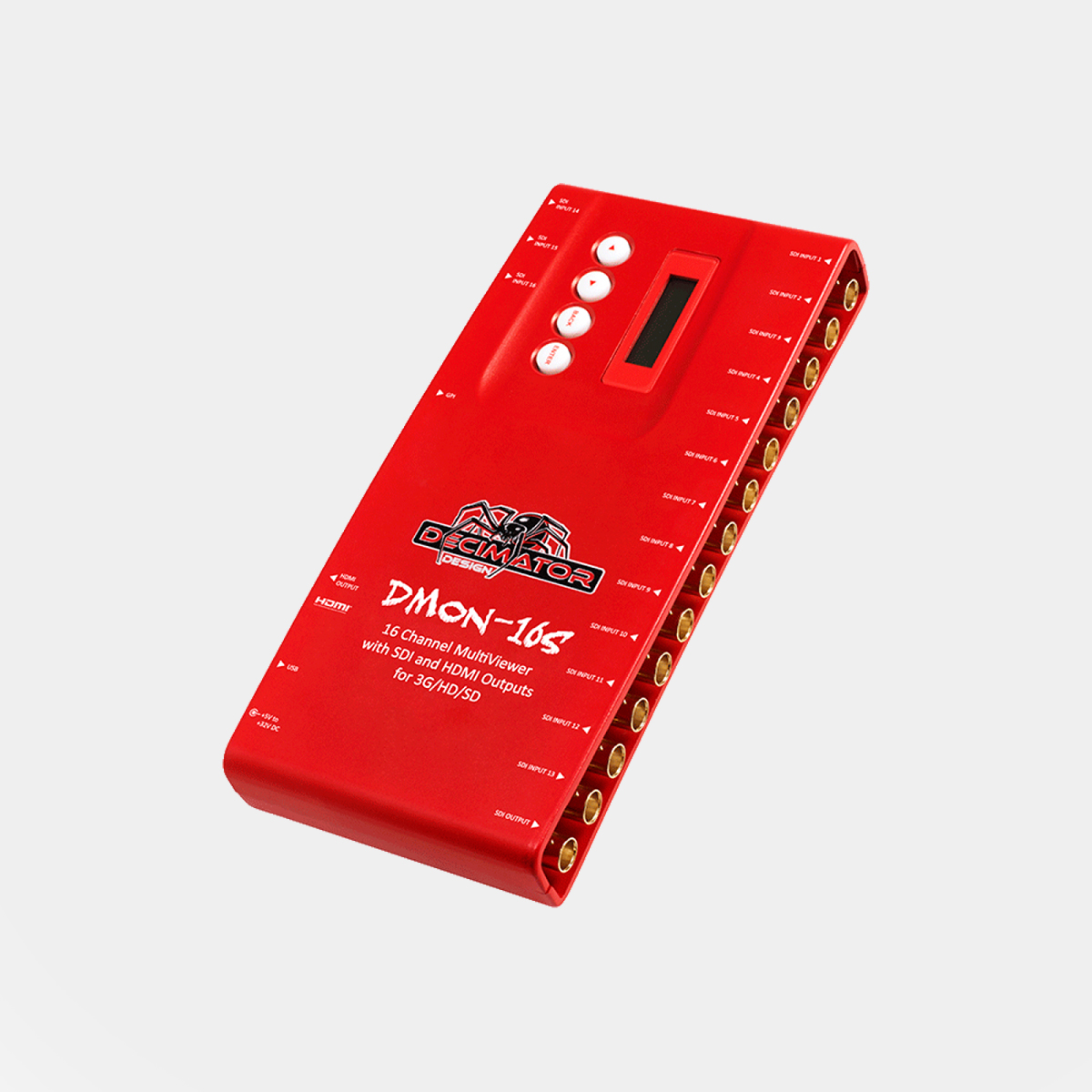

DECIMATOR DMON-16S 16ch Multiviewer w/SDI+HDMI outputs
Decimator Design DMON-16S (DMON16S) 16 Channel Multi-Viewer with SDI and HDMI Outputs for 3G/HD/SD and Custom Layouts. The DMON-16S is a truly portable converter, that incorporates Decimator Designs new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
Firmware Upgrade Available
As of April 2016 there is a Version 2.0.7 USB Control Panel Firmware Upgrade which adds UCP support for Apple OS El Capitan. To download this update, please visit the Decimator downloads page.
The DMON-16S is a truly portable converter, that incorporates Decimator Designs new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
Firmware Upgrade Available
As of April 2016 there is a Version 2.0.7 USB Control Panel Firmware Upgrade which adds UCP support for Apple OS El Capitan. To download this update, please visit the Decimator downloads page.
| SDI INPUT & OUTPUT FORMATS | |
| 3G: | SMPTE 424M@2.97 and 2.967Gb/s |
| 1080p@60/59.94/50Hz | |
| HD: | SMPTE 292M/274M/296M@1.485 and 1.435Gb/s |
| 1080i@60/59.94/50Hz | |
| 1080p/psf@30/29.97/25/24/23.98Hz | |
| 720p@60/59.94/50/30/29.97/25/24/23.98Hz | |
| SD: | SMPTE 259M@270Mb/s |
| 625i50 | |
| 525i59.94 | |
| LCD / BUTTON MENU OPTIONS | |
| HDMI output type | |
| Output Select | |
| Multi-Viewer Output Format | |
| Multi-Viewer Number of Windows | |
| Multi-Viewer Layout | |
| Multi-Viewer Audio Source | |
| Multi-Viewer Reference | |
| Full Screen is Scaled | |
| Input Routing | |
| GPI mode | |
| Setup | |
| HDMI OUTPUT FORMATS | |
| 1080p@60/59.94/50Hz | |
| 1080i@60/59.94/50Hz | |
| 1080p@30/29.97/25/24/23.98Hz | |
| 720p@60/59.94/50/30/29.97/25 | |
| 625i50 | |
| 525i59.94 | |
| INPUTS | |
| 16 x (3G/HD/SD)-SDI | |
| Input Equalization + 100M using Belden 1694A | |
| USB for control and updates | |
| POWER | |
| +5V to +32V DC | |
| Positive Centre Pin | |
| OUTPUTS | |
| HDMI Type A | |
| 1 x SDI (3G/HD/SD)-SDI | |
| DIMENSIONS | |
| 220mm x 103.7mm x 29.5mm (8.7” x 4.1” x 1.2”) |
- 1x DMON-16S
- 1x Power Supply
- 1x HDMI Cable
- 1x USB Cable
- 1x 3 year Warranty
- Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer or 16 to 1 input multiplexer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Safe Action and Safe Title overlay per window with individual enables and adjustment
- Centre Cross overlay per window with individual enable
- Audio ID overlay
- Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
- Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Linked (3G/HD/SD)-SDI and HDMI outputs
- 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- Pass-Through mode allowing any of the 16 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
- 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
Specifications
Additional information
| Weight | 0,625 kg |
|---|---|
| Dimensions | 22 × 10,3 × 3 cm |
