CV612HT-4K – 12x UHD30 HDI/HDBT PTZ Camera
2.940,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

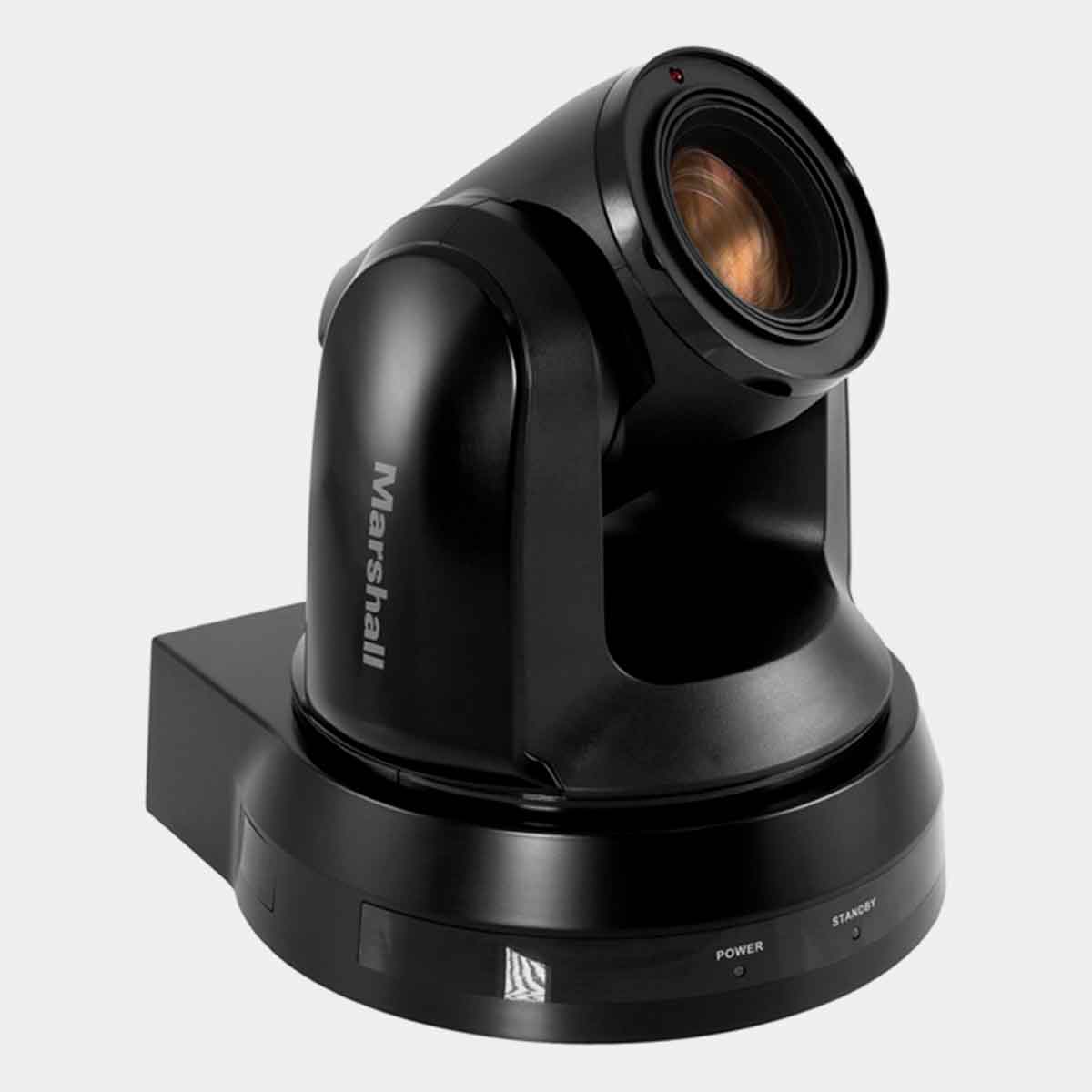

CV612HT-4K - 12x UHD30 HDI/HDBT PTZ Camera
CV612HT-4K is built around a professional grade 1/2.3″ image sensor with a smooth 12x optical zoom and outputs 4K UHD, 1080i/p, and 720p in NTSC and PAL compatible frame rates. It supports both HDBaseT and HDMI outputs, Power over Ethernet (PoE) as well as discrete 12 VDC input via a coaxial connector.
Remote operation and control via RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as gain control, white balance, exposure control, manual/auto focus, image flip, along with 128-position memory provide camera & image control. An integrated tally light enables using this camera as part of a multi-camera live production.
Applications include corporate, broadcast, education, worship, healthcare, medical, government, courtroom, entertainment, music and a variety of studio workflows.
The black CV620 3G-SDI/HDMI PTZ Camera from Marshall Electronics is designed for professional conferencing applications. It captures video at up to 1080p resolution and is equipped with a 5.3 to 110mm lens for up to 20x optical zoom, and it also features a 12x digital zoom.
The CV620 features 3G/HD-SDI and HDMI outputs that support up to 1920 x 1080p60 resolution video. You can control and manage the camera using an IR remote or its RS-232 and RS-422 inputs with Pelco and VISCA serial protocols. It’s compatible with separately available camera controllers such as the Marshall VS-PTC-IP. The camera is built with a smooth and quiet synchronous PTZ motor that pans 340° and tilts 120°.
- 1/2.3″ 9MP UHD Sensor
- 4K/UHD/HD: 3840x2160p(UHD), 1920x1080p(HD),
1920x1080i(HD) & 1280x720p - High Speed: 59.94, 50, 29.97, 25fps (NTSC/PAL)
- Clear Image Zoom: 1.67x (4K:20x), 2.0x (1080p24x), 12x optical – 12x digital
- Wide Angle-of-View @ 3.9mm – 74° Panoramic AOV
- Pan Range: -170° ~ +170°, Tilt Range: -30° ~ +90°
- 128 preset locations with variable transition speeds
- Quiet, smooth, durable PAN-TILT-ZOOM motor allows for quality transitions
- HDBaseT (uncompressed), HDMI outputs
- RS422/RS232 Remote Control Interface at High Comm Speeds
- Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
- Compatible with integrated video conferencing systems (VISCA/PELCO)
- PoE (IEEE802.3af) over HDBaseT (Cat5e/6) – one Cat5e/6 hookup to camera
- Tally Light on front camera panel
| Sensor | |
| Sensor Type | 1/2.3″ 9 Megapixel |
| Resolution & Frame Rates | |
| UHD 3840x2160p | 25 & 29.97 |
| HD 1920x1080p | 50 & 59.94 |
| HD 1920x1080i | 50 & 59.94 |
| HD 1280x720p | 50 & 59.94 |
| Input & Output Connectors | |
| Video Output Connectors | 1x HDMI & 1x HDBaseT |
| Remote Control | 1x RS-485 Interface, 1x RS-232 Input, 1x RS-232 Output |
| Power | 1x 12V DC Input |
| Lens | |
| Focal Length | 3.9mm to 46.8mm |
| Optical Zoom Ratio | 12x |
| Digital Zoom Ratio | 1.67x (UHD) / 2.0x (HD) |
| Max. Aperture | f/1.8 to f/2.0 |
| Control Protocol | |
| Control Protocol | RS-232/RS-422 |
| General | |
| Power Input | 12V DC |
| Weight | 2,000g |
| Dimensions | 17.4cm (l) x 18.6cm (w) x 18.6cm (h) |
- 1x Marshall CV612HT-4K PTZ Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
- 1x RS-422 Connector
- 1x Metal Plate A
- 1x Metal Plate B
- 1x M3 Screws Set
Specifications
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 17,4 × 18,6 × 18,6 cm |
