Blackmagic Universal videohub 72
2.655,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description
Blackmagic Universal videohub 72
If you’re looking for true redundancy and the ability to build your own router with both BNC SDI and optical fibre SDI, then Blackmagic Universal videohub is the perfect choice. Universal Videohub 72 uses SDI or optical fibre modules to allow you to mix and match components to get the router you need with up to 72 x 72 crosspoint.
Universal Videohub includes powerful features such as SD, HD and 3Gb/s SDI auto-switching, built in deck control ports, and ethernet and serial crosspoint control. It also suport dual crosspoint and power supply cards for full redunancy.
So you get flexibility, quality and redundancy at an incredibly affordable price.

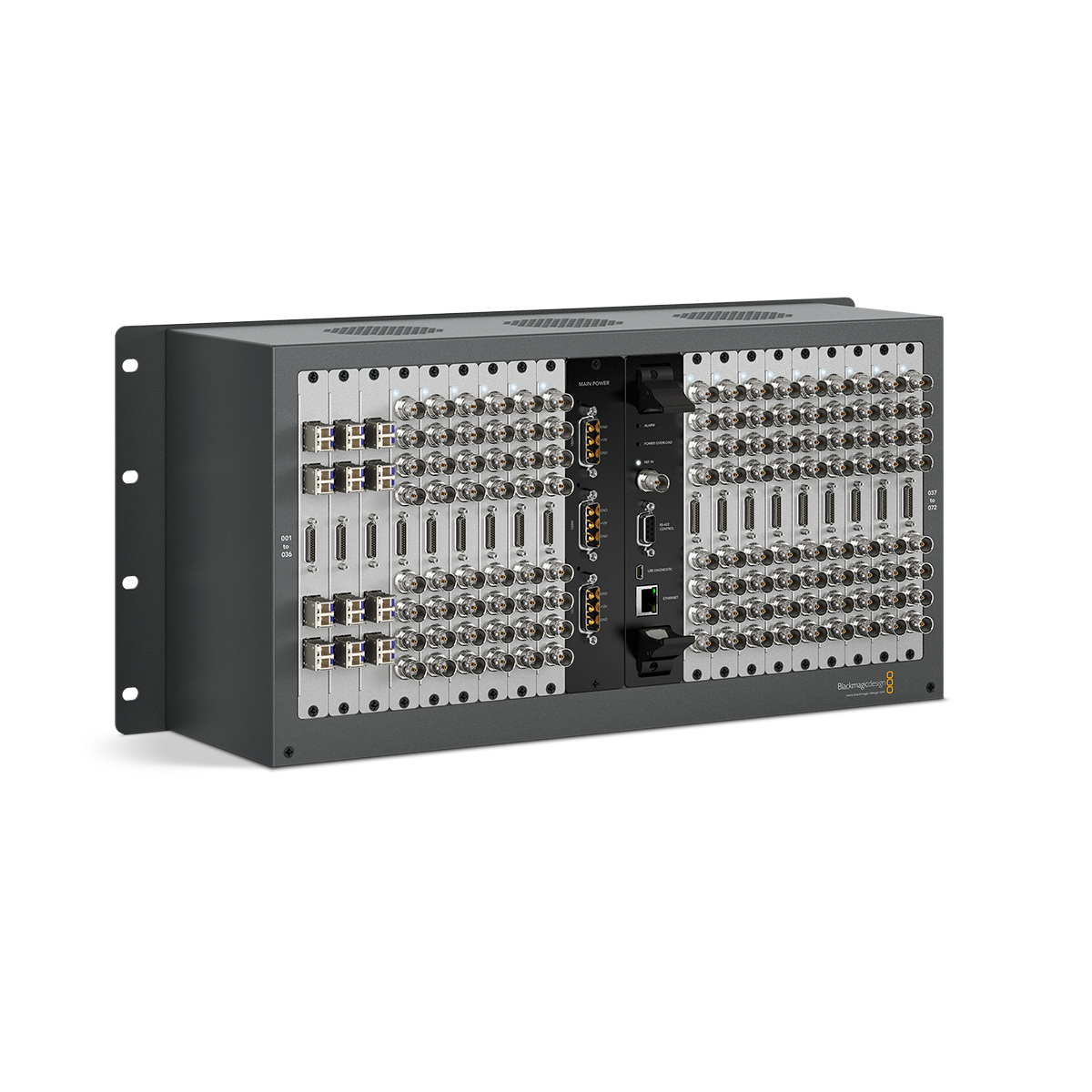

**Please note that the main image above shows a fully populated Universal Videohub 72 – this product ships as a bare-frame into which you add the requirement video cards**
Introducing the exciting new Smart Videohub, the world’s first Ultra HD mixed format routers with built in video monitoring and spin knob router control. Smart Videohub includes the latest 6G-SDI technology so you…
If you’re looking for true redundancy and the ability to build your own router with both BNC SDI and optical fibre SDI, then Blackmagic Universal videohub is the perfect choice. Universal Videohub 72 uses SDI or optical fibre modules to allow you to mix and match components to get the router you need with up to 72 x 72 crosspoint.
Universal Videohub includes powerful features such as SD, HD and 3Gb/s SDI auto-switching, built in deck control ports, and ethernet and serial crosspoint control. It also suport dual crosspoint and power supply cards for full redunancy. So you get flexibility, quality and redundancy at an incredibly affordable price.
**Please note that the main image above shows a fully populated Universal Videohub 72 – this product ships as a bare-frame into which you add the requirement video cards**
Build it yourself
Universal videohub ships unpopulated, without any cards plugged in, so you are free to build your router any way you want! For example, you can plug in BNC SDI cards and optical fibre SDI cards in any combination depending on the equipment you have.This makes it easy to partially load SDI interface cards, to start at an affordable size, and then add more SDI interface cards over time to grow to a 72 x 72 size.
24/7 Broadcast Reliability
Universal Videohub is the router you need for true 24/7 reliability because its card based design lets every electronic component be easily replaced in the rare event of a failure. Universal Videohub has no electric components on the motherboard and all electronics can be hot swapped with replacements in case of failure, or when upgrading. Universal Videohub 288 even includes an extra slot for a redundant crosspoint and power supply. In case of failure, the crosspoint will instantly change over allowing continuous operation.
True Multi Fault Redundancy
Universal Videohub 288 also offers true multiple fault redundancy, where different faults in both crosspoint cards can be handled. In the rare event of multiple faults occuring in both crosspoint cards, Universal Videohub 288 automatically detects and combines the still functioning parts of both crosspoint cards together to keep the router running. That’s true multiple fault tolerance, unique to Universal Videohub, and eliminates any situation where a faulty crosspoint can go unnoticed and then be unavailable if the main crosspoint fails.
World#s Highest Quality 3Gb/s SDI
With new 3Gb/s SDI connections built in, Videohub allows twice the SDI data rate than normal HD-SDI. Use 3GB/s SDI for high resolution real-time 2048 x 1556 feature film editing. 3Gb/s SDI has full compatability with SD, HD or 2K in 4:4:4 or 4:2 all with a single BNC cable. With 3Gb/s SDI built in, you have full compatibility with all your current standard definintion SDI and high definition SDI equipment, plus any future formats.
| SDI Video Input | Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI. Can be BNC SDI or optical fibre SDI |
| SDI VIdeo Output | up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fibre SDI |
| Reference Input | Blackburst and TriSync for SD, HD and 2K |
| Mutli-Rate Support | Auto detection of SD, HD and 3Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVC-ASI |
| Updates | USB 2.0 high speed (480Mb/s) interface |
| Router Control | Use either RJ45 Ethernet or USB 2.0 high speed interface or Smart Control shared over IP network |
| Router Configuration | Use either RJ45 Ethernet or USB 2.0 high speed interface or Smart Control shared over IP network |
| RS-422 | 1x Input for controlling router crosspoint switching |
| Re-clocking | On all SDI outputs |
| Standards | |
| SD Format Support | 625/25 PAL and 525/29.97 NTSC |
| HD Format Support | 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition and 2K.SDI switches between 270Mb/s standard definition SDI, 1.5Gb/s HD-SDI and 3Gb/s HD and 2K SDI. |
| SDI Colour Precision | 4:2:2 and 4:4:4 10 bit |
| SDI Colour Space | YUV and RGB |
| SDI Auto Switching | Automatically selects between SD-SDI, HD-SDI, 3Gb/s SDI and DVB-ASI on each input so that each can be running a different television standard |
| SDI Metadata Support | Video payload indentification ancillary data as per SMPTE 352M |
| Extras | |
| Software Control | Router control included free for Windows and Mac OS X |
| Firmware Upgrade | Via included firmware updater application |
| Installation | 5RU size. Less than 6 inches deep |
| Power Fail Protection | Router connections preserved and restored instantly at power on independently of host computer |
| Power Supply | Redudant power supply options are available. GPI alarm for connection external alarms |
| Product Warranty | 3 year limited manufacturers warranty |
- Blackmagic Design Universal Videohub 72 Rack Frame
- Router Control Software
- 3-Year Limited Manufacturer’s Warranty
Specifications
Additional information
| Weight | 8,500 kg |
|---|---|
| Dimensions | 54,35 × 33,52 × 23,87 cm |
