Blackmagic Teranex Mini IP Video 12G
445,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

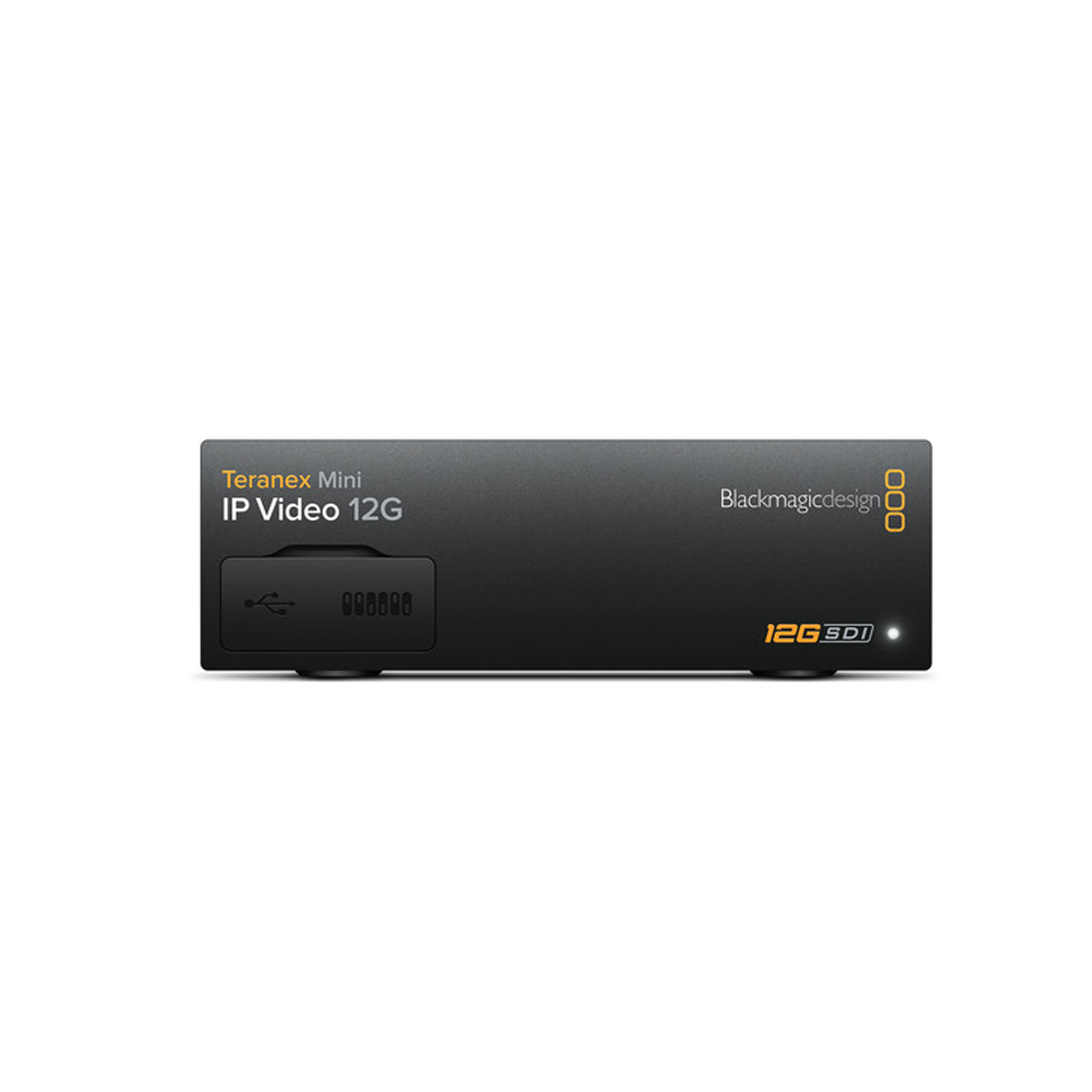

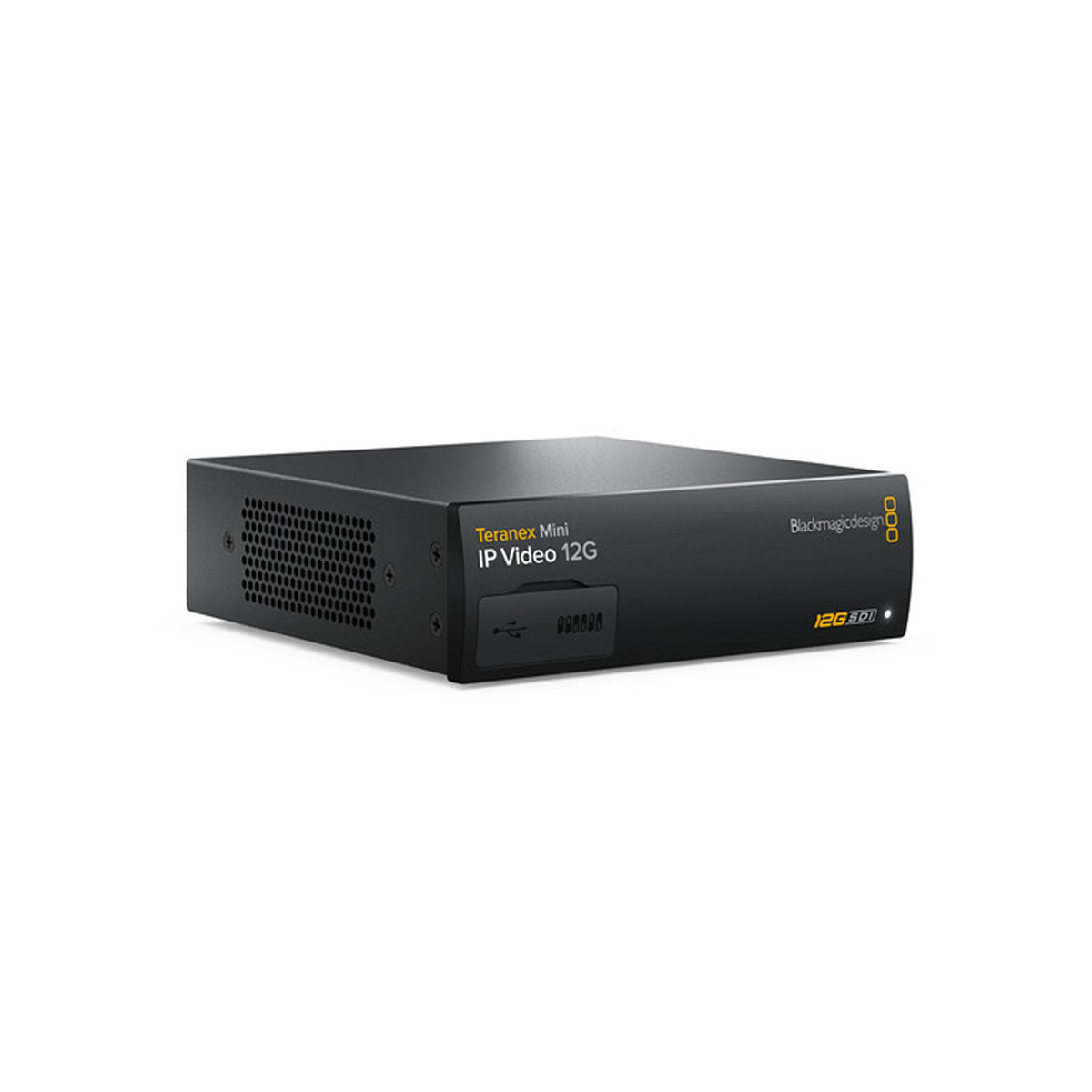

Blackmagic Teranex Mini IP Video 12G
With the Blackmagic Teranex Mini now you can convert video to IP and route it over your existing ethernet network, or you can convert IP video back to SDI.
The Teranex Mini IP Video 12G uses standard Blackmagic Videohub software and hardware control panels to configure and switch IP video over ethernet as easily as SDI signals.
You get 12G-SDI and the low latency broadcast quality TICO codec so you can route HD over the built in gigabit ethernet connection or Ultra HD over 10G ethernet with an optional 10G SFP.
Supporting up to 12G-SDI data rates, the Teranex Mini IP Video 12G from Blackmagic Design is a 12G-SDI/Ethernet encoder/decoder that supports TICO encoding for high-quaity video over Ethernet transmission. The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. One unit is required at each end—multiple units can be used on the same network—controlled by a Mac or Windows computer using the included Blackmagic Video Hub software.

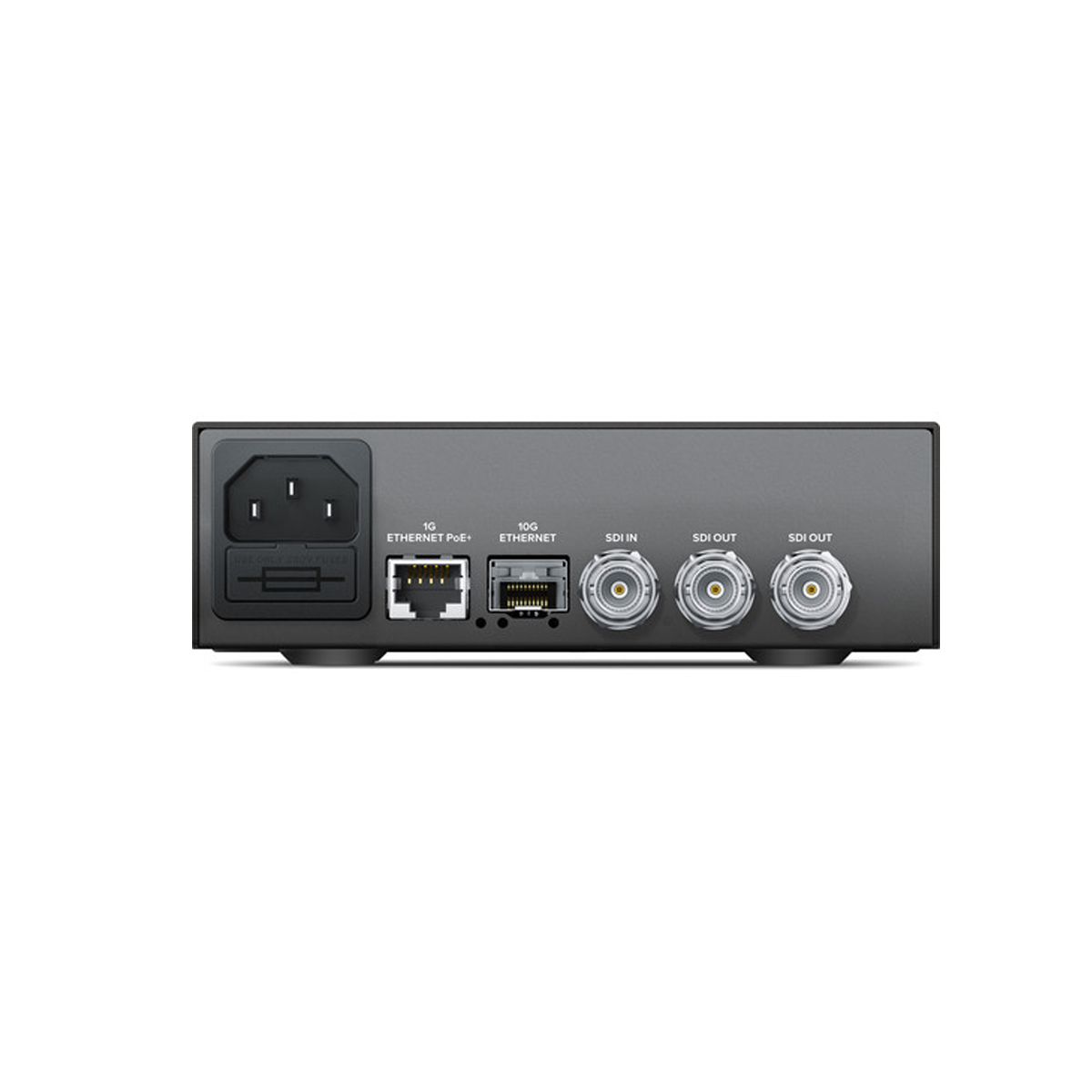

The unit supports up to 1080p60 over a Gigabit Ethernet LAN with higher data rates supported by using an optional 10G optical Ethernet connector. The Mini IP Video 12G has a single 12G-SDI input and two 12G-SDI outputs in addition to the Gigabit Ethernet connector and a slot for an optional 10G SFP. An optional Smart Front Panel with a built-in LCD display provides local setup and control and replaces the standard panel with DIP switch setup that comes with the unit. Up to three units can be easily installed in an optional 1 RU 19″ rack tray, and it features a built-in 90-240V power supply, and all you’ll need is a standard IEC power cable, sold separately.
- Requires a minimum of two units—one for encoding the signal and one for decoding the signal.
- TICO encoding is a visually lossless compression designed to let you distribute video across an IP network.
- The unit supports signals up to 1080p60 over a standard Ethernet connection. For support of signals up to 12-G SDI (4K DCI or 4K UHDF), an optional 10G fiber optic Ethernet LC connector is required.
- Blackmagic Videohub Software can be used on Windows or Mac OS computers to turn them into a router server that can manage the connections between multiple units so you can build a large custom sized router on your network.
- Supports AC voltage using an optional IEC cable (Blackmagic units do not ship with a power cable) or you can power it via PoE+ with a compatible router.
- Setup is done via built-in DIP switches, Blackmagic Teranex setup software, or an optional Teranex Mini Smart Panel with LCD screen.
- You can control your Mini 12G-IP via the optional Teranex Mini Smart Panel with LCD screen or Blackmagic Video Hub software.
- Embedded audio is supported—there are no separate audio inputs/outputs.
- Blackmagic Teranex setup and Video Hub software is included on the SD card that ships with your unit.
- Convert video to IP and route it over your existing ethernet network
- Convert IP video back to SDI
- Route HD over the built in gigabit ethernet connection
| Connections | |
| SDI Video Inputs | 1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI |
| SDI Video Outputs | 2 x 10-bit HD-SDI, 6G-SDI and 12G-SDI |
| Ethernet | 3G-SDI up to 1080p60 using TICO encoding/decoding |
| Optional 10G optical data ethernet supporting Ultra HD | |
| up to 2160p60 using TICO encoding/decoding | |
| Multi Rate Support | Auto detection of HD-SDI, 6G-SDI or 12G-SDI |
| Updates | USB 2.0 high speed (480Mb/s) interface or via Ethernet |
| Configuration | Ethernet or USB 2.0 for firmware updates and IP address setting |
| Reclocking | On all SDI outputs, auto switching between |
| high definition, 6G-SDI or 12G-SDI video | |
| Standards | |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, |
| 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, | |
| 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60 | |
| Automatic detection of Level A or Level B SDI on 1080p50, 1080p59.94 and 1080p60 | |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4K DCI 23.98p ,4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, |
| SMPTE 425M, ITU-R BT.656 and ITU-R BT.601 | |
| SDI Video Rates | SDI video input is switchable between high definition, |
| ultra high definition and 4K. SDI switches between | |
| 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI | |
| SDI Video Sampling | 4:2:2 plus 4:4:4 up to 4K DCI 30p |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24-bit |
| SDI Colour Precision | 10-bit 4:2:2 and 4:4:4 |
| SDI Colour Space | YUV or RGB for inputs, YUV for SDI outputs |
| SDI Auto Switching | Automatically selects between HD-SDI, 6G-SDI and 12G-SDI |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
| Display | Optional Teranex Mini Smart Panel with 1.5 inch LCD for menu settings. |
| Software | |
| Software Control | Blackmagic IP Video Setup and Videohub Router Control Software |
| included on SD card for Windows and Mac OS X | |
| Internal Software Upgrade | Via included updater application. |
| Operating Systems | Mac OS X 10.11 El Capitan, macOS Sierra or later |
| Windows 8.1 or Windows 10 | |
| Settings Control | |
| Control | Built in switches, setup software utility, or optional front mounted |
| Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons | |
| Power Requirements | |
| Power Supply | IEC power cable required. 90 – 240V AC input |
| Power Fail Protection | Settings preserved and restored instantly at power on |
| Power over Ethernet | Can be powered via 48V DC using PoE+ (power over Ethernet) |
| Power Consumption | 16 Watts |
| Dimensions | 14 x 17 x 4.4 cm (5.5 x 6.6 x 1.7 inches) |
| Weight | 0.58 kg (1.2 lbs) |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
- 1x Teranex Mini – IP Video 12G
- 1x SD card with software and manual
- 3 Year Limited Manufacturer’s Warranty.
Specifications
Additional information
| Weight | 0,788 kg |
|---|---|
| Dimensions | 17 × 14 × 4,4 cm |
