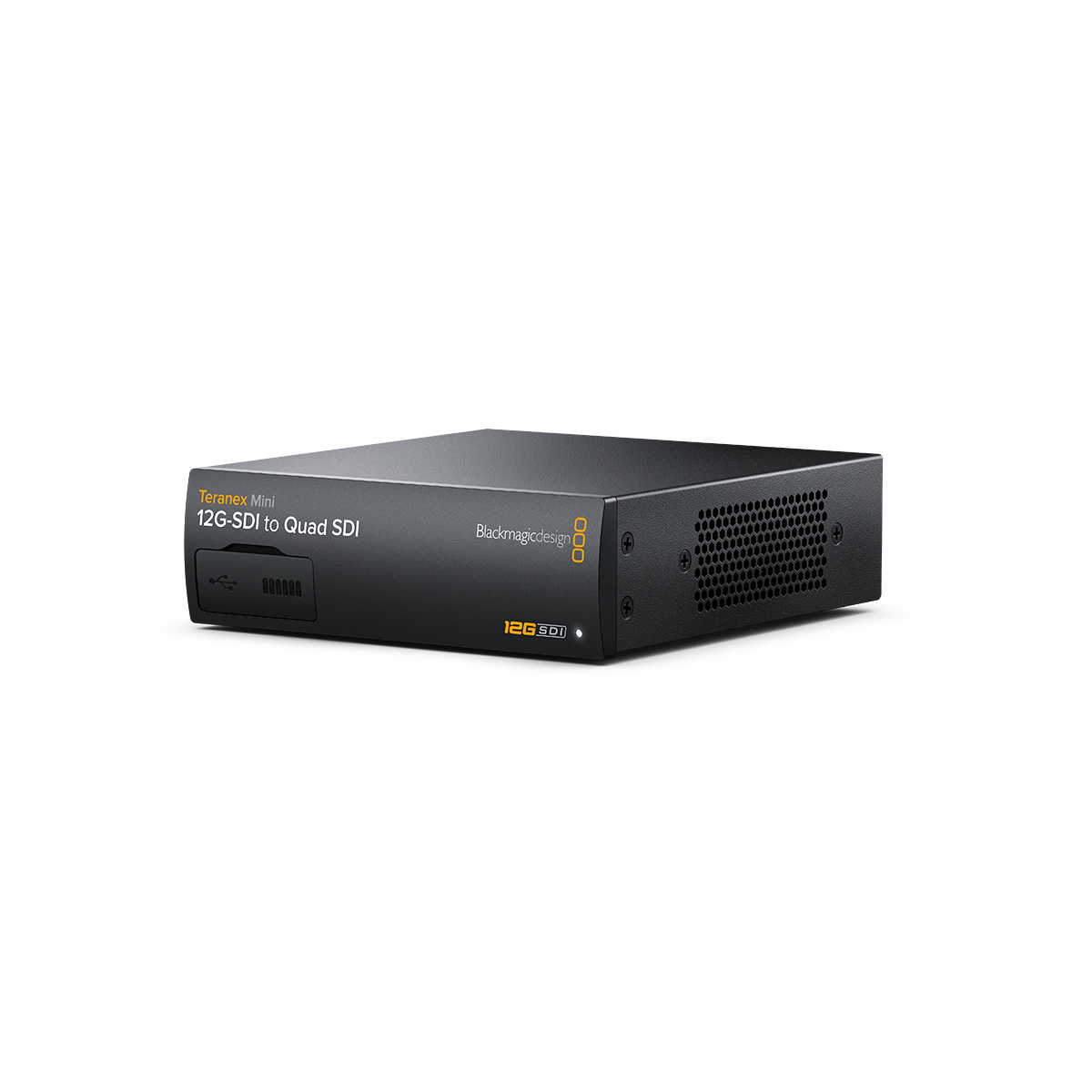

Blackmagic Teranex Mini 12G-SDI to Quad SDI
Introducing Teranex Mini, the next generation 12G-SDI converters with award winning Teranex quality and support for all SD, HD and Ultra HD formats up to 2160p60.

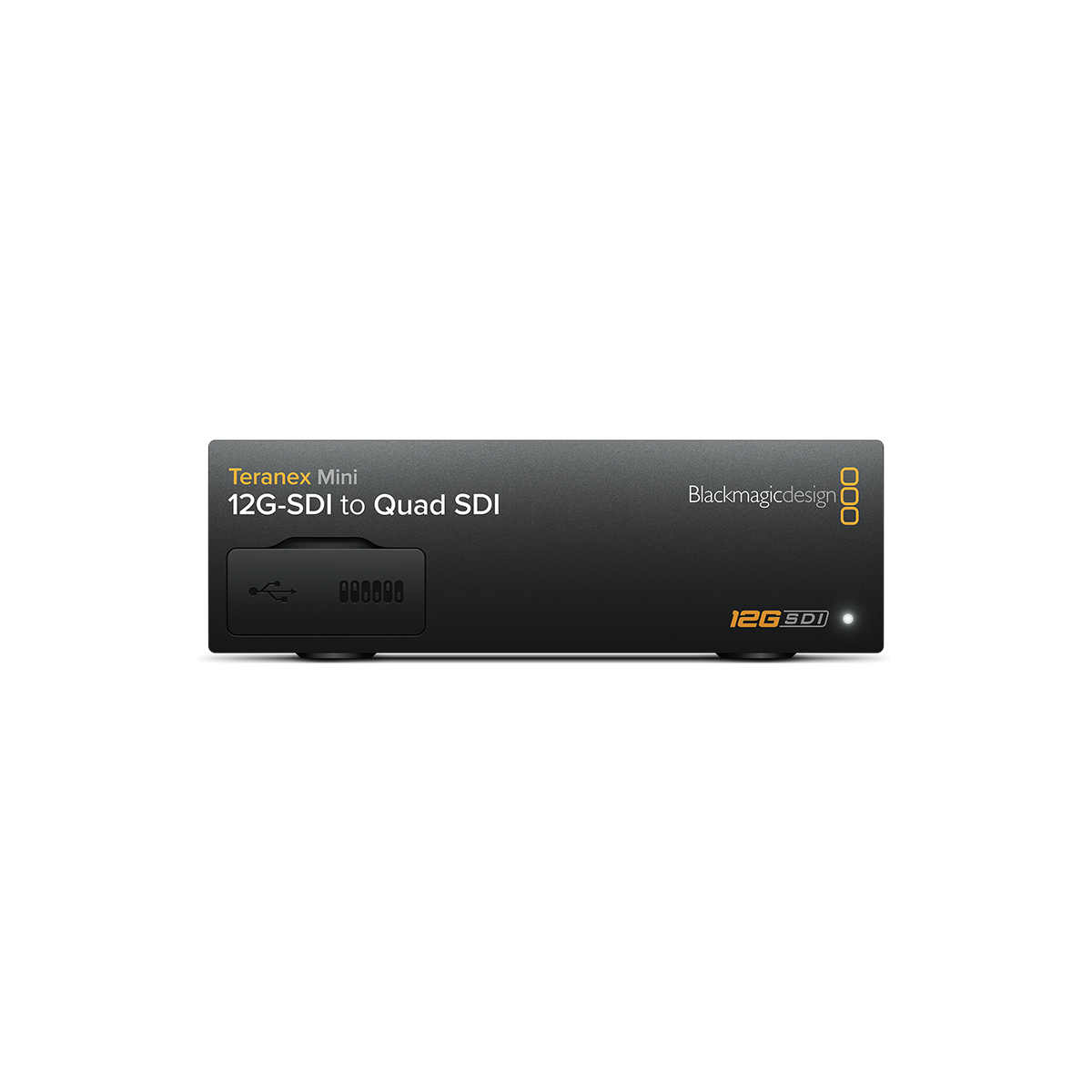

All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power. Teranex Mini features a user upgradable front panel that includes a colour display and user controls so you can quickly monitor video and change settings right from the front of the converter You get all of the same great features of regular mini converters and so much more.
Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment.
Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style…
Introducing Teranex Mini, the next generation 12G-SDI converters with award winning Teranex quality and support for all SD, HD and Ultra HD formats up to 2160p60. All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power. Teranex Mini features a user upgradable front panel that includes a colour display and user controls so you can quickly monitor video and change settings right from the front of the converter You get all of the same great features of regular mini converters and so much more.
Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment.
Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.
Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment. Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays.
Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.

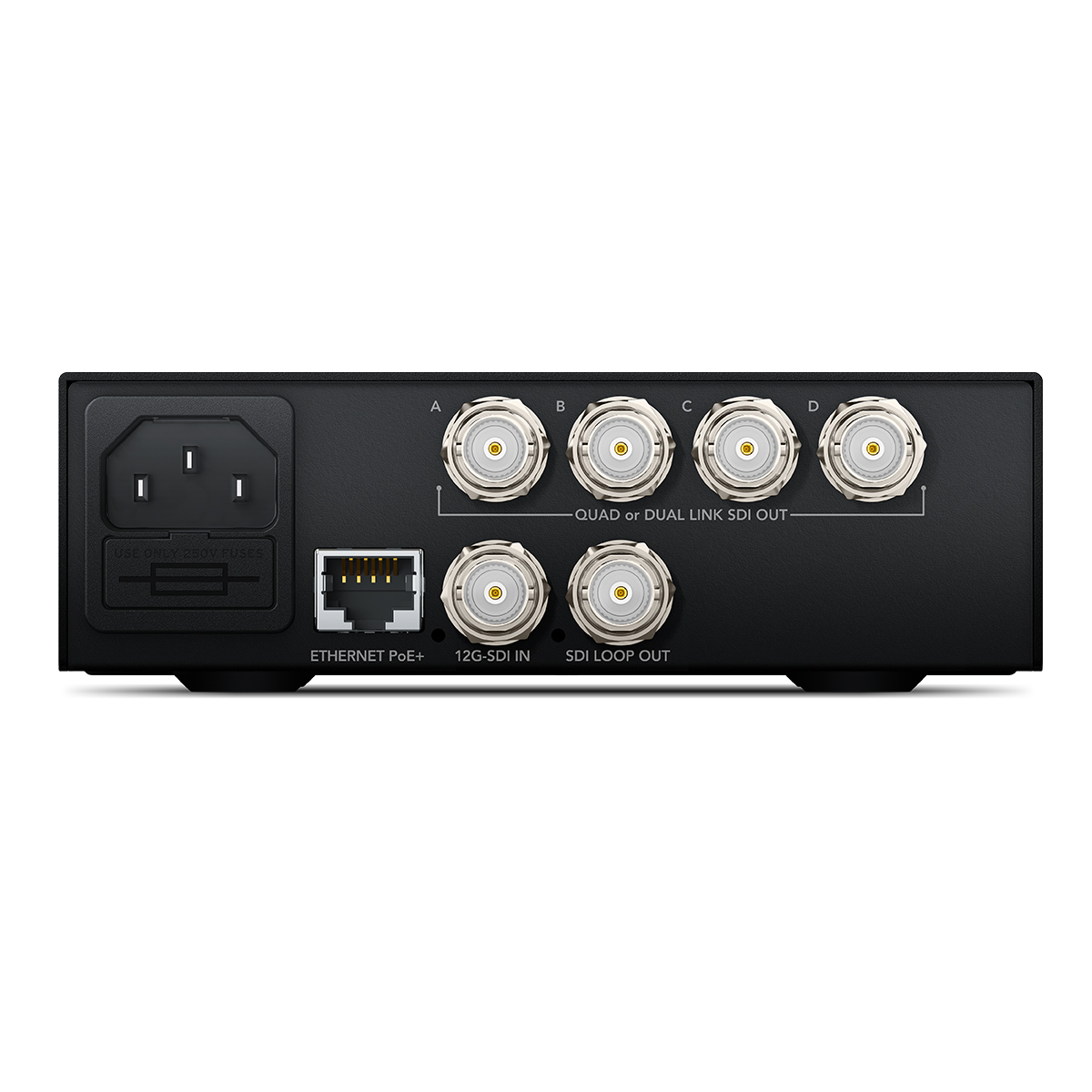

| Connections | |
| SDI Video Input | 1 x 12G-SDI SD/HD/2K/4K auto switching. |
| SDI Video Output | 4 x 3G-SDI outputs |
| Multi Rate Support | Automatic switching between SD/HD/2K and 4K |
| Updates and Configuration | USB or Ethernet |
| Re-Clocking | Yes |
| Standards | |
| SD Format Support | 525/29.97 NTSC, 625/25 PAL |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. |
| 2K Format Support | 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25. |
| Ultra HD Format Support | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60 |
| 4K Format Support | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30. |
| SDI Compliance | SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082 |
| SDI Video Rates | SDI video connections are switchable between standard |
| definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. | |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Colour Space | YUV & RGB |
| Software | |
| Software Control | Mac OS X™ and Windows™ software upgrade via USB and Ethernet. |
| Internal Software Upgrade | Via included updater application. |
| Settings Control | |
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility. |
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons. |
| Power Requirements | |
| Power Supply | 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 – 240V AC Input. |
| Power Over Ethernet | Can be powered via 48V DC using PoE+ (power over ethernet). |
| Power Consumption | 16 Watts |
| Operational Voltage Range | 90 – 240V AC |
| Physical Specifications | 140mm x 44mm x 170mm |
- 1 x Teranex Mini – 12G-SDI to Quad SDI
- 1 x Software SD Card
- 3 Year Limited Manufacturer’s Warranty.
Specifications
Additional information
| Weight | 0,883 kg |
|---|---|
| Dimensions | 17 × 14 × 4,4 cm |
