Blackmagic SDI Distribution Converter
179,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

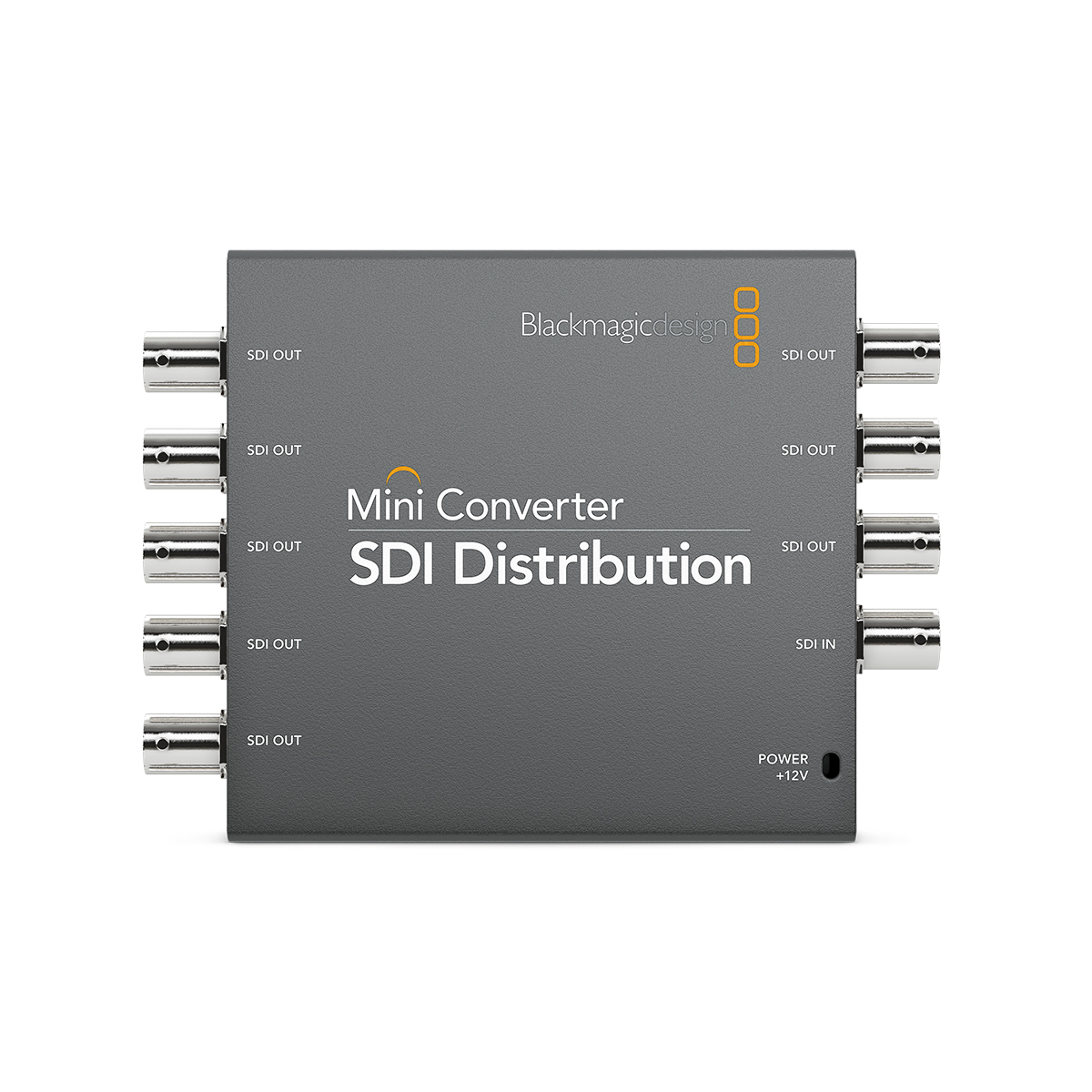

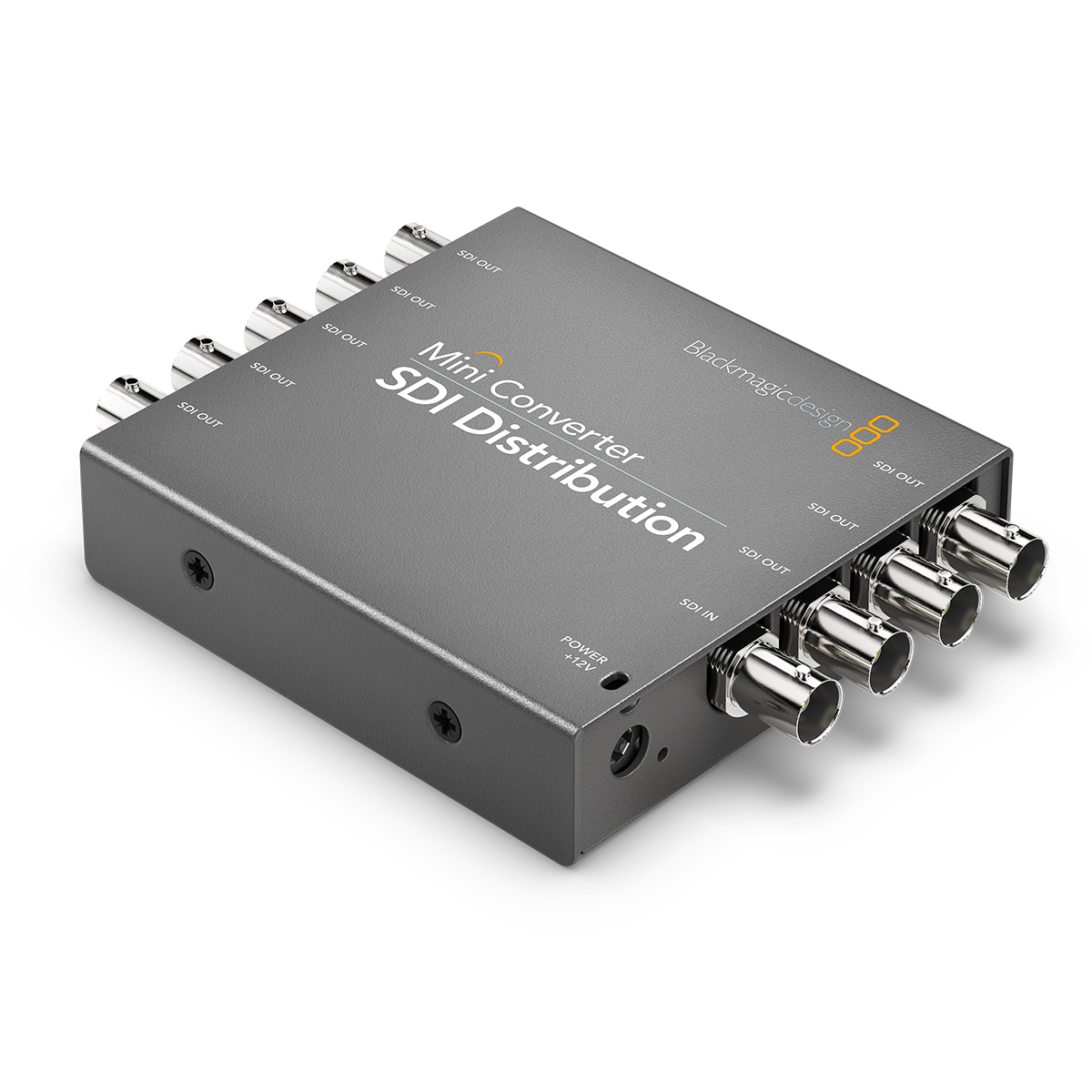

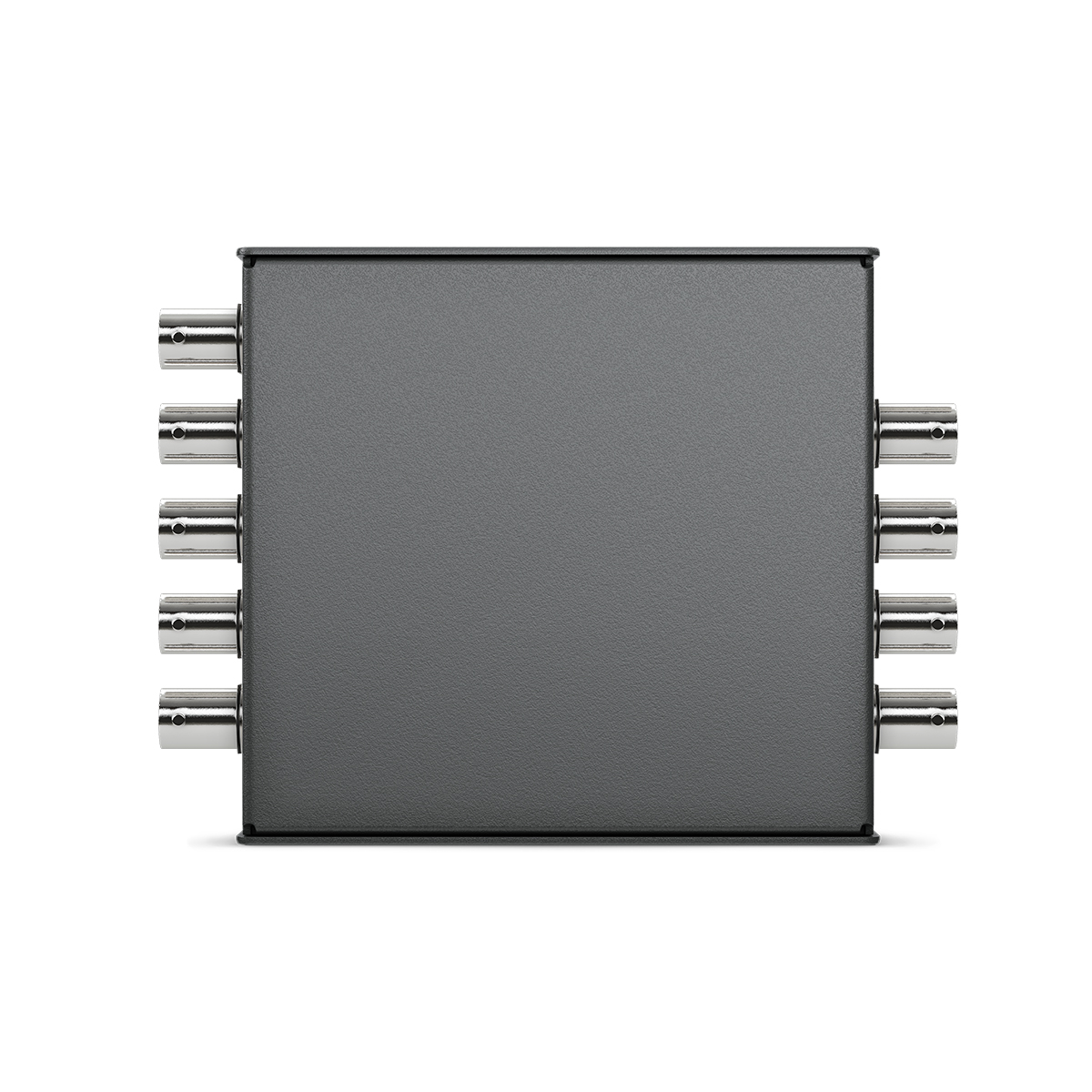

Blackmagic SDI Distribution Converter
Blackmagic Design Mini Converter – SDI Distribution (BMD-CONVMSDIDA). Ideal for connecting the same signal to several devices at once. SDI distribution has an SD, HD and 3Gb/s auto switching input and provides 8 re-clocked outputs. It even handles ASI!. It also supports ancillary data and embedded audio!
Ideal for connecting the same signal to several devices at once. SDI distribution has an SD, HD and 3Gb/s auto switching input and provides 8 re-clocked outputs. It even handles ASI!. It also supports ancillary data and embedded audio!
High Quality SDI
Mini Converters are built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra low noise analogue video and audio for a true broadcast quality solution. You also get the latest broadcast technology such as re-clocking and 3 Gb/s SDI.
New 3 Gb/s SDI Technology
With the latest 3 Gb/s SDI technology built into Mini Converters you get modern broadcast technology that’s future proof.
International Power Supply
Unlike other converters, a high quality low noise universal power supply is included with international socket adapters for all countries. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight and secure!
| Connections | SDI Distribution |
| SDI Video Input | Switchable between SD, HD and 3 Gb/s SDI. |
| SDI Video Outputs | 8 outputs automatically match the SDI video input |
| Analog Video | None |
| HDMI | None |
| Optical Fibre Video Input | None |
| Optical Fibre Video Output | None |
| Optical Fibre Audio Input | None |
| Optical Fibre Audio Output | None |
| Analog Audio | None |
| AES/EBU Digital Audio | None |
| SDI Redundant Input | None |
| Reference Input | None |
| Multi Rate Support | Auto detection of HD or SD inputs |
| Updates and Configuration | None |
| Re-clocking | Yes |
| Standards | |
| SDI Format Support | NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p and 2K PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television Standard sample rate of 48kHz and 24 bit |
| SDI Color Precision> | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI. |
| nalog Format Support | None |
| Analog Color Precision | 4:2:2 |
| Analog Color Space | YUV |
| HDMI Format Support | None |
| HDMI Color Precision | 4:2:2 and 4:4:4 |
| HDMI Color Space | YUV and RGB |
| Copy Protection | Mini Converter HDMI to SDI cannot convert from copy protected HDCP encrypted HDMI sources to SDI. |
| Extras | |
| Software Control | None |
| Settings Control | None |
| Firmware Upgrade | None |
| Power Supply | +12V universal power supply included. Cable tie point. |
| 110v Power Consumption | 40mA |
| 220v Power Consumption | 20mA |
| Product Warranty | 3 Year Limited Manufacturer’s Warranty. |
- 1 SDI Distribution Converter
- 3-Year Limited Manufacturer’s Warranty
Specifications
Additional information
| Weight | 0,550 kg |
|---|
