Blackmagic GPI and Tally Interface
445,00€ c/IVA
- Estimate delivery times: 3-5 days (Portugal Continental), 5-7 days (Portugal Ilhas)
- Returns accepted if product not as described, seller pays return shipping; or keep the product & agree refund with seller
- Easy payment online or bank wire transfer (Portugal)
Details & Description

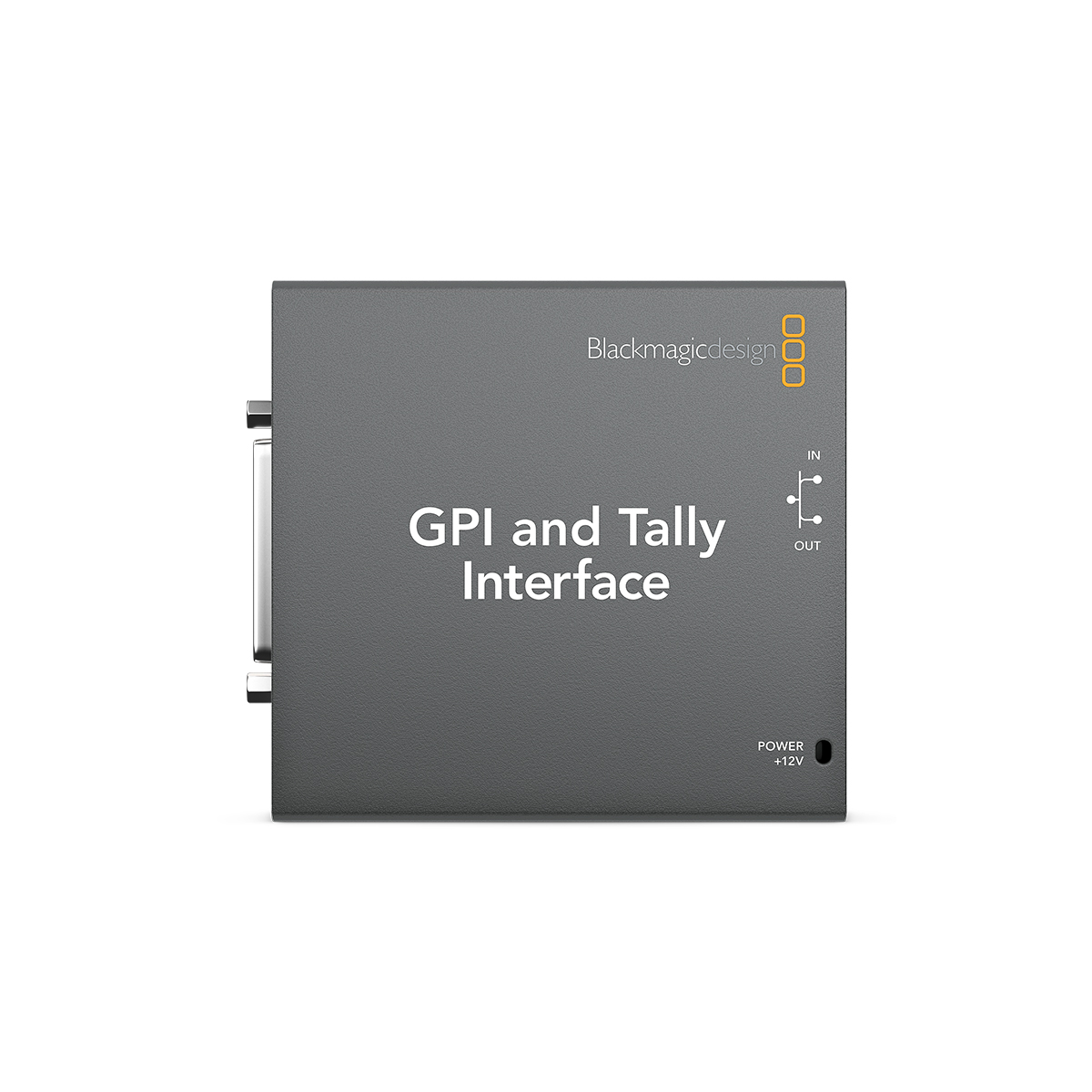

Blackmagic GPI and Tally Interface
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.
- Displays tallies for indicating the on-air status of video signals
- 8 contact closure inputs & 8 contact closure outputs
- Compatible with ATEM switchers and Videohub routers
- Connect to multiple interfaces offering enhance flexibility in operation
| Connections | dd |

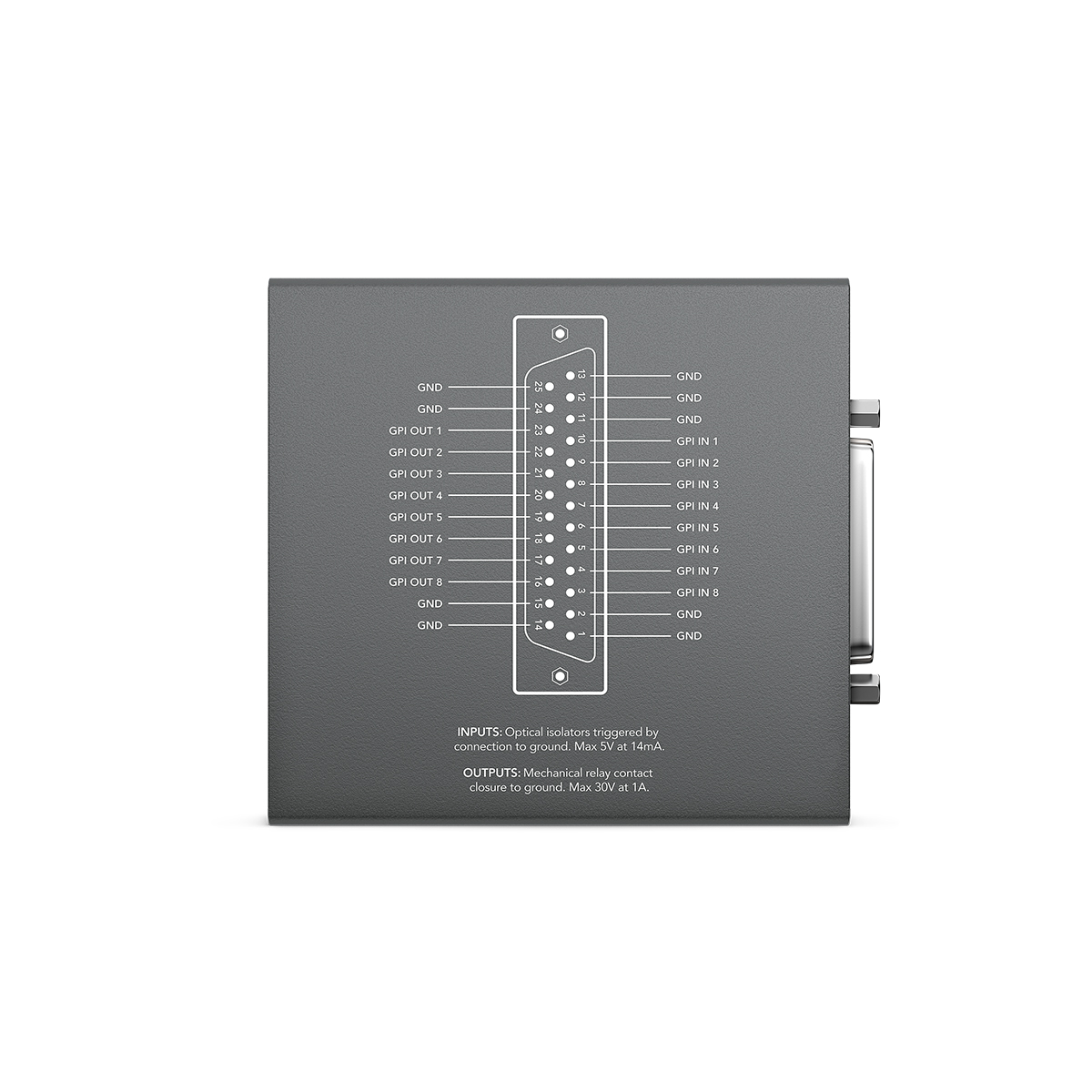

| Contact Closure | 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs |
| Inputs | Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) |
| Outputs | Mechanical relay contact closure to ground (maximum 30 V @ 1 A) |
| Ethernet | 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment |
| Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates |
| Extras | |
| Software Included | Configured via ATEM Switcher utility |
| Firmware Upgrade | Firmware built into software driver. Loaded at system startup or via updater software |
| Operating System | Microsoft Windows 7 and Apple Mac OS X |
| Power Supply | 12 V power supply included with international socket adapters for all countries |
- Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
- 12 V Power Supply
- 1-Year Limited Warranty
Specifications
Additional information
| Weight | 11 kg |
|---|---|
| Dimensions | 14,47 × 18,8 × 6,47 cm |
